30194 - Toro 36" ProLine Walk-Behind Mower, Gear Drive, 13hp (SN: 220000001 - 220999999) (2002) UPPER HANDLE ASSEMBLY Parts Diagram

36" ProLine Walk-Behind Mower, Gear Drive, 13hp

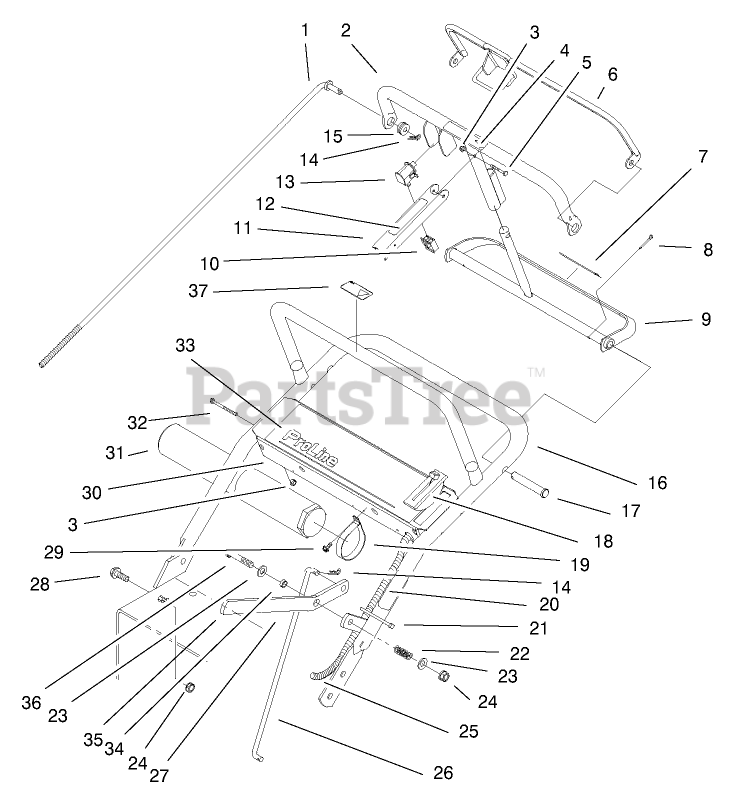

UPPER HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 98-3282

ROD-CONTROL

$46.99

$

Usually ships in 3-6 days

0

2

Toro 95-5522-03

BAR-CONTROL

$278.99

$

Usually ships in 3-6 days

0

3

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 82-2290

DECAL

$12.99

$

Usually ships in 3-6 days

0

5

Toro 32105-1

SCREW-SHH

$3.49

$

In Stock, Qty 7

0

6

Toro 98-3289-03

BAIL ASM
(Superseded to 82-7680-03)

$152.99

$

Usually ships in 3-6 days

0

7

Toro 82-2280

DECAL

$10.99

$

In Stock, only 1 left!

0

8

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

9

Toro 99-8501-03

CONTROL-PIVOT
(Superseded to 106-5477-03)

$202.99

$

Usually ships in 3-6 days

0

10

Toro 218-595

CONNECTOR-BODY

$

$

Not available

11

Toro 98-3261-03

LEVER-BRAKE, PARKING

$37.99

$

Usually ships in 3-6 days

0

12

Toro 98-3266

DECAL

$53.99

$

Usually ships in 3-6 days

0

13

Toro 740275

SWITCH

$20.99

$

In Stock, only 2 left!

0

14

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

15

Toro 237-141

GROMMET-RUBBER

$2.99

$

In Stock, Qty 20+

0

16

Toro 98-3267-01

UPPER HANDLE ASM
(Superseded to 98-3267-03)

$283.99

$

Usually ships in 3-6 days

0

17

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

18

Toro 1-323637

CABLE-THROTTLE

$104.99

$

In Stock, only 2 left!

0

19

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

20

Toro 95-5537

DECAL-ENGAGE, DECK

$10.99

$

Usually ships in 3-6 days

0

21

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

22

Toro 1-303160

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

23

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

25

Toro 98-3258

HARNESS-WIRE

$

$

Not available

26

Toro 98-3279

LINKAGE-DRIVE, BLADE

$34.99

$

Usually ships in 3-6 days

0

27

Toro 98-3287-03

LEVER-ENGAGEMENT, BLADE

$47.99

$

Usually ships in 3-6 days

0

28

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

29

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

30

Toro 1-304259

PANEL-CONTROL

$

$

Not available

31

Toro 74-0720

TUBE-MANUAL

$23.99

$

Usually ships in 3-6 days

0

32

Toro 32105-14

SCREW-SHH

$3.49

$

Usually ships in 3-6 days

0

33

Toro 95-5437

DECAL-PANEL, CONTROL

$

$

Not available

34

Toro 99-8509

SPACER

$14.99

$

Usually ships in 3-6 days

0

35

Toro 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 6

0

36

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

37

Toro 98-4387

DECAL-PROTECTION, EAR

$7.49

$

In Stock, Qty 8

0
