30194 - Toro 36" ProLine Walk-Behind Mower, Gear Drive, 13hp (SN: 099000201 - 099999999) (1999) ENGINE & FUEL TANK Parts Diagram

36" ProLine Walk-Behind Mower, Gear Drive, 13hp

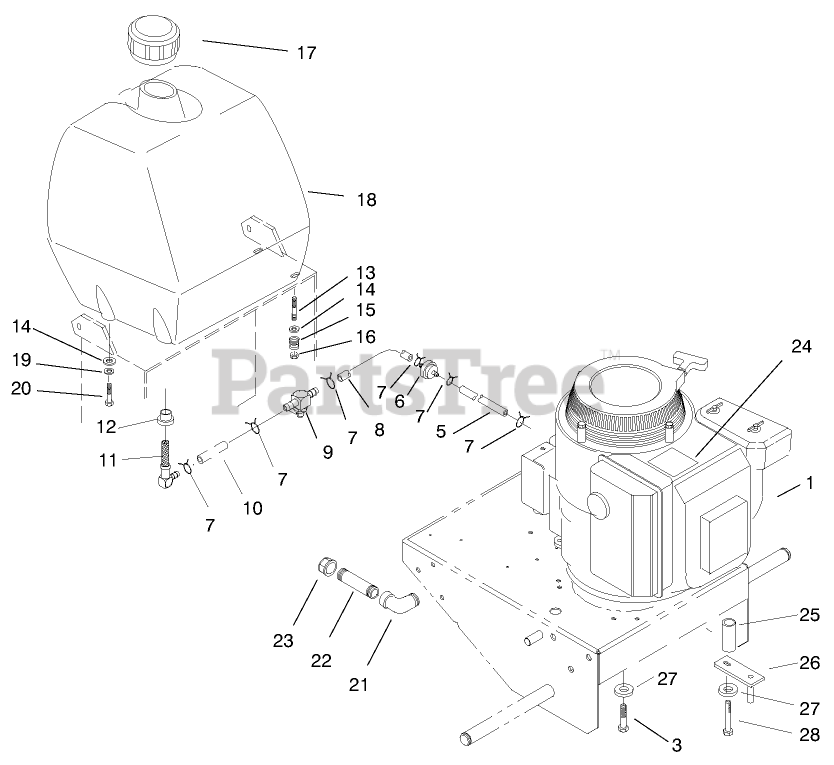

ENGINE & FUEL TANK Parts Diagram

  • Title
1

Engine. 13 Kohler Model Cv13t-21518

$

$

Not available

3

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

5

Toro E603954

Hose-Fuel
(Superseded to 1-603954)

$8.99

$

In Stock, only 1 left!

0

6

Toro E303197

Filter
(Superseded to 139-5916)

$9.49

$

In Stock, Qty 14

0

7

Toro E303077

Clamp
(Superseded to 1-303077)

$1.49

$

In Stock, Qty 8

0

8

Toro E603776

Fuel-Line
(Superseded to 1-603776)

$

$

Not available

9

Toro E603770

Valve-Gas
(Superseded to 1-603770)

$7.99

$

In Stock, Qty 8

0

10

Toro E603955

Fuel-Line
(Superseded to 1-603955)

$5.49

$

Usually ships in 3-6 days

0

11

Toro E543277

Elbow
(Superseded to 1-543277)

$11.99

$

In Stock, Qty 8

0

12

Toro E513645

Bushing
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

13

Toro E633023

Stud
(Superseded to 1-633023)

$6.49

$

Usually ships in 3-6 days

0

14

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro E633349

Spring-Fuel Tank
(Superseded to 1-633349)

$5.49

$

Usually ships in 3-6 days

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 14

0

17

Toro E513508

Cap-Fuel Tank
(Superseded to 1-513508)

$26.99

$

In Stock, only 1 left!

0

18

Toro E323551

Tank
(Superseded to 106-0730)

$

$

Not available

19

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

20

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro E303431

Elbow
(Superseded to 1-303431)

$

$

Not available

22

Toro E323326

Nipple
(Superseded to 1-323326)

$

$

Not available

23

Toro E543233

Cap
(Superseded to 1-543233)

$17.99

$

Usually ships in 3-6 days

0

24

Toro 63-8440

DECAL-SURFACE, HOT

$

$

Not available

25

Toro E323228

Spacer
(Superseded to 1-323228)

$11.99

$

In Stock, only 3 left!

0

26

Toro E322110

Guide-Belt
(Superseded to 1-322110)

$12.99

$

In Stock, Qty 8

0

27

Toro E303334

Washer-Lock
(Superseded to 1-303334)

$2.99

$

In Stock, only 4 left!

0

28

Toro E809065

Screw-HH
(Superseded to 1-809065)

$2.99

$

Usually ships in 3-6 days

0
