30193 - Toro 36" ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 200000001 - 200999999) (2000) 36" DECK ASSEMBLY Parts Diagram

36" ProLine Walk-Behind Mower, Gear Drive, 12.5hp

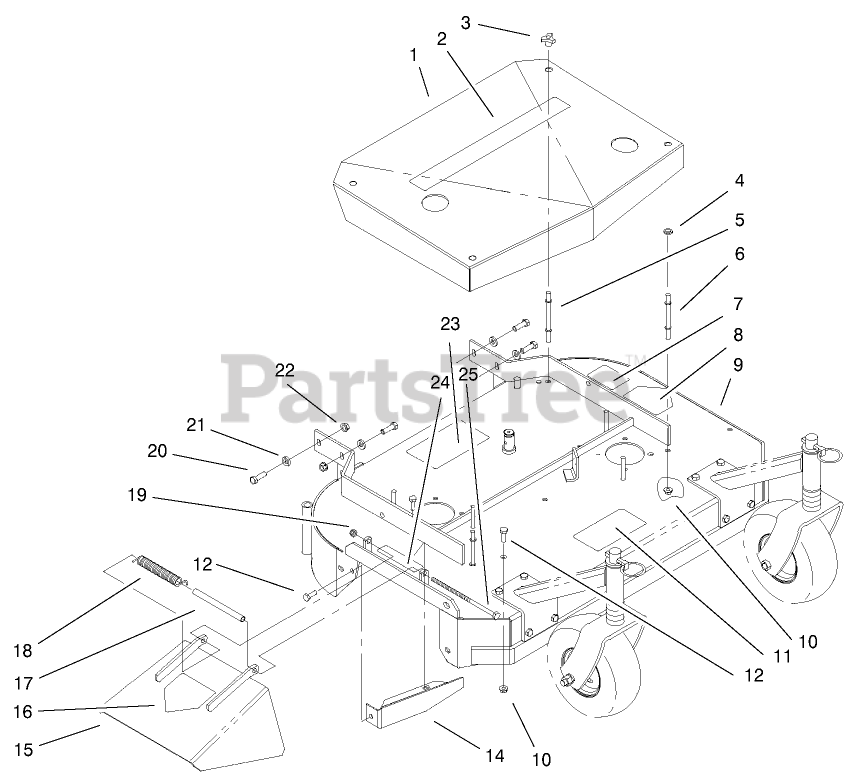

36" DECK ASSEMBLY Parts Diagram

  • Title
1

Toro E304258

Belt Cover w/Decal
(Superseded to 1-304258)

$

$

Not available

2

Toro E323566

Decal-Proline 36
(Superseded to 95-5436)

$27.99

$

Usually ships in 3-6 days

0

3

Toro E323385

Knob
(Superseded to 1-323385)

$5.49

$

In Stock, Qty 20+

0

4

Toro E323417

Washer
(Superseded to 1-323417)

$3.49

$

In Stock, Qty 20+

0

5

Toro E303536

Stud-Belt Shield(Long)
(Superseded to 1-303536)

$7.99

$

In Stock, Qty 20+

0

6

Toro E303537

Stud-Belt Shield(Short)
(Superseded to 1-303537)

$6.49

$

In Stock, Qty 20+

0

7

Toro E323659

Decal-Torque
(Superseded to 98-5130)

$30.99

$

Usually ships in 3-6 days

0

8

Toro 43-8480

DECAL-DANGER

$6.49

$

In Stock, Qty 6

0

9

Toro E304273

36" Deck w/Decals
(Superseded to 1-304273)

$2709.99

$

Usually ships in 3-6 days

0

10

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 1 left!

0

12

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

14

Toro E302189

Baffle
(Superseded to 1-302189-01)

$47.99

$

Usually ships in 3-6 days

0

15

Toro E304256

Discharge Chute w/Decal
(Superseded to 1-304256)

$212.99

$

In Stock, only 1 left!

0

16

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 12

0

17

Toro E323572

Spacer
(Superseded to 98-3281)

$

$

Not available

18

Toro E323575

Spring-Deflector
(Superseded to 98-3280)

$27.99

$

Usually ships in 3-6 days

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

20

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro E303327

Washer
(Superseded to 98-5975)

$3.49

$

In Stock, Qty 20+

0

22

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

23

Toro 98-3296

DECAL-ROUTING, BELT

$20.99

$

Usually ships in 3-6 days

0

24

Toro 67-5360

DECAL-DANGER

$13.99

$

In Stock, only 1 left!

0

25

Toro E800289

Screw-HH
(Superseded to 322-50)

$6.49

$

In Stock, only 4 left!

0
