30192 - Toro ProLine Walk-Behind Mower, Hydro Drive, 20hp (SN: 200000001 - 200999999) (2000) STARTER SYSTEM Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 20hp

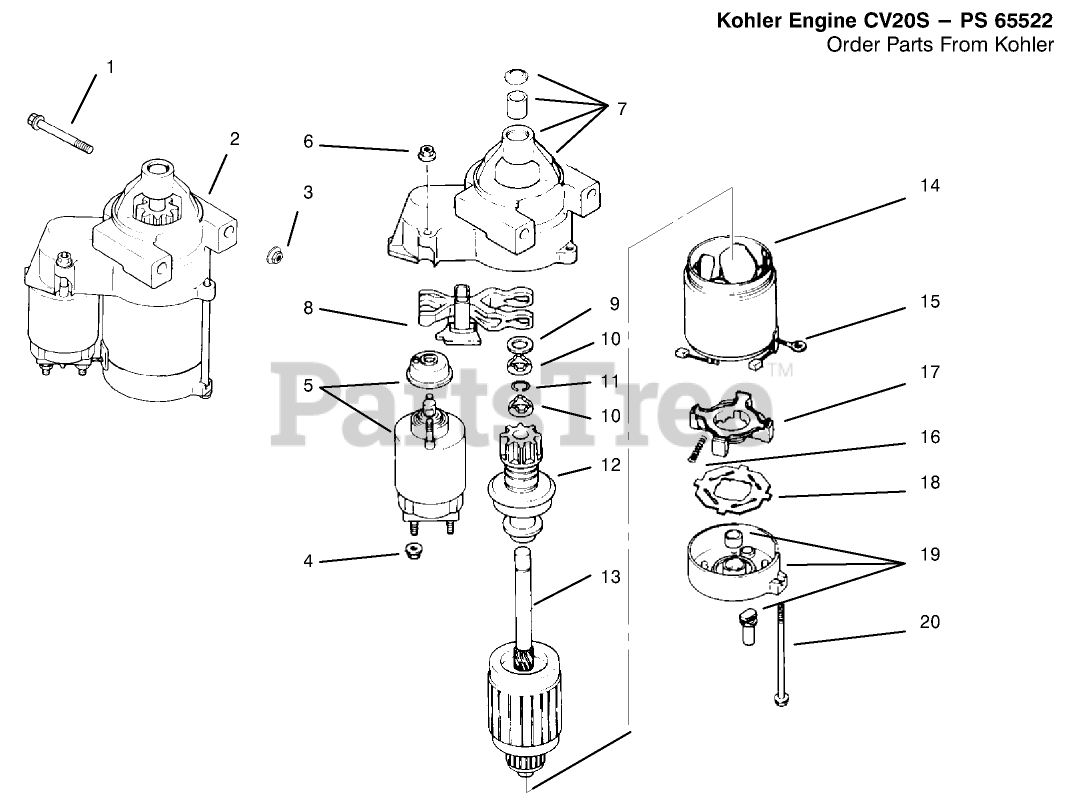

STARTER SYSTEM Parts Diagram

  • Title

1

Kohler M-0839080

Scew

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

2

1209803

Starter Solenoid Shift (Incl. Ref. #4-20)

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

3

Kohler M-0841080

Nut
(Superseded to M-841080)

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$2.49

$

Usually ships in 2-5 days

0

4

5210010

Nut

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

5

1208102

Cap Drive End

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

6

5210009

Nut

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

7

5243502

Solenoid

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

8

1209010

Lever Starter Drive

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

9

2475584

Washer

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

10

5210008

Nut

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

11

5214103

Ring-Retainer

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

12

1223901

Drive Pinion

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

13

1217003

Armature

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

14

1247101

Frame

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

15

5222101

Kit-Brush (Incl. Ref. #16)

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

16

5208909

Spring Brush

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

17

5232303

Holder-Brush

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

18

5216801

Insulator

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

19

1230101

Cap-Commutator End

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

20

5221105

Bolt

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available
