30192 - Toro ProLine Walk-Behind Mower, Hydro Drive, 20hp (SN: 200000001 - 200999999) (2000) BLOWER HOUSING & BAFFLES Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 20hp

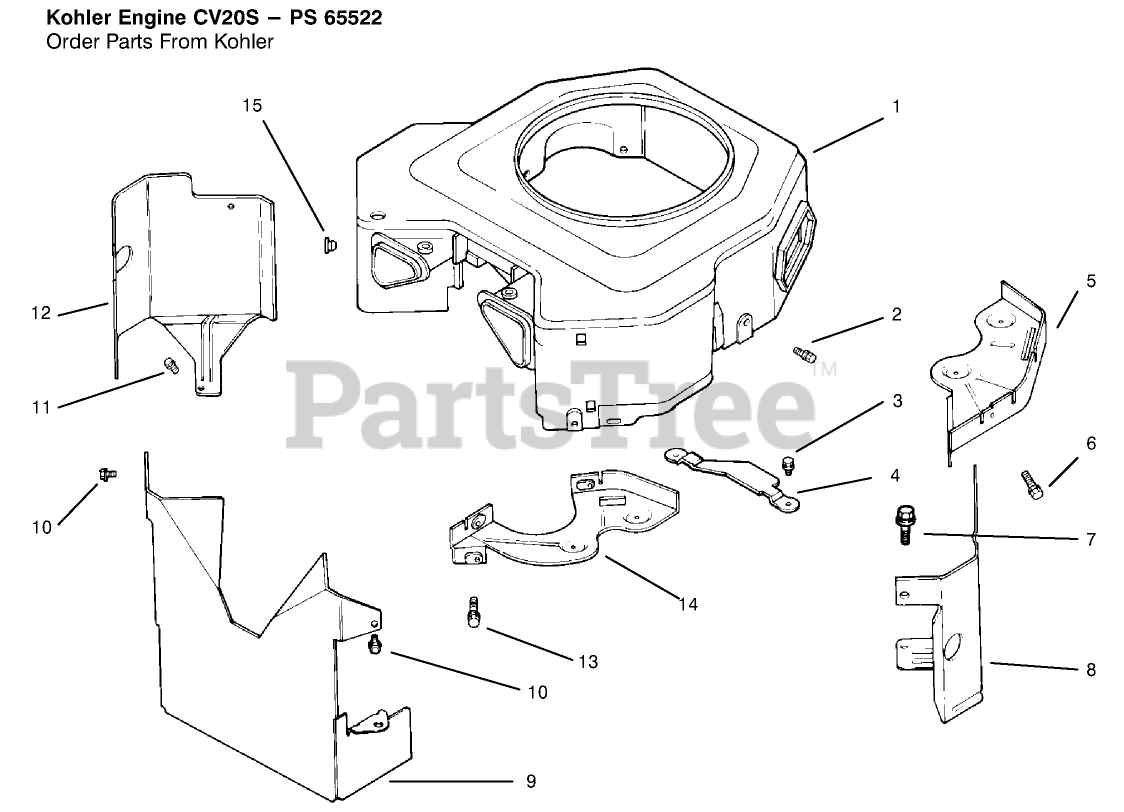

BLOWER HOUSING & BAFFLES Parts Diagram

  • Title

1

Housing-Blower

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

3

Kohler SM-0545016

Screw
(Superseded to SM-545016)

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$2.49

$

In Stock, Qty 15

0

4

2431405

Guard-Flywheel

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

5

2414602

Plate-Backing #2 Side

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

6

Kohler SM-0545020

Screw
(Superseded to 25 086 473-S)

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$2.49

$

In Stock, Qty 20+

0

7

Kohler M-0551016

Screw
(Superseded to M-551016-S)

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$2.49

$

In Stock, only 2 left!

0

8

Kohler 24 063 20

Baffle-Cylinder, #2
(Superseded to 24 063 88-S)

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$28.99

$

Usually ships in 2-5 days

0

9

2406329

Baffle-Valley

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

10

Kohler M-0549010

Screw
(Superseded to M-545010-S)

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$4.49

$

In Stock, only 2 left!

0

11

Kohler M-0549016

Screw

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

12

2406319

Baffle-Cylinder #1 Side

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

14

2414608

Plate-Backing #1

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

15

Kohler 24 100 02

Nut-Plastic
(Superseded to 24 100 02-S)

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$2.49

$

Usually ships in 2-5 days

0

2411312

Decal, HP

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

2411312

Decal, HP

Note: Not illustrated

$

$

Not available
