30192 - Toro ProLine Walk-Behind Mower, Hydro Drive, 20hp (SN: 200000001 - 200999999) (2000) AIR CLEANER FILTRATION Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 20hp

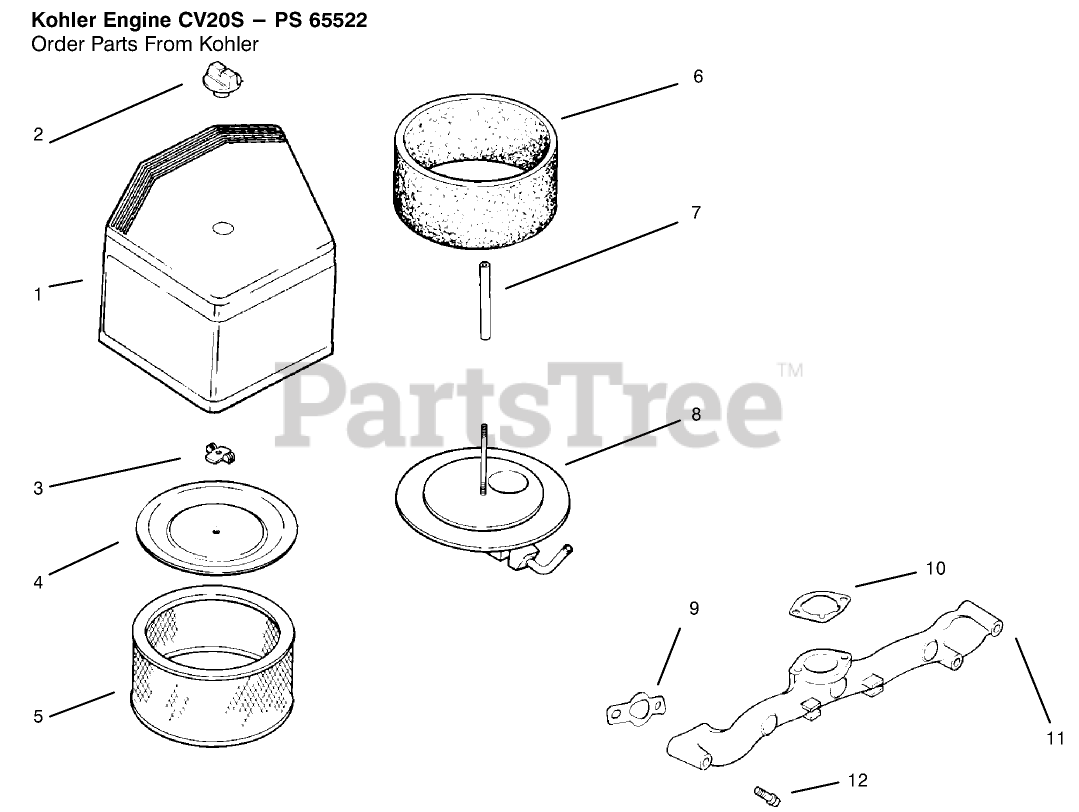

AIR CLEANER FILTRATION Parts Diagram

  • Title

1

2474310

Kit-Air Cleaner Cover (Incl. Ref.# 2)

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

2

2534102

Knob-Cover

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

3

Kohler 12 100 01

Wingnut
(Superseded to 12 100 01-S)

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$3.99

$

In Stock, only 2 left!

0

4

5208204

Cover-Element

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

5

4508301

Precleaner

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

6

4508302

Element

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

7

2403204

Seal

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

8

2405402

Elbow-Air Cleaner

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

9

Kohler 24 041 01

Gasket-Intake, Manifold
(Superseded to 24 041 01-S)

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$2.99

$

In Stock, Qty 7

0

10

2404114

Gasket-A/C Base

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

11

2416406

Manifold-Intake

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

12

Kohler M-0639055

Screw
(Superseded to M-639055)

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$2.49

$

In Stock, Qty 20+

0

2411314

Decal-Maintenance

Note: KOHLER ENGINE CV20S-PS 65522 Order Parts From Kohler.

$

$

Not available

2411314

Decal-Maintenance

Note: Not illustrated

$

$

Not available
