30191 - Toro ProLine Walk-Behind Mower, Hydro Drive, 20hp (SN: 069000372 - 699999999) (1996) HEAD/VALVE/BREATHER Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 20hp

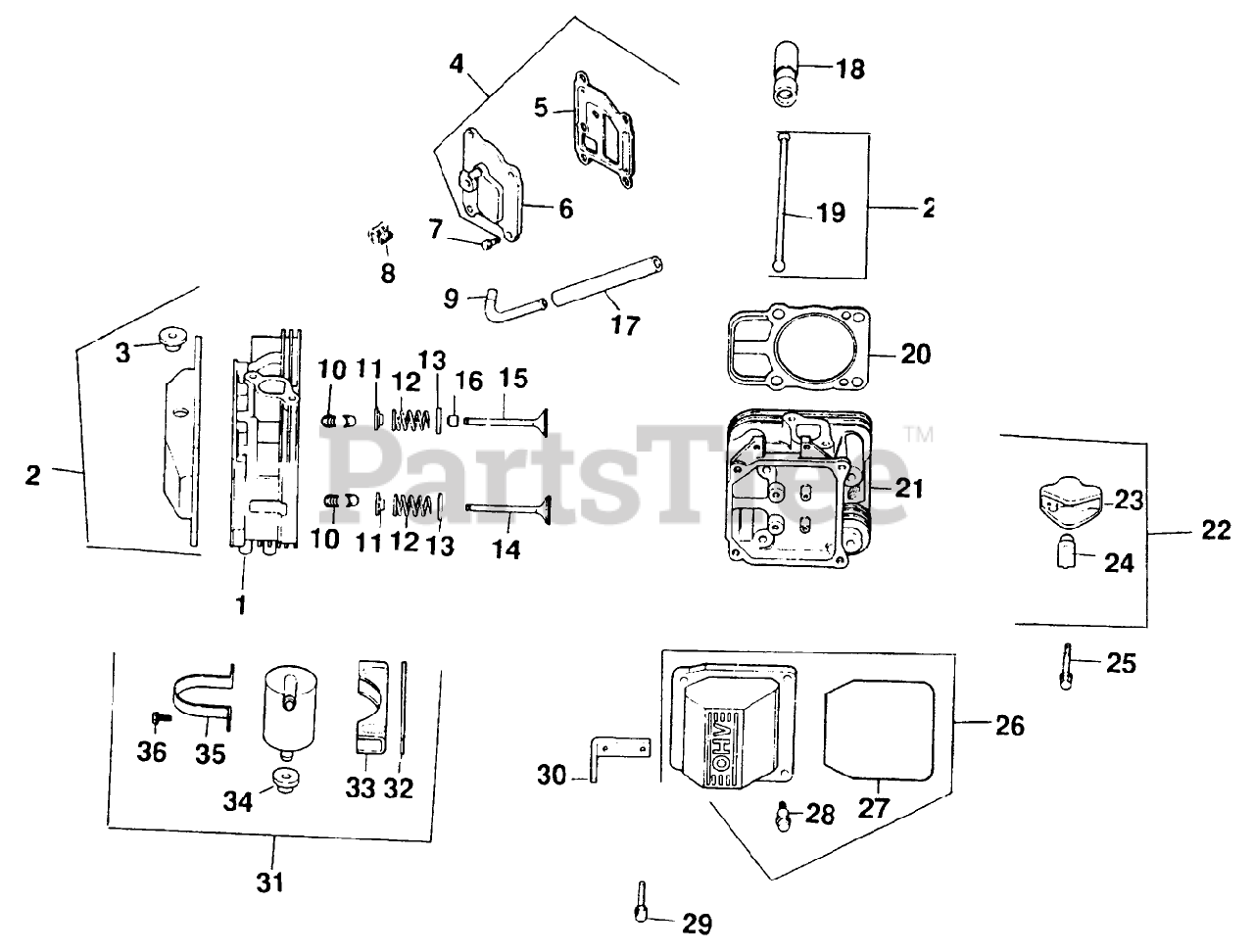

HEAD/VALVE/BREATHER Parts Diagram

  • Title

1

2431811

#1 Cyl. Head Asm

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$

$

Not available

2

2475576

Kit-Valve Cover/Breather (Incl. Ref. #3 & 27-28)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$

$

Not available

4

Kohler 24 033 03

Kit-Breather Cover Gasket (Incl. Ref. #5-6)
(Superseded to 24 033 03-S)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$32.99

$

In Stock, only 1 left!

0

3

2531302

Grommet-Rubber

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$

$

Not available

5

Kohler 24 041 23

Gasket-Breather
(Superseded to 24 041 23-S)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$13.99

$

In Stock, Qty 11

0

6

2409615

Cover-Breather

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$

$

Not available

7

Kohler M-0645020

Screw
(Superseded to M-645020)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$2.49

$

In Stock, only 1 left!

0

8

Kohler X-75-23

Plug
(Superseded to X-75-23-S)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$3.49

$

In Stock, only 2 left!

0

9

2429401

Fitting

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$

$

Not available

10

Kohler 12 755 03

Retainer Kit
(Superseded to 12 755 03-S)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$5.99

$

Usually ships in 2-5 days

0

11

Kohler 12 173 01

Cap-Spring, Valve
(Superseded to 25 173 28-S)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$8.49

$

In Stock, Qty 5

0

12

Kohler 24 089 02

Spring-Valve
(Superseded to 24 089 02-S)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$7.99

$

Usually ships in 2-5 days

0

13

Kohler 235011

Retainer-Spring
(Superseded to 235011-S)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$6.49

$

In Stock, only 2 left!

0

14

Kohler 24 016 01

Valve-Exhaust
(Superseded to 24 016 01-S)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$15.99

$

In Stock, only 4 left!

0

2401602

Valve-Exhaust(.25)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$

$

Not available

2401602

Valve-Exhaust(.25)

Note: Not illustrated

$

$

Not available

15

Kohler 24 017 01

Valve-Intake
(Superseded to 24 017 01-S)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$30.99

$

In Stock, Qty 17

0

Kohler 24 017 02

Valve-Intake (.25)
(Superseded to 24 017 02-S)

Note: Not illustrated

$

$

Not available

Kohler 24 017 02

Valve-Intake (.25)
(Superseded to 24 017 02-S)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$

$

Not available

16

Kohler 24 032 05

Seal-Stem, Valve
(Superseded to 24 032 05-S)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$11.99

$

In Stock, Qty 6

0

17

2432603

Hose

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$

$

Not available

18

1235101

Lifter-Valve

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$

$

Not available

19

Kohler 24 411 05

Rod-Push
(Superseded to 24 411 05-S)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$5.49

$

In Stock, Qty 9

0

20

2404108

Gasket-Cylinder Head

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$

$

Not available

22

Kohler 24 755 66

Kit-Valve Train (Incl. Ref. #19 & 23-24)
(Superseded to 24 755 66-S)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$45.99

$

In Stock, only 3 left!

0

21

2431812

#2 Cyl. Head Asm,

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$

$

Not available

23

2418601

Arm-Rocker

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$

$

Not available

24

Kohler 24 599 01

Pivot-Arm, Rocker
(Superseded to 24 599 02-S)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$2.49

$

In Stock, Qty 8

0

25

Kohler M-0640034

Screw

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$

$

Not available

26

Kohler 24 755 74

Kit-Valve Cover (Incl. Ref. #27-28)
(Superseded to 24 755 74-S)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$35.99

$

In Stock, only 2 left!

0

27

2415311

"O"Ring

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$

$

Not available

28

2408632

Screw

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$

$

Not available

29

1208616

Screw

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$

$

Not available

30

2444501

Strap-Lifting

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$

$

Not available

31

2475557

Kit-Breather Separator (Incl. Ref. #32-36)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$

$

Not available

31

2475557

Kit-Breather Separator (Incl. Ref. #32-36)

Note: Not illustrated

$

$

Not available

32

2411212

Spacer

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$

$

Not available

33

2412644

Bracket

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$

$

Not available

34

2431302

Grommet

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$

$

Not available

35

2444502

Strap-Lifting

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$

$

Not available

36

Kohler SM-0545016

Screw
(Superseded to SM-545016)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$2.49

$

In Stock, Qty 15

0
