30191 - Toro ProLine Walk-Behind Mower, Hydro Drive, 20hp (SN: 069000372 - 699999999) (1996) EXHAUST Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 20hp

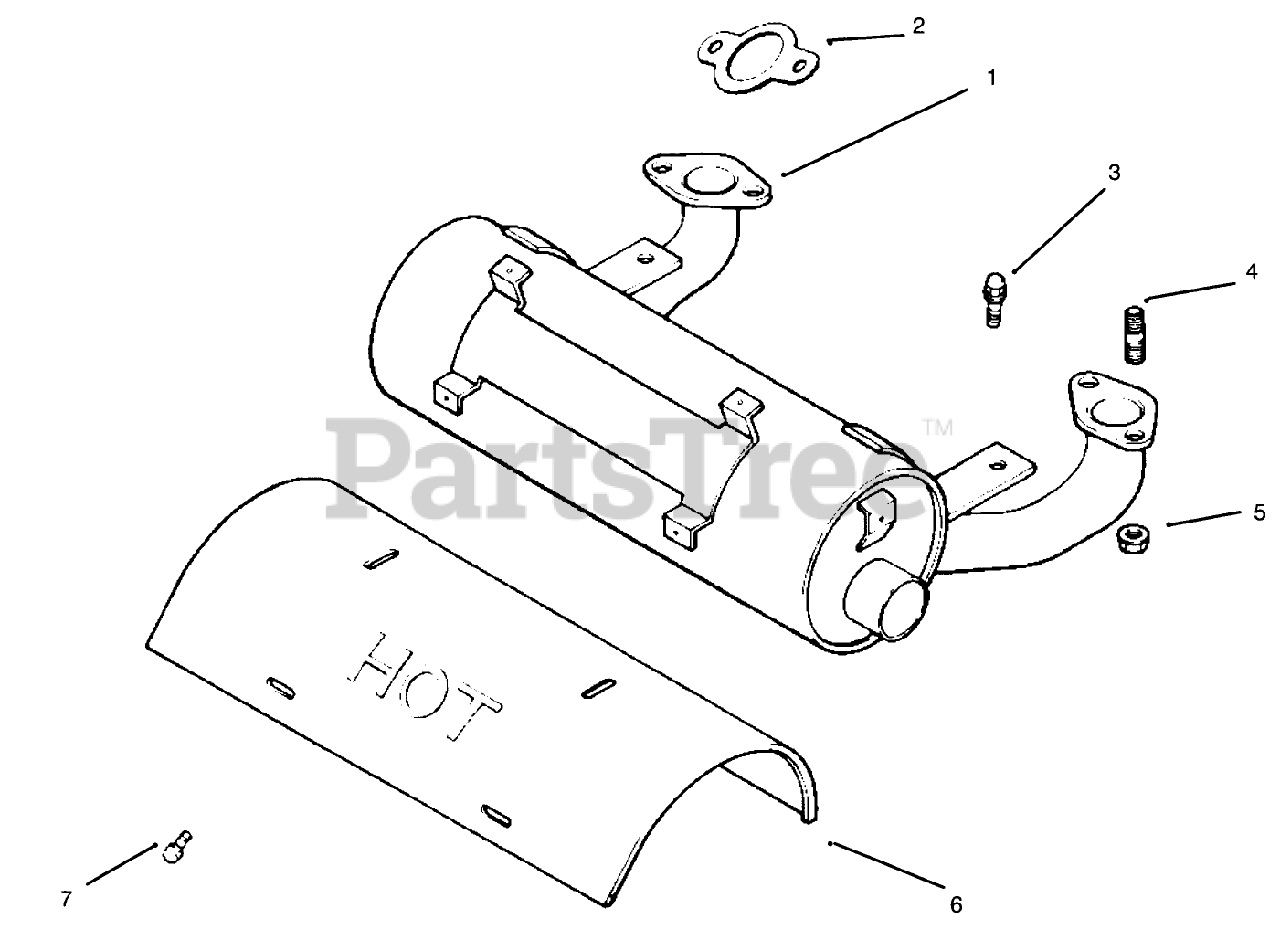

EXHAUST Parts Diagram

  • Title

1

2406808

Muffler

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$

$

Not available

2

Kohler 24 041 02

Gaskt-Exhaust
(Superseded to 24 041 02-S)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$

$

Not available

3

Kohler SM-0645020

Screw
(Superseded to M-645020)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$2.49

$

In Stock, only 1 left!

0

4

Kohler M-0829033

Stud
(Superseded to M-829033)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$3.99

$

In Stock, only 2 left!

0

5

Kohler M-0841080

Nut
(Superseded to M-841080)

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$2.49

$

In Stock, only 1 left!

0

6

2428107

Duct-Heat Shield

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$

$

Not available

7

2508640

Screw

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$

$

Not available

2478205

Miniblock

Note: Not illustrated

$

$

Not available

2478205

Miniblock

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$

$

Not available

2475503

Gasket Set

Note: KOHLER ENGINE CV20S-PS65522, Order Parts From Kohler.

$

$

Not available

2475503

Gasket Set

Note: Not illustrated

$

$

Not available
