30191 - Toro ProLine Walk-Behind Mower, Hydro Drive, 20hp (SN: 069000001 - 690000371) (1996) HYDRAULIC PUMP & LINKAGE ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 20hp

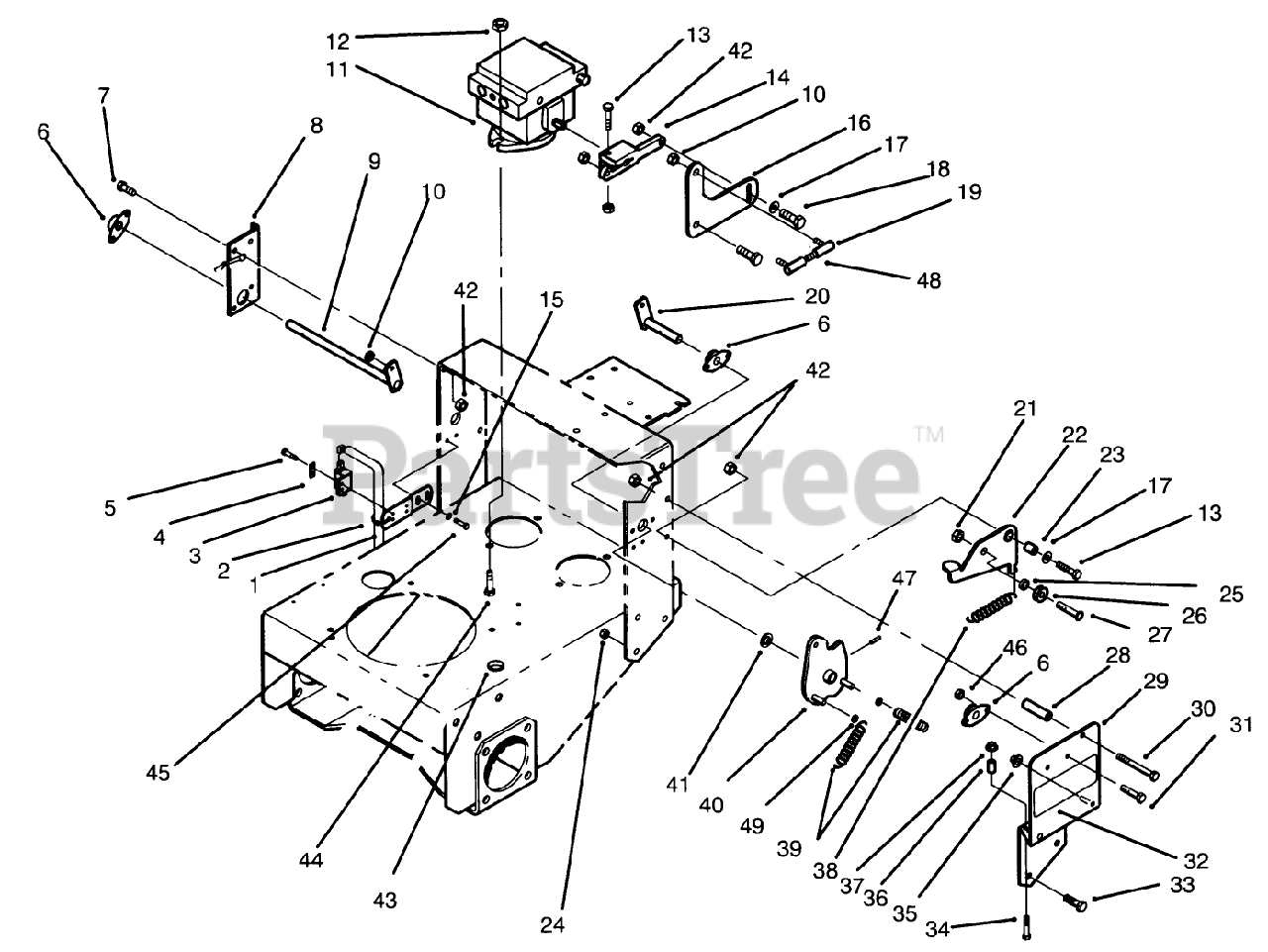

HYDRAULIC PUMP & LINKAGE ASSEMBLY Parts Diagram

  • Title

1

Toro 82-4580

NEUTRAL BRACKET B
(Superseded to 82-4580-03)

$

$

Not available

2

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

3

Toro 65-7410

SWITCH-POLE, SINGLE
(Superseded to 1-513051)

$18.99

$

In Stock, Qty 20+

0

4

Toro 82-4570

PLATE-SWITCH

$14.99

$

Usually ships in 3-6 days

0

5

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 8

0

6

Toro 82-4130

SIDE FLANGE BEARING ASM

$10.99

$

Usually ships in 3-6 days

0

7

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 82-4210

Bracket-Bushing
(Superseded to 82-4210-01)

$

$

Not available

9

Toro 82-4290

RH LEVER WA

$

$

Not available

10

Toro 3296-13

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

11

Toro 82-8220

HYDRAULIC PUMP

$2816.99

$

Usually ships in 3-6 days

0

12

Toro 32128-42

NUT-HF

$1.49

$

In Stock, only 3 left!

0

13

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 82-3790

ARM-PUMP

$

$

Not available

15

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 82-4230

FOLLOWER ARM B

$

$

Not available

17

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

18

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 2411-34

JOINT-BALL

$30.99

$

Usually ships in 3-6 days

0

20

Toro 82-4270

LH LEVER WA

$

$

Not available

21

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

22

Toro 82-4330

Detent Arm Assembly L.H.
(Superseded to 82-4330-01)

$

$

Not available

Toro 82-4340

Detent Arm Assembly R.H.
(Superseded to 82-4340-01)

Note: Not illustrated

$

$

Not available

23

Toro 82-4370

BUSHING-ARM, DETENT

$11.99

$

Usually ships in 3-6 days

0

24

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

25

Toro 82-4240

SPACER-BEARING

$6.99

$

Usually ships in 3-6 days

0

26

Toro 251-259

BEARING-BALL

$16.99

$

In Stock, only 4 left!

0

27

Toro 3274-32

SCREW-HSBH

$5.49

$

Usually ships in 3-6 days

0

28

Toro 82-3920

STOP-REVERSE

$

$

Not available

29

Toro 82-4090

LEFT BRACKET WA R

$95.99

$

Usually ships in 3-6 days

0

Toro 82-4070

RIGHT BRACKET WA R

Note: Not illustrated

$

$

Not available

30

Toro 322-14

SCREW-HH

$2.99

$

In Stock, Qty 8

0

31

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Toro 82-4600

DECAL-HYDRO

$22.99

$

Usually ships in 3-6 days

0

33

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

34

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 10

0

35

Toro 32112-11

NUT-PUSH

$1.49

$

In Stock, Qty 6

0

36

Toro 80-0650

SPACER-TUBULAR

$2.99

$

Usually ships in 3-6 days

0

37

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

38

Toro 82-4160

SPRING-DETENT
(Superseded to 105-1210)

$21.99

$

Usually ships in 3-6 days

0

39

Toro 86-4760

SPRING-EXTENSION

$

$

Not available

40

Toro 93-1371

LH PIVOT ARM WA RO

$116.99

$

Usually ships in 3-6 days

0

Toro 93-1372

RH PIVOT ARM WA RO

Note: Not illustrated

$

$

Not available

41

Toro 257-5

WASHER-THRUST

$2.49

$

Usually ships in 3-6 days

0

42

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

43

Toro 237-124

GROMMET

$2.99

$

In Stock, only 1 left!

0

44

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

45

Toro 32144-3

Screw
(Superseded to 32144-10)

$4.99

$

In Stock, Qty 9

0

46

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

47

Toro 32121-4

PIN-ROLL, SLOTTED

$3.99

$

Usually ships in 3-6 days

0

48

Toro 82-4120

BALL JOINT ROD

$

$

Not available

49

Toro 32121-11

PIN-ROLL

$0.99

$

In Stock, only 2 left!

0
