30191 - Toro ProLine Walk-Behind Mower, Hydro Drive, 20hp (SN: 059000001 - 059999999) (1995) HEAD/VALVE/BREATHER Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 20hp

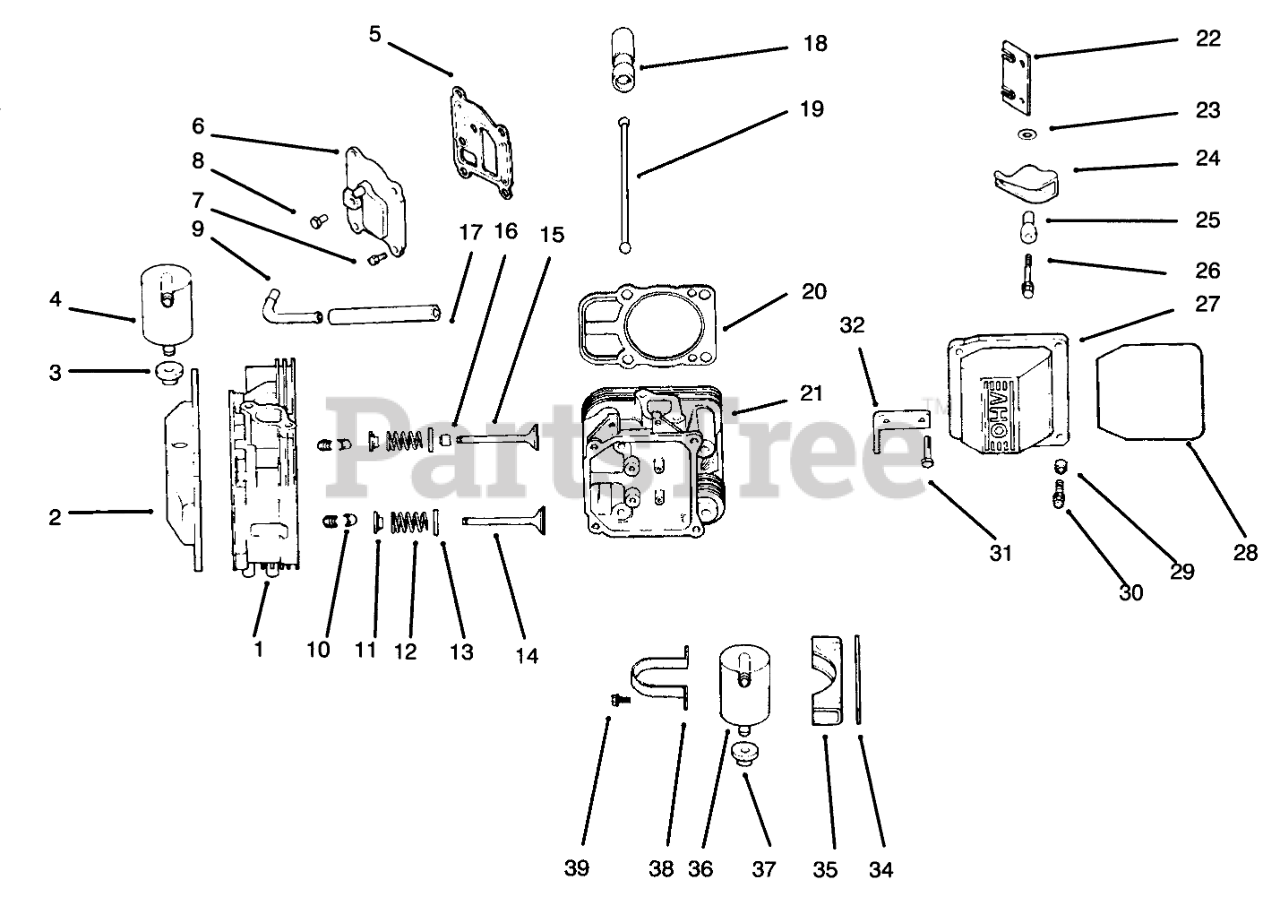

HEAD/VALVE/BREATHER Parts Diagram

  • Title

1

24_318_11

Head ASM-#1 Cylinder

$

$

Not available

2

24_755_76

Kit-Valve Cover/Breather (Incl. Ref. #3 & 28-30)

$

$

Not available

24_033_03

Kit-Breather Cover/Gasket (Incl. Ref. #5-6)

Note: Not illustrated

$

$

Not available

3

Toro 25_313_02

Grommet-Rubber

$

$

Currently unavailable

4

Toro 24_755_20

Kit-Breather (Incl. Ref. #3)

$

$

Currently unavailable

5

Toro 24_041_23

Gasket-Breather

$

$

Currently unavailable

6

Toro 24_096_15

Cover-Breather

$

$

Currently unavailable

7

Kohler SM-0645020

Screw
(Superseded to M-645020)

$2.49

$

In Stock, only 1 left!

0

8

Kohler X-75-23

Plug
(Superseded to X-75-23-S)

$3.49

$

In Stock, only 2 left!

0

9

24_294_01

Fitting

$

$

Not available

10

Toro 12_755_03

Kit-Retainer

$

$

Currently unavailable

11

Toro 12_173_01

Cap-Valve Spring

$

$

Currently unavailable

12

Toro 24_089_02

Spring-Valve

$

$

Currently unavailable

13

Kohler 235011

Retainer-Spring
(Superseded to 235011-S)

$6.49

$

In Stock, only 1 left!

0

14

Toro 24_016_01

Valve-Exhaust (Std)

$

$

Currently unavailable

Toro 24_016_02

Valve-Exhaust (.25)

Note: Not illustrated

$

$

Currently unavailable

15

Toro 24_017_01

Valve-Intake (Std)

$

$

Currently unavailable

Toro 24_017_02

Valve-Intake (.25)

Note: Not illustrated

$

$

Currently unavailable

16

Toro 24_032_05

Seal-Valve Stem

$

$

Currently unavailable

17

24_326_03

Hose

$

$

Not available

18

Toro 12_351_01

Lifter-Valve

$

$

Currently unavailable

19

Toro 24_411_04

Rod-Push

$

$

Currently unavailable

20

Toro 24_041_08

Gasket-Cylinder Head

$

$

Currently unavailable

21

24_318_12

Head ASM-#2 Cylinder

$

$

Not available

22

Toro 24_146_09

Plate-Guide

$

$

Currently unavailable

23

Kohler SM-0631005

Washer

$

$

Not available

24

Toro 24_186_03

Arm-Rocker

$

$

Currently unavailable

25

Toro 24_194_02

Pivot-Rocker Arm

$

$

Currently unavailable

26

Kohler M-0640034

Screw

$

$

Not available

27

Toro 24_755_74

Kit-Valve Cover (Incl. Ref. #28-30)

$

$

Currently unavailable

Toro 24_755_61

Kit-Valve Train (Incl. Ref. #19 & 22-25)

Note: Not illustrated

$

$

Currently unavailable

28

24_153_11

"O"Ring

$

$

Not available

29

24_112_08

Spacer

$

$

Not available

30

Kohler M-0651030

Screw
(Superseded to M-651030-S)

$

$

Not available

31

12_086_16

Screw

$

$

Not available

32

Toro 24_445_01

Strap-Lifting

$

$

Currently unavailable

33

24_755_57

Kit-Breather Separator (Incl. Ref. #34-39)

Note: Not illustrated

$

$

Not available

34

24_112_12

Spacer

$

$

Not available

35

24_126_44

Bracket-Breather Sep

$

$

Not available

36

24_595_02

Separator-Oil Breather

$

$

Not available

37

24_313_02

Grommet-Rubber

$

$

Not available

38

24_445_02

Strap-Breather

$

$

Not available

39

Kohler SM-0545016

Screw
(Superseded to SM-545016)

$2.49

$

In Stock, Qty 15
