30191 - Toro ProLine Walk-Behind Mower, Hydro Drive, 20hp (SN: 059000001 - 059999999) (1995) FUEL TANK, CLUTCH & IDLER ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 20hp

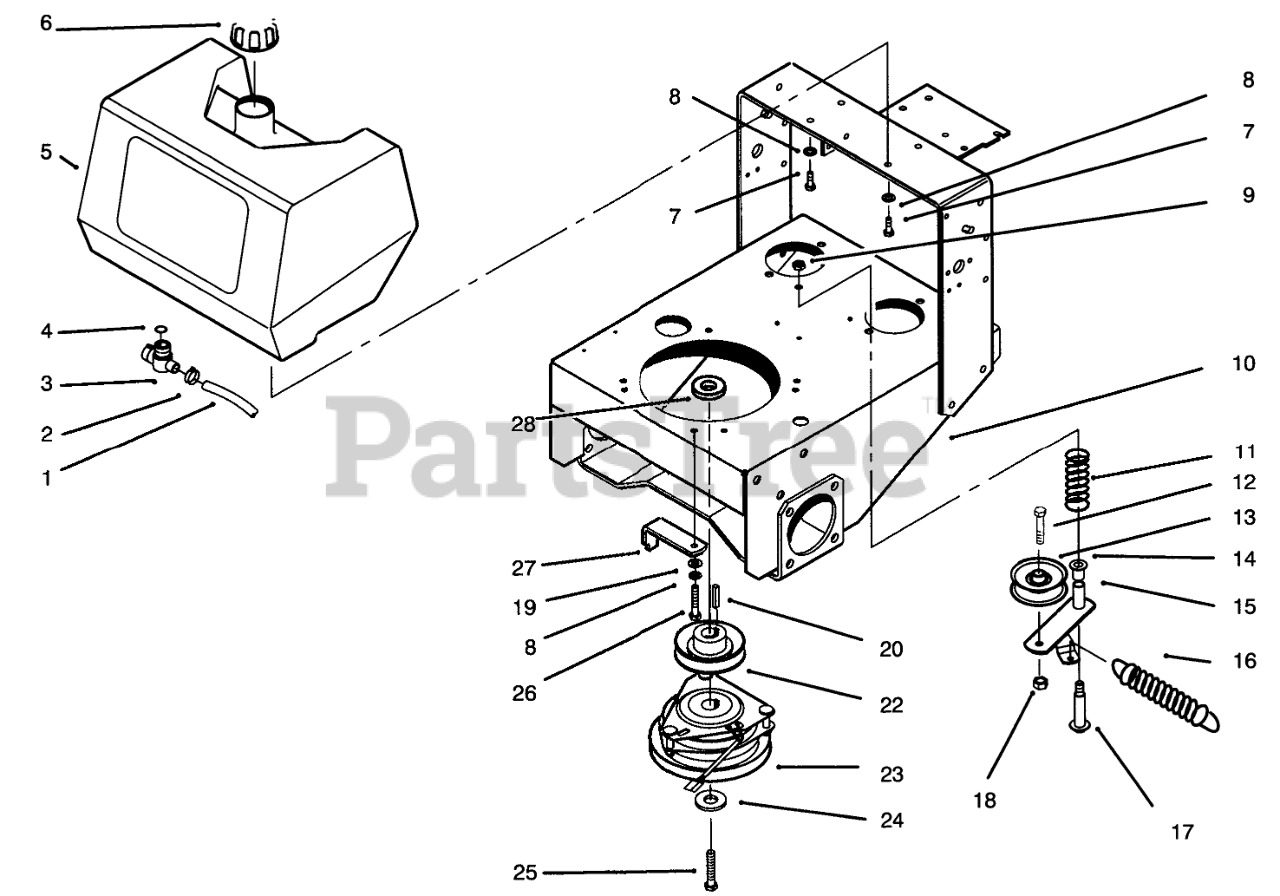

FUEL TANK, CLUTCH & IDLER ASSEMBLY Parts Diagram

  • Title

1

Toro 82-4390

GAS HOSE
(Superseded to 110-1876)

$12.99

$

In Stock, only 2 left!

0

2

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

3

Toro 74-0510

VALVE-FUEL

$39.99

$

In Stock, only 2 left!

0

4

Toro 237-7

O-RING

$9.49

$

Usually ships in 3-6 days

0

5

Toro 82-8440

FUEL TANK

$553.99

$

Usually ships in 3-6 days

0

6

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 9

0

7

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

9

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

10

Toro 82-3900

Frame
(Superseded to 94-9096-01)

$

$

Not available

11

Toro 88-1880

SPRING-COMPRESSION

$51.99

$

Usually ships in 3-6 days

0

12

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 62-4540

PULLEY

$92.99

$

In Stock, only 2 left!

0

14

Toro 256-156

BUSHING-FLANGE

$13.99

$

Usually ships in 3-6 days

0

15

Toro 86-4770

Idler Asm (Incl. Ref. #14)

$112.99

$

Usually ships in 3-6 days

0

16

Toro 68-2190

SPRING

$78.99

$

In Stock, only 1 left!

0

17

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 2 left!

0

18

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

19

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

20

Toro 5-0930

KEY

$

$

Not available

22

Toro 44-5940

Pulley

$151.99

$

Usually ships in 3-6 days

0

23

Toro 54-3200

CLUTCH/BRAKE
(Superseded to 105-2635)

$576.99

$

In Stock, only 1 left!

0

24

Toro 112843

WASHER

$3.49

$

In Stock, Qty 11

0

25

Toro 3212-9

SCREW-HH

$12.99

$

In Stock, only 2 left!

0

26

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

27

Toro 51-4540

Retainer-Clutch
(Superseded to 51-4540-03)

$23.99

$

In Stock, only 4 left!

0

28

Toro 93-1177

SPACER - PULLEY
(Superseded to 104-8556)

$

$

Not available
