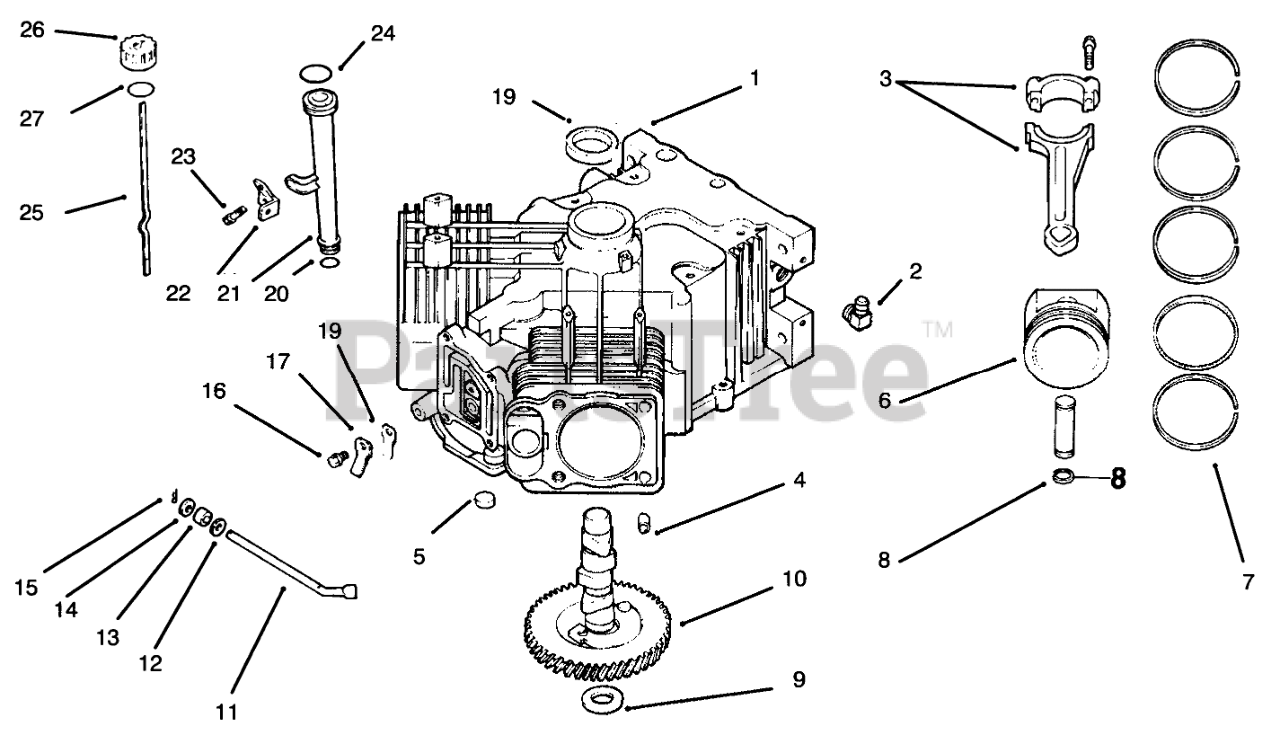

30191 - Toro ProLine Walk-Behind Mower, Hydro Drive, 20hp (SN: 059000001 - 059999999) (1995) CRANKCASE Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 20hp

CRANKCASE Parts Diagram

  • Title

1

24_782_05

Cylinder Block

$

$

Not available

2

24_294_03

Fitting

$

$

Not available

3

Toro 24_067_01

Rod-Connecting (Std)

$

$

Currently unavailable

Toro 24_067_02

Rod-Connecting (.25)

Note: Not illustrated

$

$

Currently unavailable

4

Toro 12_380_03

Pin-Dowel

$

$

Currently unavailable

5

Toro 52_139_09

Plug-Cup

$

$

Currently unavailable

6

Toro 24_874_01

Set-Piston w/Ring (Incl. Ref. #7-8)

$

$

Currently unavailable

Toro 24_874_02

Set-Piston w/Ring (.25)(Incl. Ref. #7-8)

Note: Not illustrated

$

$

Currently unavailable

Toro 24_874_03

Set-Piston w/Ring (.50)(Incl. Ref. #7-8)

Note: Not illustrated

$

$

Currently unavailable

7

Toro 24_108_01

Set-Ring (Std)

$

$

Currently unavailable

Toro 24_108_02

Set-Ring (.25)

Note: Not illustrated

$

$

Currently unavailable

Toro 24_108_03

Set-Ring (.50)

Note: Not illustrated

$

$

Currently unavailable

8

Toro 24_018_01

Retainer-Piston Pin

$

$

Currently unavailable

9

Toro 12_422_09

Shim-Camshaft (Green)

$

$

Currently unavailable

Toro 12_422_13

Shim-Camshaft (Black)

Note: Not illustrated

$

$

Currently unavailable

Toro 12_422_07

Shim-Camshaft (White)

Note: Not illustrated

$

$

Currently unavailable

Toro 12_422_08

Shim-Camshaft (Blue)

Note: Not illustrated

$

$

Currently unavailable

Toro 12_422_10

Shim-Camshaft (Yellow)

Note: Not illustrated

$

$

Currently unavailable

Toro 12_422_11

Shim-Camshaft (Red)

Note: Not illustrated

$

$

Currently unavailable

Toro 12_422_12

Shim-Camshaft (Gray)

Note: Not illustrated

$

$

Currently unavailable

10

Toro 24_012_05

Camshaft

$

$

Currently unavailable

11

Toro 24_144_01

Shaft-Governor Cross

$

$

Currently unavailable

12

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

$2.49

$

In Stock, only 3 left!

0

13

12_032_01

Seal-Governor Cross

$

$

Not available

14

Kohler X-25-102

Washer
(Superseded to X-25-102-S)

$2.49

$

In Stock, Qty 5

0

15

Toro 12_380_04

Pin-Hitch

$

$

Currently unavailable

16

Kohler M-0545010

Screw
(Superseded to M-545010)

$4.49

$

In Stock, only 2 left!

0

17

24_018_04

Retainer-Reed

$

$

Not available

18

24_402_05

Beed-Breather

$

$

Not available

19

Toro 24_032_01

Seal-Oil

$

$

Currently unavailable

20

12_153_01

"O"Ring

$

$

Not available

21

12_123_04

Tube-Oil Fill

$

$

Not available

22

Toro 24_126_19

Bracket-Oil Fill Tube

$

$

Currently unavailable

23

Kohler M-0549016

Screw

$

$

Not available

24

12_153_02

"O"Ring

$

$

Not available

25

24_038_04

Dipstick Assembly (Incl. Ref. #26-27)

$

$

Not available

26

Toro 25_755_13

Kit-Fill Cap (Incl. Ref. #27)

$

$

Currently unavailable

27

12_153_03

"O"Ring

$

$

Not available
