30191 - Toro ProLine Walk-Behind Mower, Hydro Drive, 20hp (SN: 059000001 - 059999999) (1995) CARBURETOR/FUEL PUMP Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 20hp

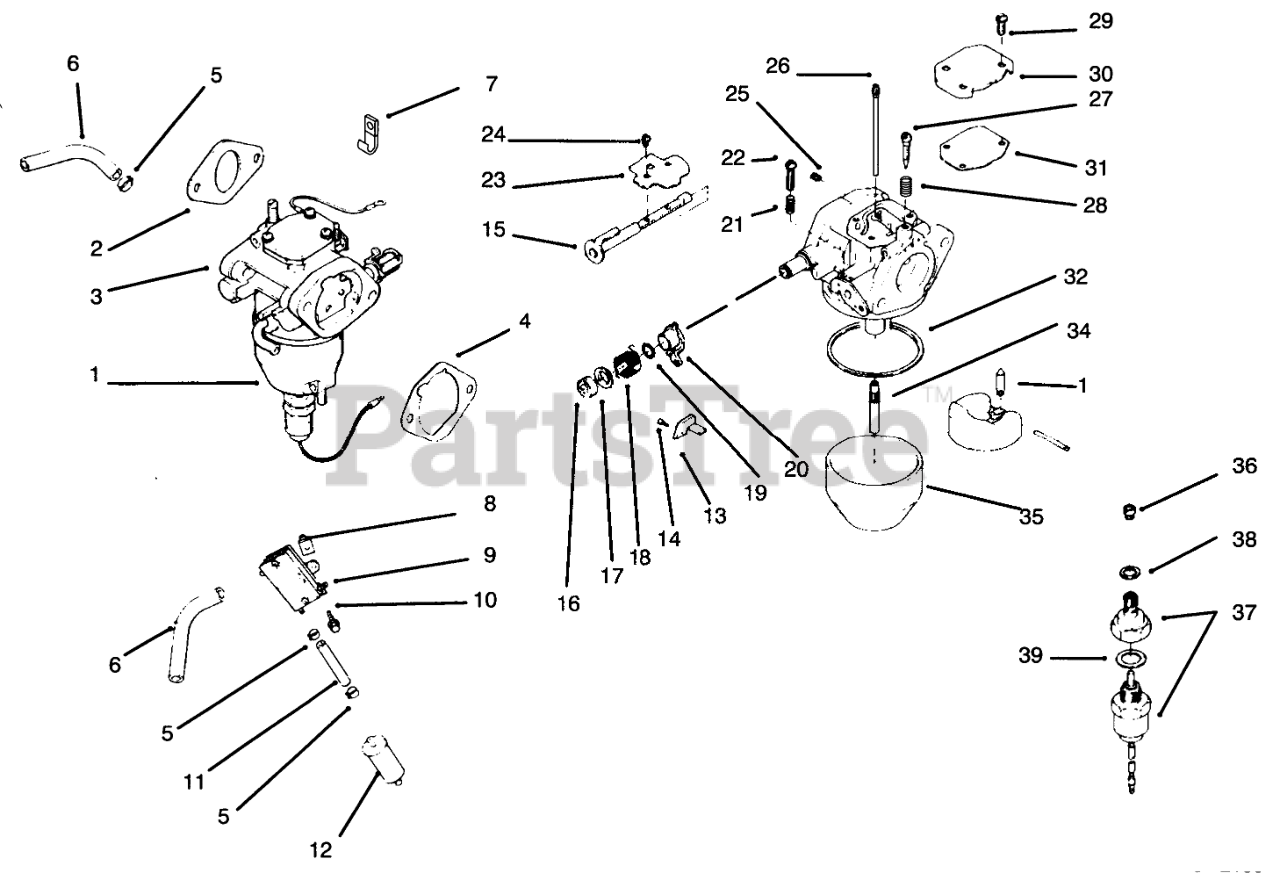

CARBURETOR/FUEL PUMP Parts Diagram

  • Title

1

Toro 24_853_17

Kit-Carburetor/Gasket (Incl. Ref. #2-4)

$

$

Currently unavailable

2

Toro 24_041_15

Gasket-Carburetor

$

$

Currently unavailable

3

24_053_17

Carburetor (Ref. Only)(Incl. Ref. #15-39)

$

$

Not available

4

24_041_14

Gasket-A/C Base

$

$

Not available

5

Toro X-426-9

Clamp-Hose

$

$

Currently unavailable

6

Toro 52_353_22

Line-Fuel 12"

$

$

Currently unavailable

7

47_154_01

Clip-Cable

$

$

Not available

8

Toro 24_100_01

Nut

$

$

Currently unavailable

9

Toro 24_393_04

Pump-Fuel

$

$

Currently unavailable

10

Toro 24_086_12

Screw

$

$

Currently unavailable

11

24_353_03

Line-Fuel 10 1/2"

$

$

Not available

12

Toro 25_050_03

Filter-Fuel

$

$

Currently unavailable

13

Bracket-Throttle Stop

$

$

Not available

14

Toro M-0259006

Screw

$

$

Currently unavailable

15

24_144_15

Shaft-Choke

$

$

Not available

16

24_468_05

Washer

$

$

Not available

17

24_241_01

Collar-Choke

$

$

Not available

18

24_089_22

Spring-Choke Return

$

$

Not available

19

Toro 24_141_04

Ring-Choke Lever

$

$

Currently unavailable

20

Toro 24_090_10

Lever-Choke

$

$

Currently unavailable

21

24_089_24

Spring-Throttle Screw

$

$

Not available

22

24_086_19

Screw-Throttle Adjust

$

$

Not available

23

Toro 24_462_02

Valve-Choke

$

$

Currently unavailable

24

24_086_20

Screw-Throttle Shaft

$

$

Not available

25

Toro 24_337_27

Jet-Air Bleed

$

$

Currently unavailable

26

Toro 24_337_11

Jet-Slow

$

$

Currently unavailable

27

24_086_22

Screw-Idle Adjust

$

$

Not available

28

Toro 24_089_23

Spring-Idle Adjust Screw

$

$

Currently unavailable

29

Toro 24_086_21

Screw

$

$

Currently unavailable

30

24_096_13

Cover-Passage

$

$

Not available

31

24_041_18

Gasket-Passage Cover

$

$

Not available

32

Toro 24_041_19

Gasket-Float Chamber

$

$

Currently unavailable

33

Toro 24_757_05

Kit-Float Repair

Note: Not illustrated

$

$

Currently unavailable

34

24_369_01

Nozzle-Main

$

$

Not available

35

Toro 24_234_01

Chamber-Float

$

$

Currently unavailable

36

Toro 24_337_20

Jet-Main

$

$

Currently unavailable

37

24_755_15

Kit-Solenoid Valve (Incl. Ref. #38-39)

$

$

Not available

38

Toro 24_041_21

Gasket-Chamber Screw

$

$

Currently unavailable

39

24_041_20

Gasket-Solenoid

$

$

Not available

Toro 24_041_15

Gasket-Carburetor

Note: Not illustrated

$

$

Currently unavailable

Toro 24_755_25

Kit-High Altitude (1500-3000 Meters)

Note: Not illustrated

$

$

Currently unavailable

24_755_26

Kit-High Altitude (over 3000 Meters)

Note: Not illustrated

$

$

Not available

24_757_06

Kit-Carburetor Repair

Note: Not illustrated

$

$

Not available
