30191 - Toro ProLine Walk-Behind Mower, Hydro Drive, 20hp (SN: 059000001 - 059999999) (1995) BLOWER HOUSING & BAFFLES Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 20hp

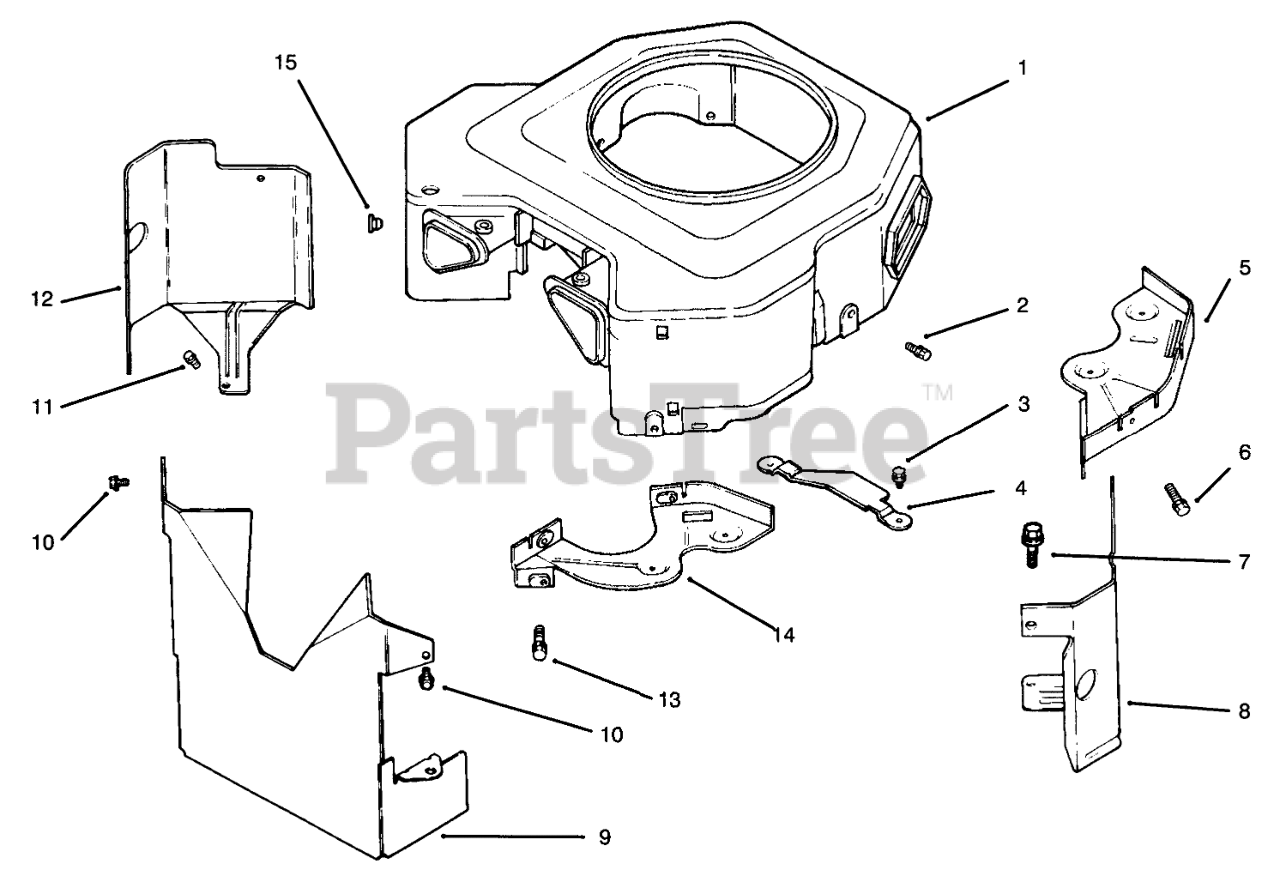

BLOWER HOUSING & BAFFLES Parts Diagram

  • Title

1

Housing-Blower

$

$

Not available

2

Screw

$

$

Not available

3

Kohler SM-0545016

Screw
(Superseded to SM-545016)

$2.49

$

In Stock, Qty 15

0

4

24_314_05

Guard-Flywheel

$

$

Not available

5

Toro 24_146_02

Plate-Backing #2 side

$

$

Currently unavailable

6

Kohler SM-0545020

Screw
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

7

Kohler M-0551016

Screw
(Superseded to M-551016-S)

$2.49

$

In Stock, only 2 left!

0

8

Toro 24_063_20

Baffle Cylinder #2 Side

$

$

Currently unavailable

9

Toro 24_063_29

Baffle-Valley

$

$

Currently unavailable

10

Kohler M-0549010

Screw
(Superseded to M-545010-S)

$4.49

$

In Stock, only 3 left!

0

11

Kohler M-0549016

Screw

$

$

Not available

12

24_063_19

Baffle Cyl. Barrel #1 Side

$

$

Not available

13

Screw

$

$

Not available

14

Toro 24_146_08

Plate-Backing #1

$

$

Currently unavailable

15

Toro 24_100_02

Nut INC W/Blower Housing

$

$

Currently unavailable

24_113_12

Decal-Horse Power

Note: Not illustrated

$

$

Not available
