30191 - Toro ProLine Walk-Behind Mower, Hydro Drive, 20hp (SN: 059000001 - 059999999) (1995) BATTERY ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 20hp

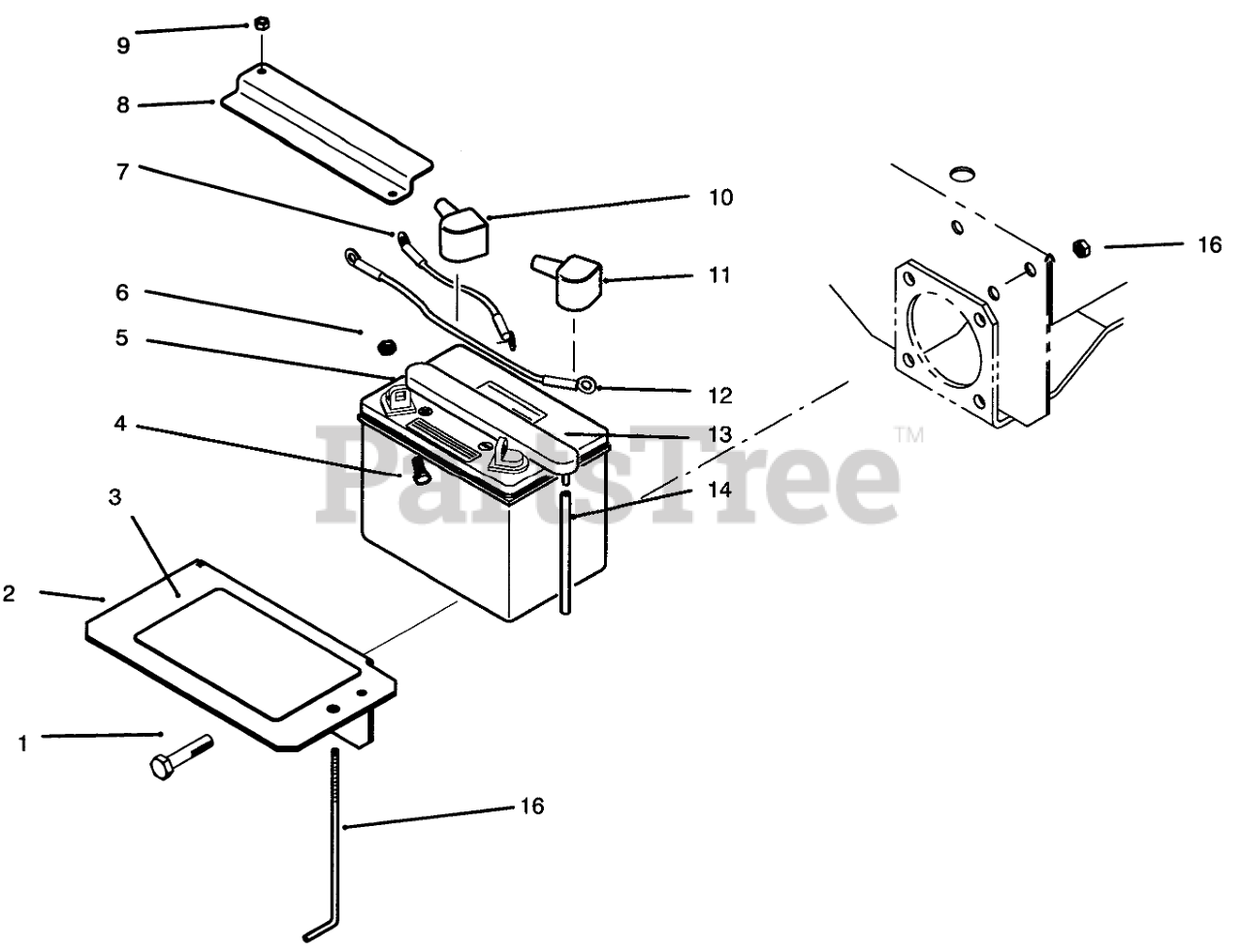

BATTERY ASSEMBLY Parts Diagram

  • Title

1

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 93-1180

Holder-Battery
(Superseded to 93-1180-01)

$151.99

$

Usually ships in 3-6 days

0

3

Toro 62-4300

PAD-SKID, ANTI

$19.99

$

Usually ships in 3-6 days

0

4

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 82-4640

Battery
(Superseded to 104-8162)

$

$

Not available

6

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

7

Toro 54-3090

WIRE ASM

$

$

Not available

8

Toro 82-4620

Clamp-Battery
(Superseded to 82-4620-01)

$

$

Not available

10

Toro 77-0980

BOOT-TERMINAL, BLACK

$

$

Not available

11

Toro 77-0981

BOOT-TERMINAL, RED

$17.99

$

Usually ships in 3-6 days

0

12

Toro 28-3891

WIRE-SOLENOID/STARTER

$28.99

$

Usually ships in 3-6 days

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Toro 84-1830

CAP

$

$

Not available

14

Toro 68-3810

TUBE-VENT

$

$

Not available

15

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

16

Toro 12-5950

ROD-SUPPORT, BATTERY

$23.99

$

Usually ships in 3-6 days

0
