30191 - Toro ProLine Walk-Behind Mower, Hydro Drive, 20hp (SN: 059000001 - 059999999) (1995) AIR CLEANER/FILTRATION Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 20hp

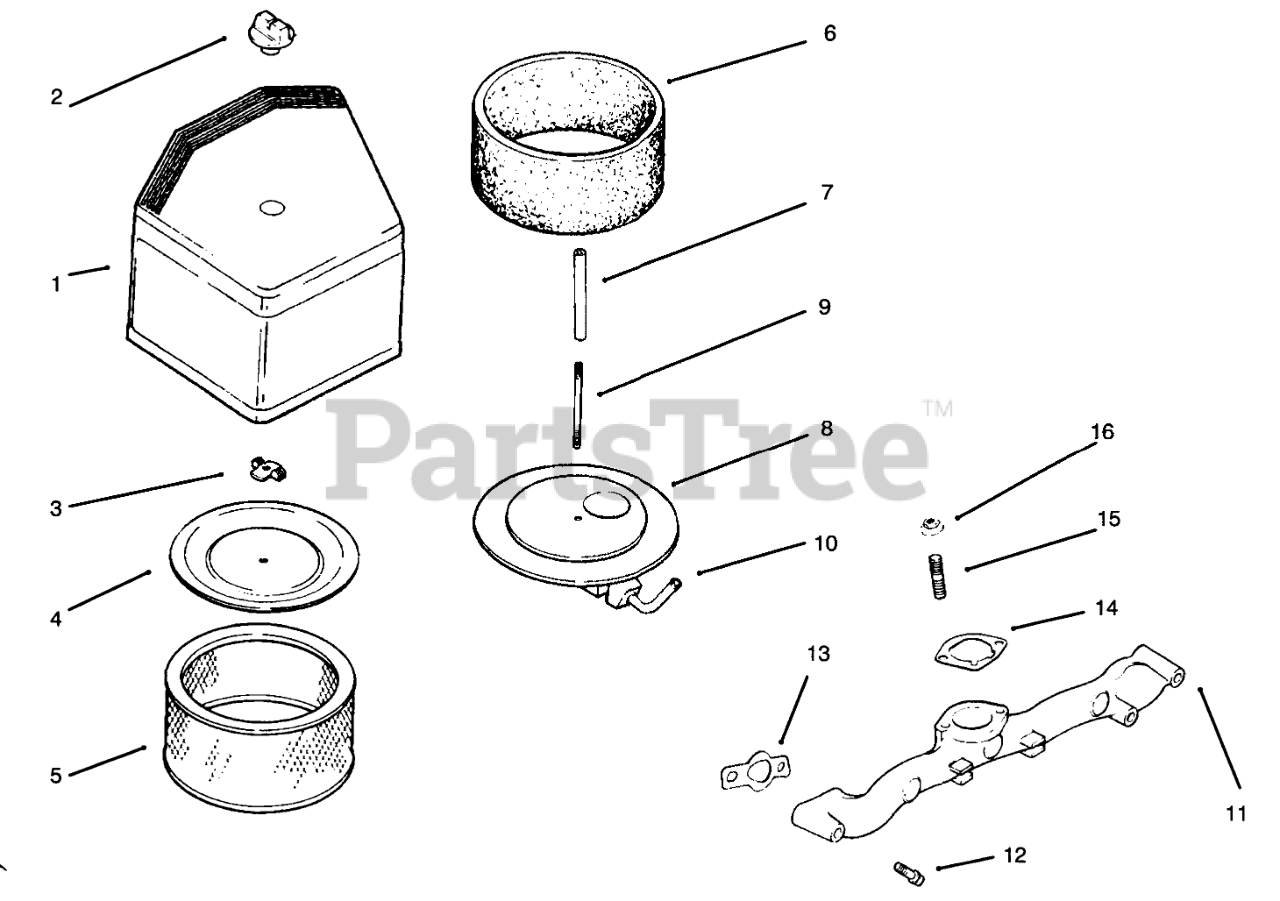

AIR CLEANER/FILTRATION Parts Diagram

  • Title

1

24_743_10

Kit-Air Cleaner Cover (Incl. Ref. #2)

$

$

Not available

2

25_341_02

Knob-Cover

$

$

Not available

3

12_100_01

Nut-Wing

$

$

Not available

4

52_082_04

Cover-Element

$

$

Not available

5

Toro 45_083_01

Element

$

$

Currently unavailable

6

Toro 45_083_02

Element

$

$

Currently unavailable

7

24_032_04

Seal

$

$

Not available

8

24_054_02

Elbow-Air Cleaner (Incl. Ref. #9-10)

$

$

Not available

9

24_072_04

Stud

$

$

Not available

10

24_294_01

Fitting

$

$

Not available

11

Toro 24_164_06

Manifold-Intake

$

$

Currently unavailable

12

Kohler M-0639055

Screw
(Superseded to M-639055)

$2.49

$

In Stock, Qty 20+

0

13

Toro 24_041_01

Gasket-Intake Manifold

$

$

Currently unavailable

14

24_041_14

Gasket-A/C Base

$

$

Not available

15

Kohler M-0629128

Stud
(Superseded to M-629128-S)

$13.99

$

Usually ships in 2-5 days

0

16

Kohler SM-0641060

Nut

$

$

Not available

24_113_14

Decal-Maintenance

Note: Not illustrated

$

$

Not available
