30190 - Toro ProLine Walk-Behind Mower, Hydro Drive, 18hp (SN: 049000001 - 049999999) (1994) CARBURETOR-ENGINE MODEL NO. MV18S-TYPE 58543 Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 18hp

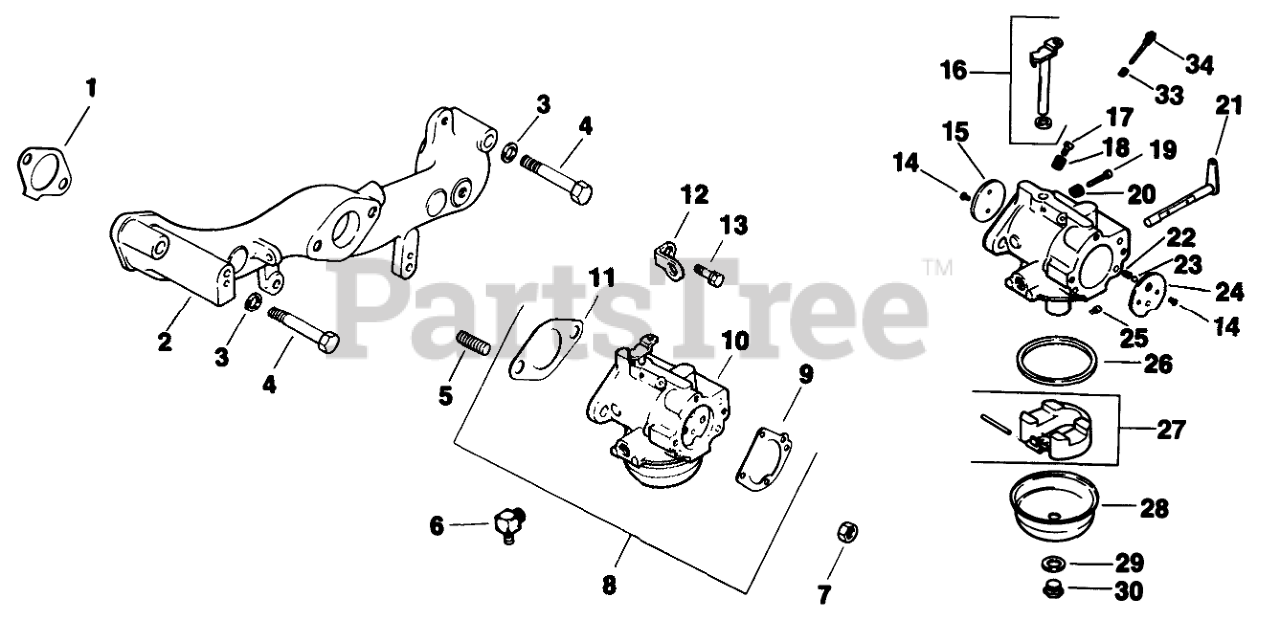

CARBURETOR-ENGINE MODEL NO. MV18S-TYPE 58543 Parts Diagram

  • Title
1

Toro 52_041_09

Gasket-Intake

$

$

Currently unavailable

2

Toro 52_164_14

Manifold-Intake

$

$

Currently unavailable

3

Kohler X-25-1

Washer

$

$

Not available

4

Kohler X-6-29

Screw
(Superseded to X-6-29-S)

$3.49

$

In Stock, only 4 left!

0

5

Kohler X-352-37

Stud
(Superseded to X-352-37-S)

$

$

Not available

6

25_155_02

Connector-90deg.

$

$

Not available

7

Kohler X-77-2

Nut
(Superseded to X-77-2-S)

$3.49

$

Usually ships in 2-5 days

0

8

Toro 52_853_25

Carburetor Kit W/Linkage (Incl. Ref. #9-10, & 12-27)

$

$

Currently unavailable

9

Toro 27_041_06

Gasket-Air Cleaner

$

$

Currently unavailable

10

Toro 52_053_34

Carburetor Assembly Ref.

$

$

Currently unavailable

11

Kohler 271030

Gasket
(Superseded to 271030-S)

$7.49

$

Usually ships in 2-5 days

0

12

Kohler 232867

Strap Lifting
(Superseded to 28 445 01-S)

$

$

Not available

13

Kohler X-67-62

Screw
(Superseded to X-67-62-S)

$3.49

$

Usually ships in 2-5 days

0

14

Toro 25_086_27

Screw-Throttle Plate

$

$

Currently unavailable

15

25_146_02

Plate-Throttle

$

$

Not available

16

Toro 52_144_16

Shaft Assembly

$

$

Currently unavailable

17

25_368_01

Valve-Needle

$

$

Not available

18

25_089_02

Spring

$

$

Not available

19

25_086_26

Screw

$

$

Not available

20

25_089_04

Spring

$

$

Not available

21

Toro 52_090_13

Lever-Choke

$

$

Currently unavailable

22

25_089_03

Spring-Choke

$

$

Not available

23

25_194_01

Ball-Choke

$

$

Not available

24

Toro 25_146_03

Plate-Choke

$

$

Currently unavailable

25

Toro 52_337_06

Jet-Main

$

$

Currently unavailable

26

25_041_04

Bowl-Gasket

$

$

Not available

27

25_757_09

Kit-Float

$

$

Not available

28

25_104_01

Bowl

$

$

Not available

29

25_041_03

Gasket-Bowl

$

$

Not available

30

25_100_05

Screw-Bowl

$

$

Not available

31

Toro 52_853_25

Kit-Carburetor w/Gasket

$

$

Currently unavailable

33

25_089_02

Spring

$

$

Not available

34

Toro 25_368_03

Needle-Main Fuel

$

$

Currently unavailable

Toro 25_757_08

Kit-Carburetor Repair

Note: Not Illustrated.

$

$

Currently unavailable

Toro 52_755_89

Kit-High Altitude

Note: Not Illustrated.

$

$

Currently unavailable
