30190 - Toro ProLine Walk-Behind Mower, Hydro Drive, 18hp (SN: 039000001 - 039999999) (1993) HYDRAULIC PUMP ASSEMBLY NO. 82-8220 Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 18hp

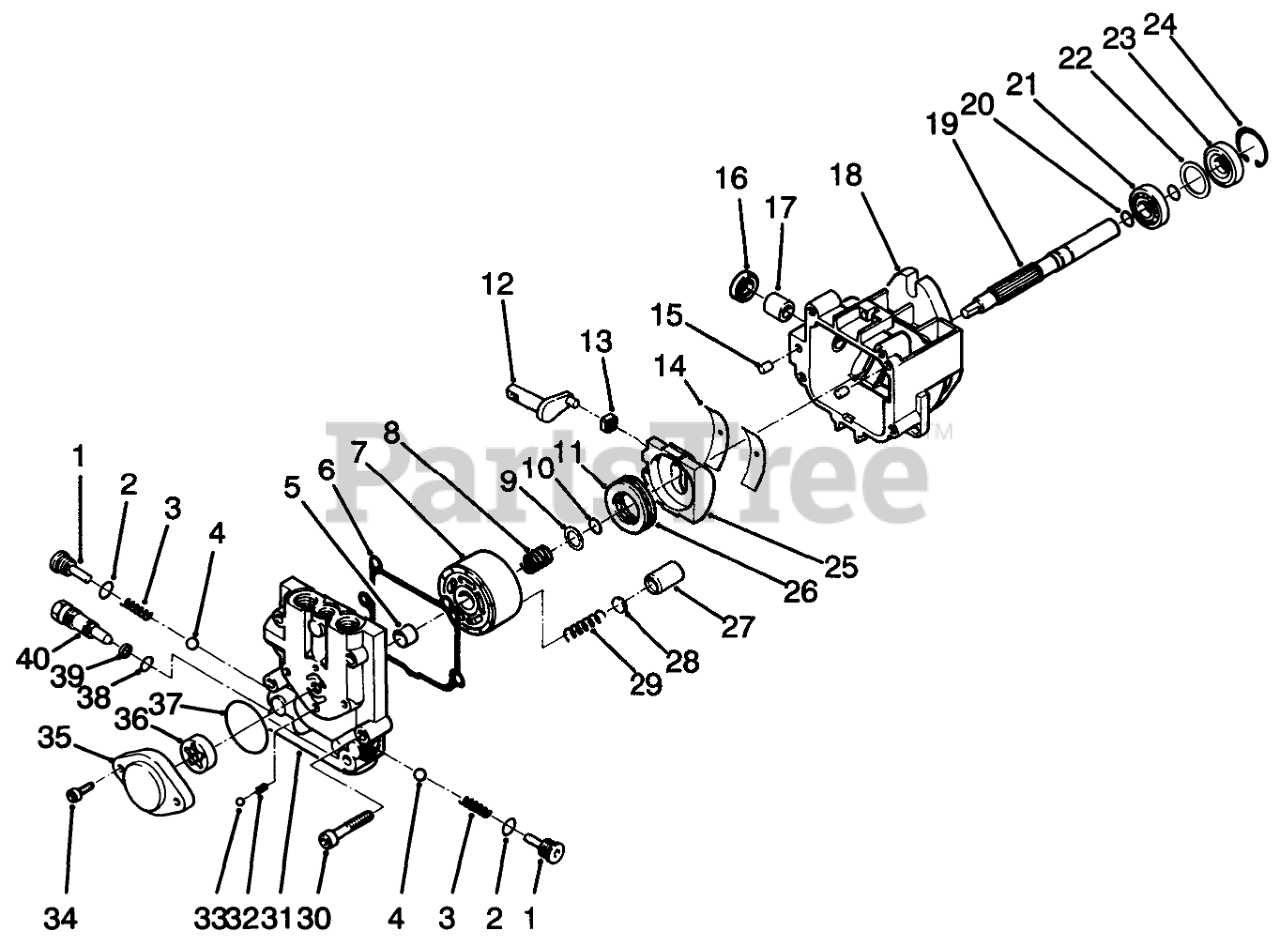

HYDRAULIC PUMP ASSEMBLY NO. 82-8220 Parts Diagram

  • Title

1

Toro 80-6120

Check Valve Kit (Incl. Ref. #2-4)

$148.99

$

Usually ships in 3-6 days

0

2

Seal-O-Ring

$

$

Not available

4

Ball

$

$

Not available

5

Joumal-Bearing

$

$

Not available

6

Gasket-End Cap

$

$

Not available

7

Cylinder Block Kit (Incl. Ref. #8-10 & 27-29)

$

$

Not available

9

Washer

$

$

Not available

11

Plate-Thrust

$

$

Not available

12

Arm-Trunion

$

$

Not available

13

Guide-Slot

$

$

Not available

14

Cradle-Bearing

$

$

Not available

16

Seal-Lip

$

$

Not available

17

Journal-Bearing

$

$

Not available

18

Housing-Assembly (Incl. Ref. #16 & 17)

$

$

Not available

19

Shaft

$

$

Not available

21

Bearing-Ball

$

$

Not available

23

Seal-Lip

$

$

Not available

25

Swashplate Assembly

$

$

Not available

26

Roller-Thrust

$

$

Not available

29

Spring-Piston

$

$

Not available

31

End Cap Assembly (Incl. Ref. #5)

$

$

Not available

32

Ball

$

$

Not available

35

Housing-Charge Pump

$

$

Not available

36

Gerotor Assembly

$

$

Not available

37

Seal-O-Ring

$

$

Not available

38

Seal-O-Ring

$

$

Not available

39

Ring-Back-Up

$

$

Not available

40

Valve-Bypass

$

$

Not available

Toro 80-6110

Charge Relief Valve Kit (Incl. Ref. #32-33)

Note: Not Illustrated.

$

$

Not available

Toro 80-6130

Overhaul Seal Kit (Incl. Ref. #6,10,16,20, 23 & 37-39)

Note: Not Illustrated.

$86.99

$

In Stock, Qty 6
