30190 - Toro ProLine Walk-Behind Mower, Hydro Drive, 18hp (SN: 020000001 - 029999999) (1992) FRAME, ENGINE, FUEL TANK, CLUTCH & COOLER ASS-Y Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 18hp

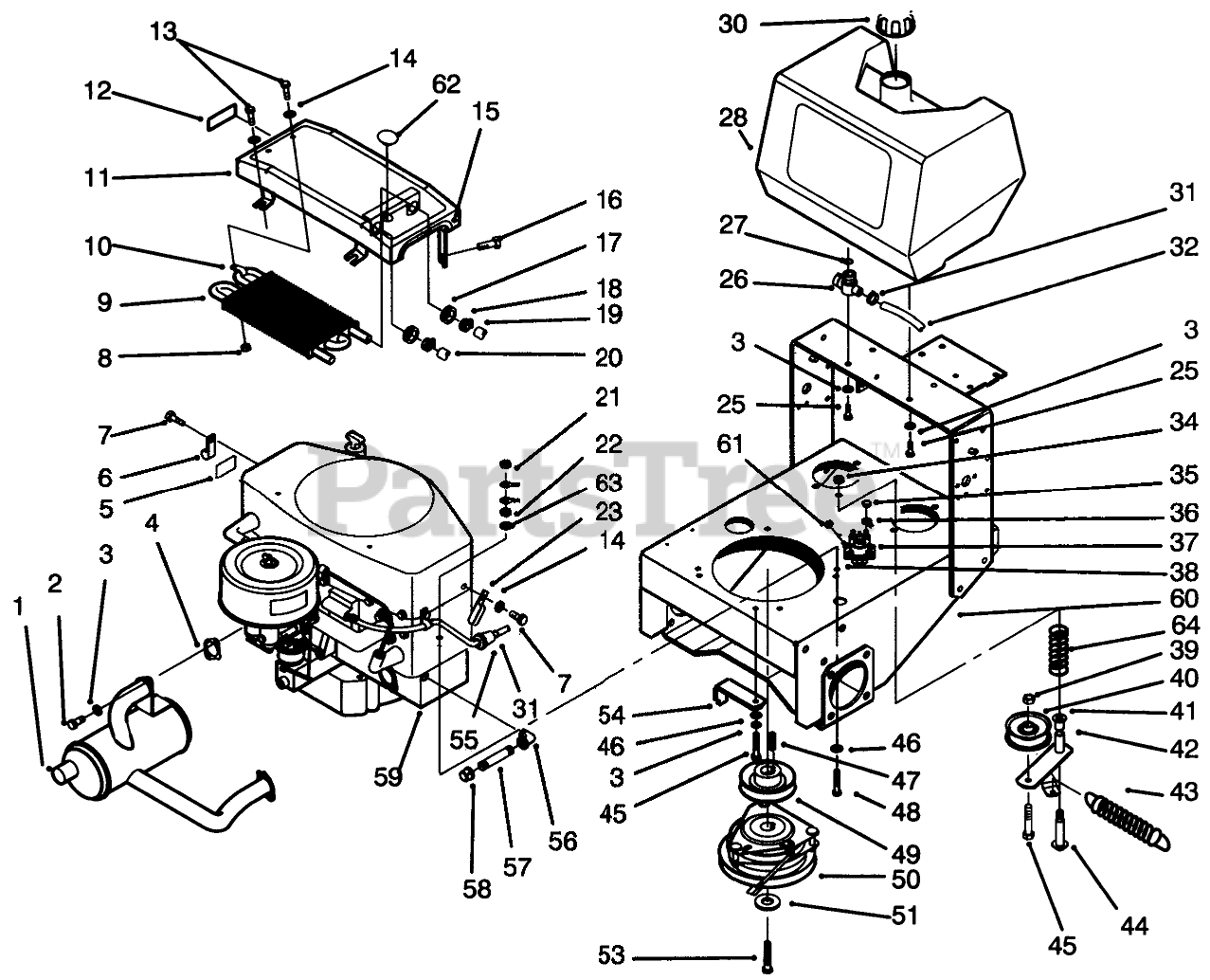

FRAME, ENGINE, FUEL TANK, CLUTCH & COOLER ASS-Y Parts Diagram

  • Title

1

Toro 68-2050

MUFFLER

$

$

Not available

2

Toro 3274-10

SCREW-HSH

$10.99

$

In Stock, Qty 20+

0

3

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

4

Toro 68-3240

EXHAUST GASKET F/W ENG.

$

$

Not available

5

Toro 63-8440

DECAL-SURFACE, HOT

$

$

Not available

6

Toro 2412-94

CLAMP

$3.49

$

Usually ships in 3-6 days

0

7

Screw-(Incl w/Engine)

$

$

Not available

8

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

9

Toro 82-4220

Cooler-Oil
(Superseded to 105-4609)

$

$

Not available

10

Toro 2412-134

CLAMP-R

$6.99

$

Usually ships in 3-6 days

0

11

Toro 82-4400

COOLER MOUNT WA 18 HPB

$

$

Not available

12

Toro 74-0490

DECAL-FUEL SHUT OFF

$

$

Not available

13

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

14

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 29-0642

TRIM-MOUNT, COOLER

$

$

Not available

16

Screw-(Incl. w/Engine)

$

$

Not available

17

Toro 240-9

GROMMET

$4.99

$

In Stock, only 1 left!

0

18

Toro 2412-136

CLAMP-HOSE

$

$

Not available

19

Toro 82-4191

HYDRAULIC HOSE ASM

$

$

Not available

20

Toro 82-4190

HYDRAULIC HOSE ASM

$

$

Not available

21

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 8

0

22

Toro 32153-3

NUT-HEX, SIDE DEFORM

$6.49

$

Usually ships in 3-6 days

0

23

Toro 2412-137

CLAMP-R, DOUBLE

$7.49

$

Usually ships in 3-6 days

0

25

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Toro 74-0510

VALVE-FUEL

$40.99

$

In Stock, only 2 left!

0

27

Toro 237-7

O-RING

$9.99

$

Usually ships in 3-6 days

0

28

Toro 82-8440

FUEL TANK

$558.99

$

Usually ships in 3-6 days

0

30

Toro 55-3570

GAS CAP ASM

$15.99

$

In Stock, Qty 9

0

31

Toro 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

32

Toro 82-4390

GAS HOSE
(Superseded to 110-1876)

$13.99

$

In Stock, only 2 left!

0

34

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

35

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 5

0

36

Toro 28-3891

WIRE-SOLENOID/STARTER

$29.99

$

Usually ships in 3-6 days

0

37

Toro 47-1910

SOLENOID
(Superseded to 740207)

$36.99

$

In Stock, only 2 left!

0

38

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

39

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

40

Toro 62-4540

PULLEY

$98.99

$

In Stock, only 2 left!

0

41

Toro 256-156

BUSHING-FLANGE

$14.99

$

Usually ships in 3-6 days

0

42

Toro 86-4770

Idler Assembly (Incl. Ref.#41)

$113.99

$

Usually ships in 3-6 days

0

43

Toro 68-2190

SPRING

$78.99

$

In Stock, only 1 left!

0

44

Toro 27-6230

BOLT-WHEEL

$8.99

$

In Stock, only 2 left!

0

45

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

46

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

47

Toro 608006

KEY-SQUARE

$5.49

$

Usually ships in 3-6 days

0

48

Toro 322-9

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

49

Toro 44-5940

Pulley

$160.99

$

Usually ships in 3-6 days

0

50

Toro 54-3200

CLUTCH/BRAKE
(Superseded to 105-2635)

$611.99

$

In Stock, only 1 left!

0

51

Toro 112843

WASHER

$3.99

$

In Stock, Qty 11

0

53

Toro 3212-24

SCREW-HH

$25.99

$

Usually ships in 3-6 days

0

54

Toro 51-4540

Retainer-Clutch
(Superseded to 51-4540-03)

$23.99

$

In Stock, only 4 left!

0

55

Filter-Fuel (Incl w/Engine)

$

$

Not available

56

Toro 2811-10

ELBOW-STREET, 90 DEG

$

$

Not available

57

Toro 289-48

NIPPLE

$

$

Not available

58

Toro 288-4

CAP-PIPE

$23.99

$

In Stock, only 1 left!

0

59

Engine 18Hp. Kohler

$

$

Not available

60

Toro 82-3900

Frame
(Superseded to 94-9096-01)

$

$

Not available

61

Toro 32149-8

NUT-KEPS

$1.49

$

Usually ships in 3-6 days

0

62

Toro 2410-71

PLUG-PLASTIC

$

$

Not available

63

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

64

Toro 88-1880

SPRING-COMPRESSION

$

$

Not available
