30190 - Toro ProLine Walk-Behind Mower, Hydro Drive, 18hp (SN: 010000001 - 019999999) (1991) CRANKCASE-KOHLER ENGINE MODEL NO. MV18S-TYPE 58543 Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 18hp

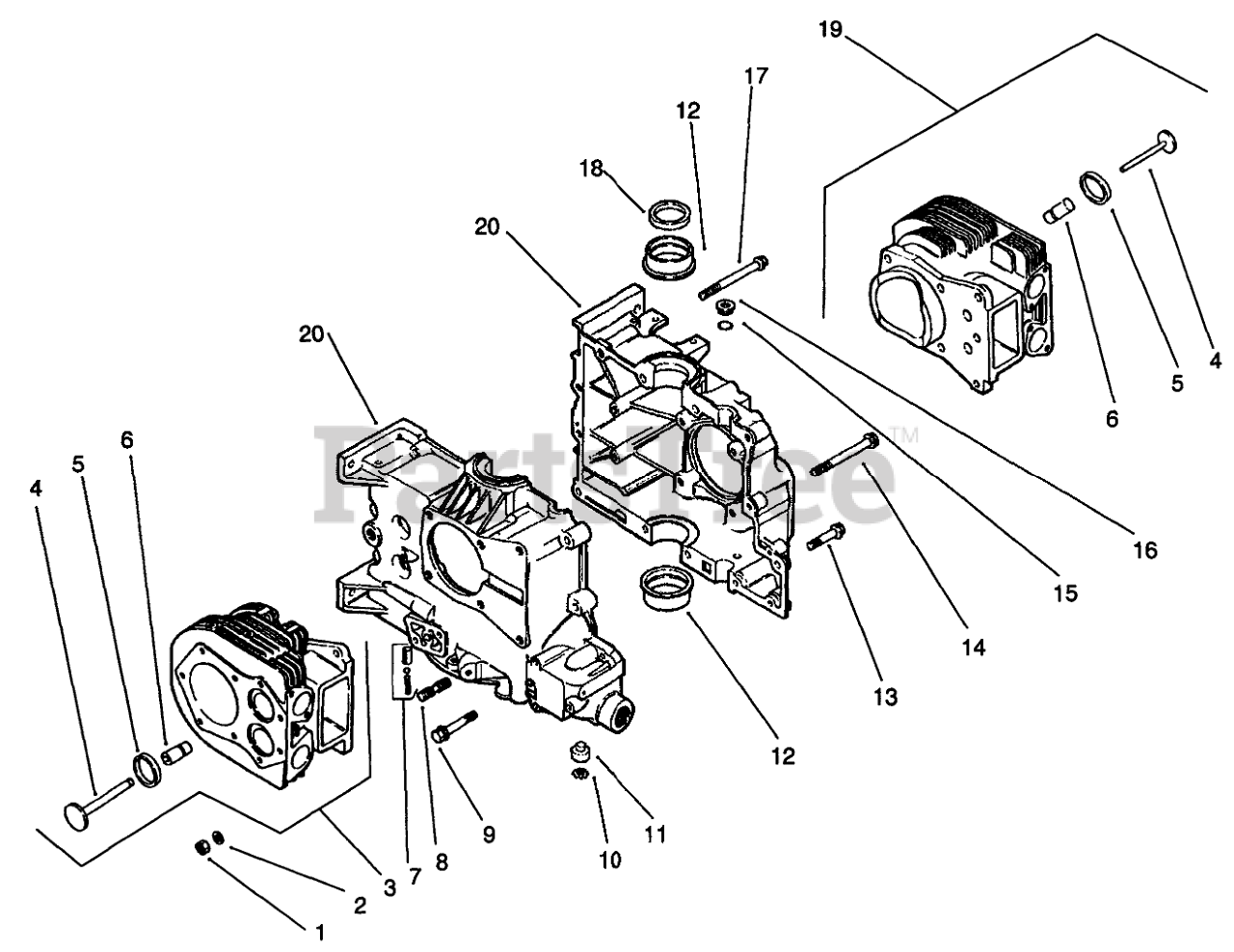

CRANKCASE-KOHLER ENGINE MODEL NO. MV18S-TYPE 58543 Parts Diagram

  • Title
1

$

$

Currently unavailable

2

Toro 52_468_12

Washer-Flat

$

$

Currently unavailable

3

Toro 82_755_16

Kit-#1 Cylinder Barrel (Incl. Ref. #4-6)

$

$

Currently unavailable

4

Toro 52_016_05

Valve-Exhaust

$

$

Currently unavailable

5

Toro 52_031_01

Inset-Valve Seat

$

$

Currently unavailable

6

Toro 52_316_06

Guide-Valve

$

$

Currently unavailable

7

Toro 52_755_50

Kit-Oil Relief

$

$

Currently unavailable

$

$

Currently unavailable

9

Toro 25_086_12

Screw-Hex Flange

$

$

Currently unavailable

10

Toro X-26943

Ring-Retaining

$

$

Currently unavailable

11

Toro 52_078_05

Shaft-Governor

$

$

Currently unavailable

12

Toro 52_030_10

Bearing-Sleeve

$

$

Currently unavailable

Toro 52_030_11

Bearing-Sleeve .010"

$

$

Currently unavailable

Toro 52_030_12

Bearing-Sleeve .020"

$

$

Currently unavailable

13

Toro 25_086_10

Screw-Hex Flange

$

$

Currently unavailable

14

Toro 25_086_13

Screw-Hex Flange

$

$

Currently unavailable

15

$

$

Currently unavailable

16

$

$

Currently unavailable

17

Toro 25_086_11

Screw-Hex Flange

$

$

Currently unavailable

18

Toro 52_032_10

Seal-ReAR Oil

$

$

Currently unavailable

19

Toro 82_755_17

Kit-#2 Cylinder Barrel (Incl. Ref. #4-6)

$

$

Currently unavailable

20

Toro 52_522_78

Short Block

$

$

Currently unavailable
