30189 - Toro ProLine Walk-Behind Mower, Hydro Drive, 16hp (SN: 079000001 - 079999999) (1997) ENGINE BRIGGS & STRATTON MODEL Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 16hp

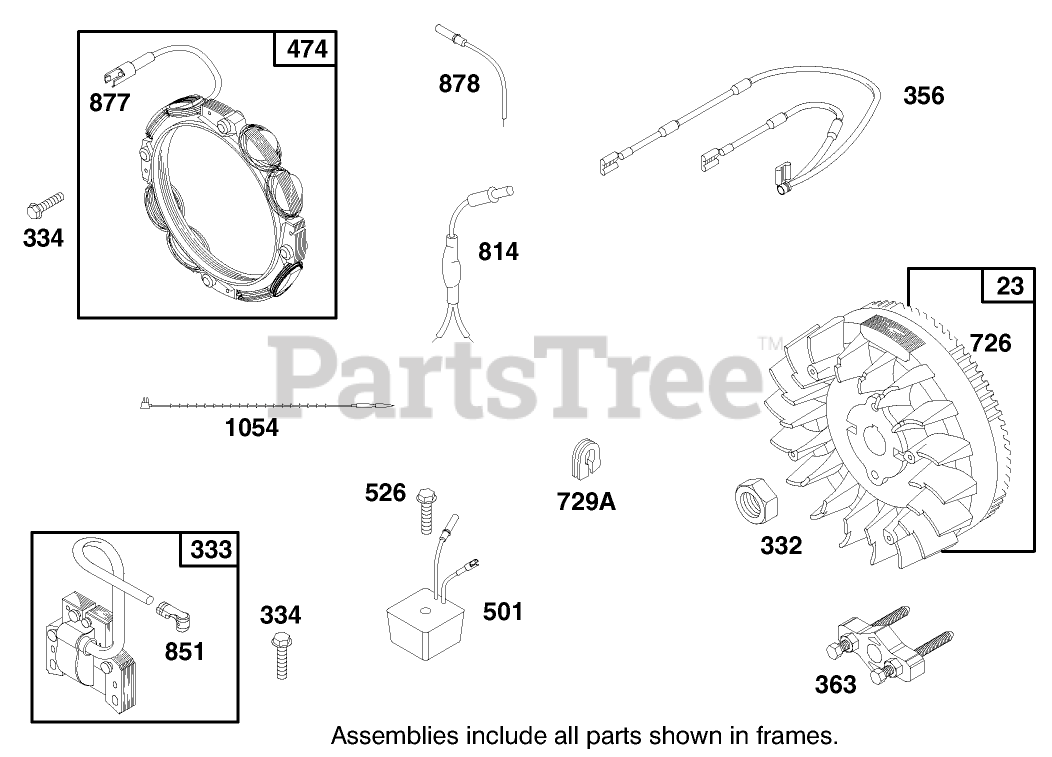

ENGINE BRIGGS & STRATTON MODEL Parts Diagram

  • Title
23

Briggs & Stratton 807531

Flywheel

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

332

Briggs & Stratton 806028

Nut-Hex.
(Superseded to 690887)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

Note: Obtain parts from www.briggsandstratton.com

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 805407

Screw-HH
(Superseded to 692066)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 7

0

356

Briggs & Stratton 493792

Wire-Stop
(Superseded to 692319)

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

In Stock, Qty 20+

0

363

Briggs & Stratton 19203

Puller-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$23.99

$

In Stock, only 1 left!

0

474

Briggs & Stratton 392595

Alternator
(Superseded to 592829)

Note: Obtain parts from www.briggsandstratton.com

$102.99

$

Usually ships in 2-12 days

0

501

Briggs & Stratton 491546

Regulator
(Superseded to 794360)

Note: Obtain parts from www.briggsandstratton.com

$64.99

$

In Stock, only 2 left!

0

526

Briggs & Stratton 805535

Screw-Hex.
(Superseded to 690717)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

Usually ships in 2-12 days

0

726

Briggs & Stratton 807805

Gear-Ring

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

729A

Briggs & Stratton 805641

Grommet
(Superseded to 690744)

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

Usually ships in 2-12 days

0

814

Briggs & Stratton 392606

Harness-Alternator
(Superseded to 691955)

Note: Obtain parts from www.briggsandstratton.com

$69.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880

Terminal-Spark Plug
(Superseded to 493880S)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

877

Briggs & Stratton 393537

Connector-Wire, Tri Circuit

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

878

Briggs & Stratton 393422

Harness-Alternator
(Superseded to 692306)

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 270723

Tie-Cable
(Superseded to 280275)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0
