30188 - Toro ProLine Walk-Behind Mower, Hydro Drive, 16hp (SN: 200000001 - 200999999) (2000) HYDRAULIC SCHEMATIC Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 16hp

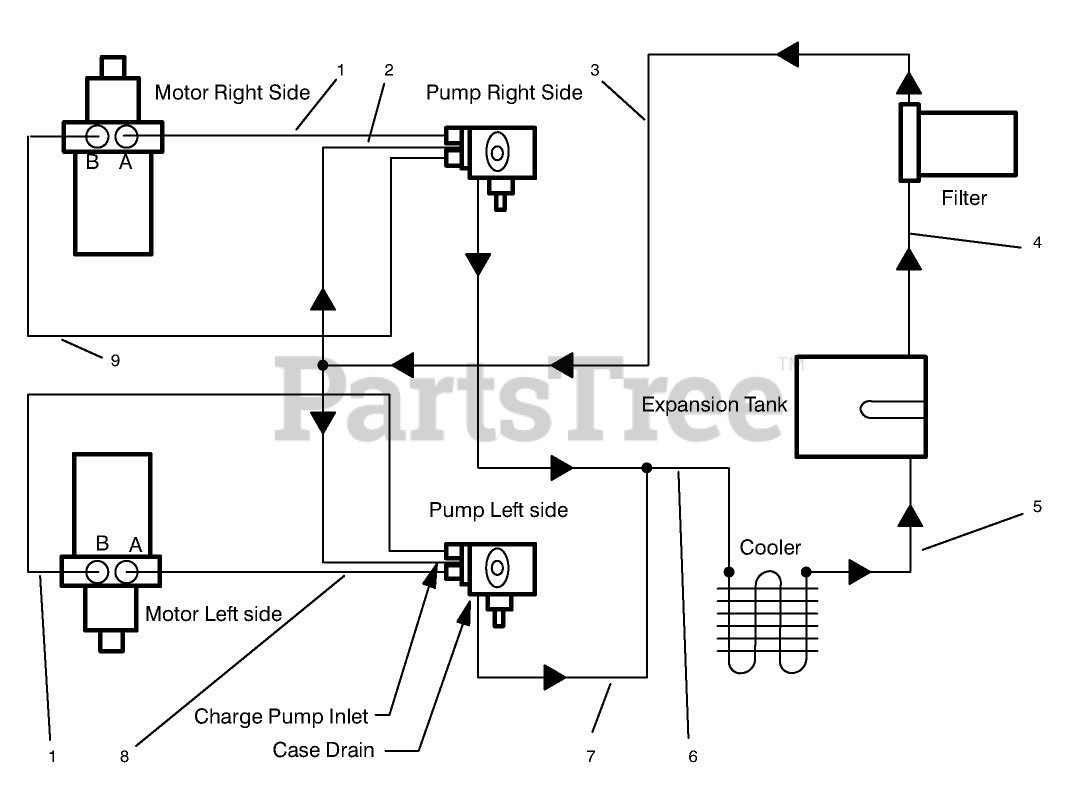

HYDRAULIC SCHEMATIC Parts Diagram

  • Title
1

Toro 82-4550

HYDRAULIC HOSE ASM
(Superseded to 106-0825)

$

$

Not available

2

Toro 82-4170

HYD HOSE ASM

$

$

Not available

3

Toro 82-4180

HYDRAULIC HOSE ASM

$67.99

$

Usually ships in 3-6 days

0

4

Toro 82-4200

HYD HOSE ASM

$

$

Not available

5

Toro 82-4193

HYDRAULIC HOSE ASM

$

$

Not available

6

Toro 82-4192

HYDRAULIC HOSE ASM

$153.99

$

Usually ships in 3-6 days

0

7

Toro 82-4201

HYD HOSE ASM

$

$

Not available

8

Toro 82-4560

HYDRAULIC HOSE ASM
(Superseded to 106-0826)

$208.99

$

Usually ships in 3-6 days

0

9

Toro 82-4540

HYDRAULIC HOSE ASM
(Superseded to 106-0824)

$

$

Not available
