30188 - Toro ProLine Walk-Behind Mower, Hydro Drive, 16hp (SN: 200000001 - 200999999) (2000) FUEL TANK, HYDRO PUMP & PTO Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 16hp

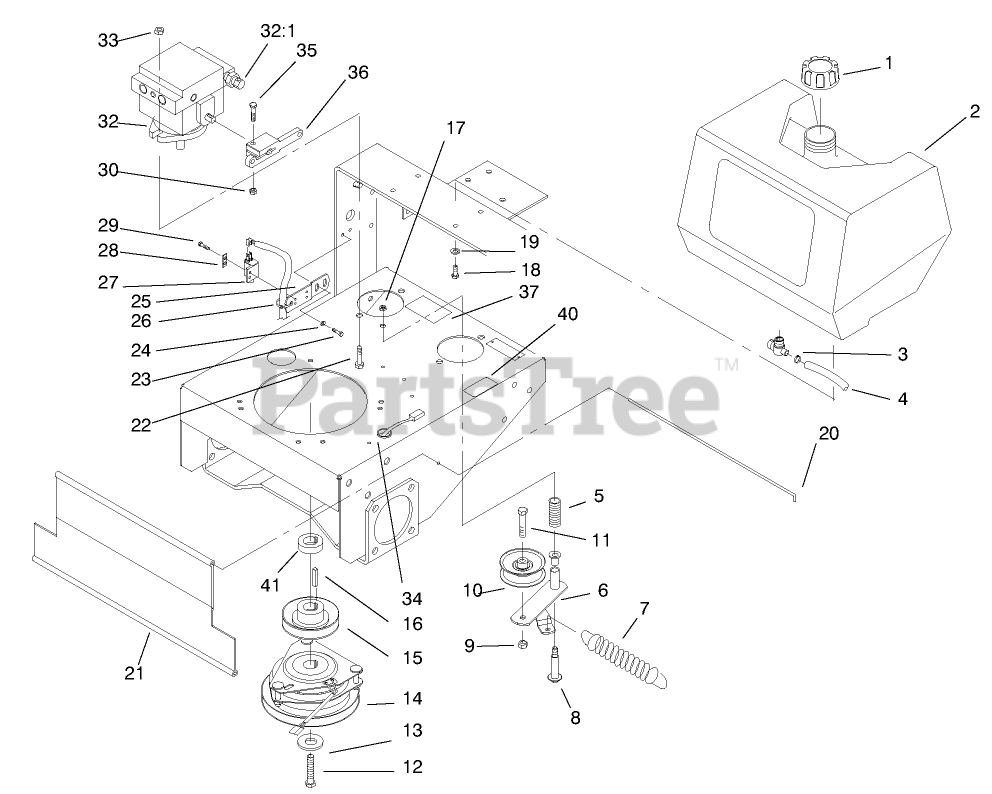

FUEL TANK, HYDRO PUMP & PTO Parts Diagram

  • Title

1

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 12

0

2

Toro 95-2802

TANK-FUEL

$

$

Not available

3

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

4

Toro 47-2980

HOSE-FUEL
(Superseded to 107-0588)

$5.49

$

In Stock, only 3 left!

0

5

Toro 88-1880

SPRING-COMPRESSION

$42.99

$

Usually ships in 3-6 days

0

6

Toro 86-4770-03

Lever-Idler
(Superseded to 86-4770)

$104.99

$

Usually ships in 3-6 days

0

7

Toro 68-2190

SPRING

$64.99

$

In Stock, only 1 left!

0

8

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 62-4540-03

Pulley-Idler
(Superseded to 62-4540)

$92.99

$

In Stock, only 1 left!

0

11

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 3212-9

SCREW-HH

$12.99

$

Usually ships in 3-6 days

0

13

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

14

Toro 54-3200

CLUTCH/BRAKE
(Superseded to 105-2635)

$576.99

$

In Stock, only 1 left!

0

15

Toro 44-5940

Pulley

$151.99

$

Usually ships in 3-6 days

0

16

Toro 608006

KEY-SQUARE

$5.49

$

Usually ships in 3-6 days

0

17

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

18

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

22

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

30

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

32

Toro 95-1538

HYD PUMP ASM

$1513.99

$

In Stock, only 1 left!

0

32:1

Toro 95-1539

ASSEMBLY - VALVE

$

$

Not available

33

Toro 32128-42

NUT-HF

$1.49

$

In Stock, only 3 left!

0

34

Toro 237-124

GROMMET

$2.99

$

In Stock, only 1 left!

0

35

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 82-3790

ARM-PUMP

$

$

Not available

37

Toro 95-5851

DECAL-VALVE

$

$

Not available

42

Toro 94-0317

Decal-CE

$

$

Currently unavailable
