30188 - Toro ProLine Walk-Behind Mower, Hydro Drive, 16hp (SN: 200000001 - 200999999) (2000) ENGINE BRIGGS & STRATTON MODEL 303776-1188-A1 Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 16hp

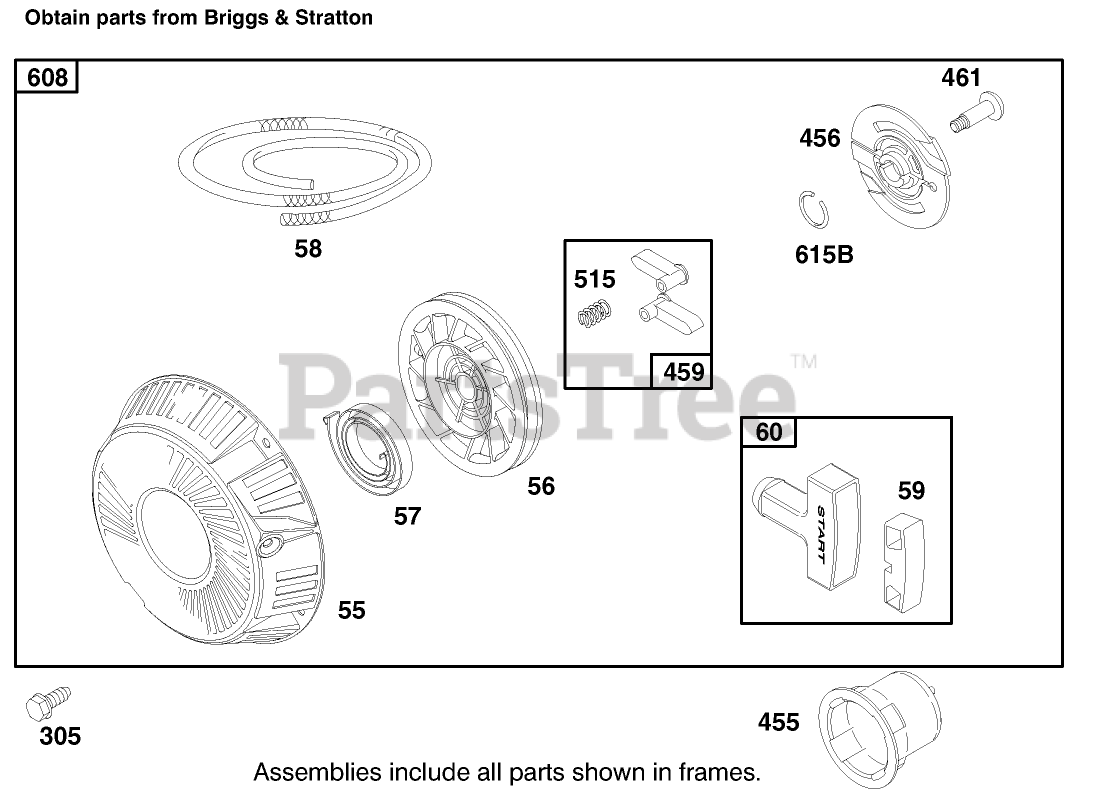

ENGINE BRIGGS & STRATTON MODEL 303776-1188-A1 Parts Diagram

  • Title
55

Briggs & Stratton 808186

Housing-Rewind Starter
(Superseded to 691568)

$103.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 805949

Pulley-Starter
(Superseded to 692085)

$59.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 805951

Spring-Rewind Starter
(Superseded to 692086)

$15.99

$

In Stock, only 1 left!

0

58

Briggs & Stratton 66574

Rope-Starter (Cut to 78-3/4)

$7.49

$

In Stock, Qty 9

0

59

$8.49

$

In Stock, only 4 left!

0

60

Briggs & Stratton 808167

Grip-Starter Rope

$

$

Not available

305

Briggs & Stratton 805406

Screw
(Superseded to 841233)

$3.49

$

In Stock, Qty 20+

0

455

Briggs & Stratton 805876

Cup-Flywheel
(Superseded to 691517)

$33.99

$

Usually ships in 2-12 days

0

456

Briggs & Stratton 805954

Retainer-Spring
(Superseded to 691529)

$17.99

$

Usually ships in 2-12 days

0

459

$20.99

$

Usually ships in 2-12 days

0

461

Briggs & Stratton 805955

Screw-Shoulder
(Superseded to 690876)

$6.49

$

Usually ships in 2-12 days

0

515

Briggs & Stratton 805953

Spring-Pawl
(Superseded to 691528)

$6.99

$

In Stock, only 1 left!

0

608

Briggs & Stratton 808087

Starter-Rewind
(Superseded to 692102)

$142.99

$

In Stock, only 2 left!

0

615B

Briggs & Stratton 805952

Ring-Retaining
(Superseded to 690875)

$4.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 807595

Muffler
(Superseded to 690898)

Note: Not illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 805778

Manifold-Exhaust

Note: Not illustrated

$155.99

$

Usually ships in 2-12 days

0

Toro 808362

Bracket Asm

Note: Not illustrated

$

$

Currently unavailable

Briggs & Stratton 805247

Screw
(Superseded to 692062)

Note: Not illustrated

$3.49

$

In Stock, Qty 14

0

Briggs & Stratton 222573

Deflecror
(Superseded to 795036)

Note: Not illustrated

$8.49

$

In Stock, only 1 left!

0

Briggs & Stratton 93705

Screw
(Superseded to 690661)

Note: Not illustrated

$3.49

$

In Stock, Qty 8

0
