30188 - Toro ProLine Walk-Behind Mower, Hydro Drive, 16hp (SN: 079000001 - 079999999) (1997) ENGINE BRIGGS & STRATTON MODEL 303776-1188-A1 Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 16hp

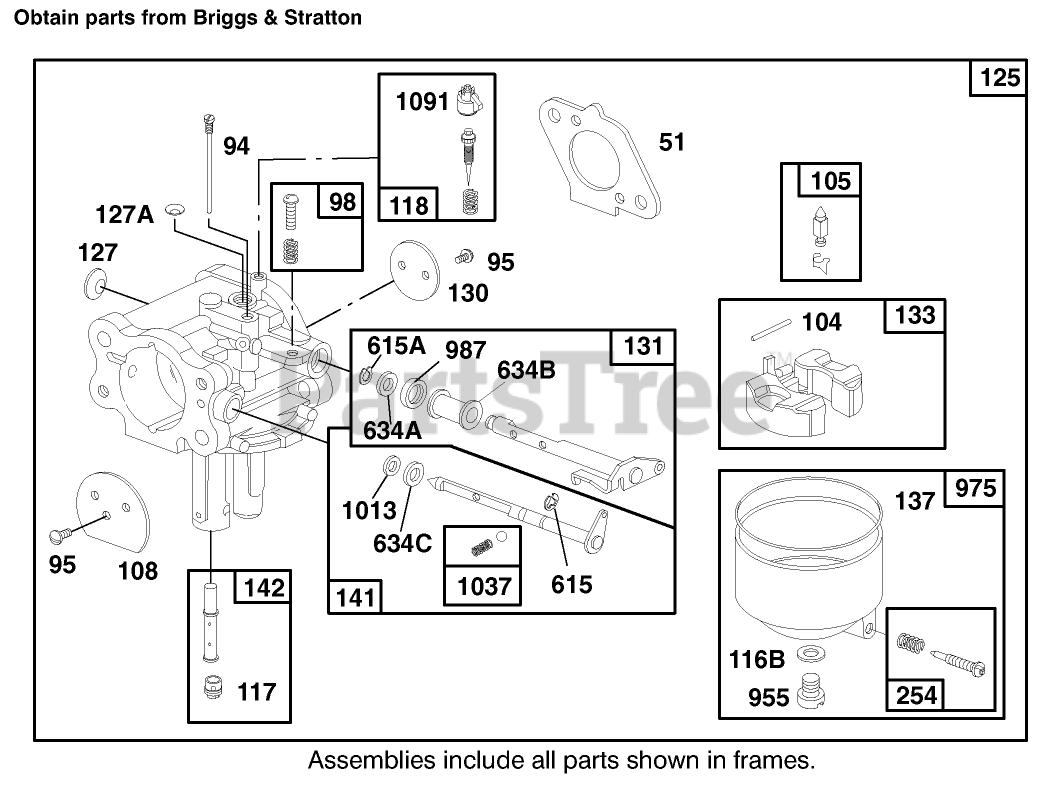

ENGINE BRIGGS & STRATTON MODEL 303776-1188-A1 Parts Diagram

  • Title

51

Briggs & Stratton 805700

Gasket-Intake
(Superseded to 691694)

Note: Included in Gasket Set-Part No. 808989.

$2.99

$

In Stock, Qty 20+

0

94

Briggs & Stratton 805777

Tube-Jet
(Superseded to 690755)

Note: Included in Carburetor Kit-Part No. 808324.

$25.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 805561

Screw-Slotted
(Superseded to 690718)

$5.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 807705

Screw-Idle Speed

$13.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 805586

Pin-Float Hinge
(Superseded to 690739)

Note: Included in Carburetor Kit-Part No. 808324.

$6.49

$

In Stock, only 1 left!

0

105

Briggs & Stratton 807706

Valve-Needle

Note: Included in Carburetor Kit-Part No. 808324.

$41.99

$

In Stock, Qty 6

0

108

Briggs & Stratton 805562

Valve-Choke
(Superseded to 690729)

$8.49

$

Usually ships in 2-12 days

0

116B

Gasket-Plug (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 808324.

$

$

Not available

116B

Gasket-Plug (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-Part No. 808325.

$

$

Not available

117

Jet-Main (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 808324.

$

$

Not available

118

Briggs & Stratton 808258

Valve-Idle Adjustment

Note: Included in Carburetor Kit-Part No. 808324.

$32.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 808255

Carburetor

$

$

Not available

127

Briggs & Stratton 805570

Plug-Welch
(Superseded to 690731)

Note: Included in Carburetor Kit-Part No. 808324.

$7.99

$

Usually ships in 2-12 days

0

127A

Briggs & Stratton 805571

Plug-Welch
(Superseded to 690731)

Note: Included in Carburetor Kit-Part No. 808324.

$7.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 805572

Valve-Throttle
(Superseded to 690732)

$22.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 808323

Shaft-Throttle

$49.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 807710

Float-Carburetor

$41.99

$

In Stock, only 1 left!

0

137

Gasket-Float Bowl (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 808324.

$

$

Not available

137

Gasket-Float Bowl (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-Part No. 808325.

$

$

Not available

141

Briggs & Stratton 807711

Shaft-Choke

Note: Included in Carburetor Gasket Set-Part No. 808325.

$32.99

$

Usually ships in 2-12 days

0

141

Briggs & Stratton 807711

Shaft-Choke

Note: Included in Carburetor Kit-Part No. 808324.

$32.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 807960

Nozzle-Carburetor

Note: Included in Carburetor Kit-Part No. 808324.

$36.99

$

Usually ships in 2-12 days

0

254

Briggs & Stratton 807713

Drain-Carburetor Bowl
(Superseded to 807715)

$100.99

$

In Stock, only 1 left!

0

615

Briggs & Stratton 805578

Retainer

Note: Included in Carburetor Kit-Part No. 808324.

$4.99

$

Usually ships in 2-12 days

0

615A

Briggs & Stratton 805577

Retainer
(Superseded to 690736)

Note: Included in Carburetor Kit-Part No. 808324.

$6.99

$

Usually ships in 2-12 days

0

634A

Briggs & Stratton 805576

Collar-Throttle Shaft
(Superseded to 690735)

Note: Included in Carburetor Kit-Part No. 808324.

$4.99

$

Usually ships in 2-12 days

0

634B

Briggs & Stratton 805574

Collar-Throttle Shaft
(Superseded to 690733)

Note: Included in Carburetor Kit-Part No. 808324.

$15.99

$

Usually ships in 2-12 days

0

634C

Briggs & Stratton 805580

Collar-Throttle Shaft
(Superseded to 690737)

Note: Included in Carburetor Kit-Part No. 808324.

$8.49

$

Usually ships in 2-12 days

0

955

Briggs & Stratton 807714

Plug

$7.99

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 807715

Bowl-Float

$100.99

$

In Stock, only 1 left!

0

987

Briggs & Stratton 806079

Seal-Throttle Shaft
(Superseded to 691548)

Note: Included in Carburetor Kit-Part No. 808324.

$5.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 806079

Seal-Throttle Shaft
(Superseded to 691548)

Note: Included in Carburetor Gasket Set-Part No. 808325.

$5.99

$

Usually ships in 2-12 days

0

1013

Briggs & Stratton 805581

Seal-Choke Shaft
(Superseded to 690738)

Note: Included in Carburetor Gasket Set-Part No. 808325.

$11.99

$

Usually ships in 2-12 days

0

1013

Briggs & Stratton 805581

Seal-Choke Shaft
(Superseded to 690738)

Note: Included in Carburetor Kit-Part No. 808324.

$11.99

$

Usually ships in 2-12 days

0

1037

Briggs & Stratton 807717

Bali-Choke Locator
(Superseded to 807711)

Note: Included in Carburetor Kit-Part No. 808324.

$32.99

$

Usually ships in 2-12 days

0

1091

Briggs & Stratton 805858

Cap-Limiter
(Superseded to 691515)

Note: Included in Carburetor Kit-Part No. 808324.

$8.99

$

Usually ships in 2-12 days

0
