30188 - Toro ProLine Walk-Behind Mower, Hydro Drive, 16hp (SN: 079000001 - 079999999) (1997) 16 HP ENGINE & OIL COOLER Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 16hp

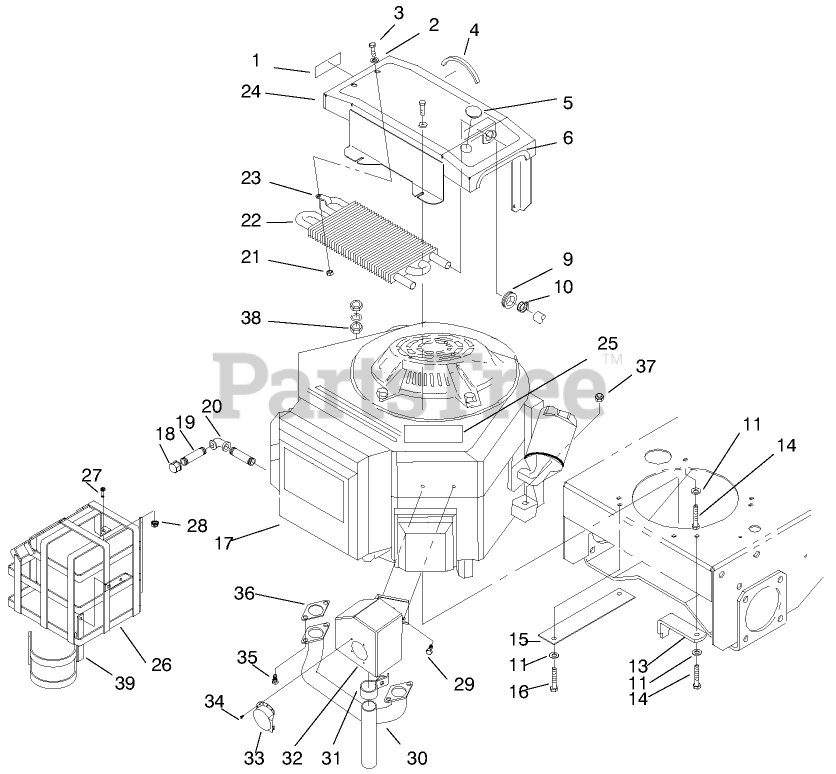

16 HP ENGINE & OIL COOLER Parts Diagram

  • Title
1

Toro 93-9353

DECAL-SHUT OFF, FUEL

$

$

Not available

2

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 321-39

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

4

Toro 95-1547

TRIM - EDGE

$

$

Not available

5

Toro 2410-71

PLUG-PLASTIC

$

$

Not available

6

Toro 29-0642

TRIM-MOUNT, COOLER

$

$

Not available

9

Toro 240-9

GROMMET

$4.49

$

In Stock, only 1 left!

0

10

Toro 2412-136

CLAMP-HOSE

$

$

Not available

11

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 51-4540-03

RETAINER-CLUTCH

$21.99

$

In Stock, only 3 left!

0

14

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

15

Toro 94-5847-01

COVER-PULLEY

$

$

Not available

16

Toro 322-17

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

17

Toro 94-4194

ENGINE - 16 HP B&S

$

$

Not available

18

Toro 288-4

CAP-PIPE

$23.99

$

In Stock, only 1 left!

0

19

Toro 289-46

NIPPLE-PIPE

$

$

Not available

20

Toro 94-9650

ELBOW-90 DEG

$37.99

$

Usually ships in 3-6 days

0

21

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

22

Toro 82-4220

Cooler-Oil
(Superseded to 105-4609)

$

$

Not available

23

Toro 2412-134

CLAMP-R

$6.49

$

Usually ships in 3-6 days

0

24

Toro 94-9655-03

W/A COOLER MOUNT B

$490.99

$

Usually ships in 3-6 days

0

25

Toro 93-8069

DECAL-SURFACE, HOT

$12.99

$

Usually ships in 3-6 days

0

27

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

28

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, Qty 20+

0

29

Toro 94-5846

SCREW F/W 94-4194

$

$

Not available

30

Toro 94-5842

MANIFOLD-EXH. F/W 94-4194

$

$

Not available

31

Toro 94-5843

ASM-MUFF. CLAMP W/94-4194

$

$

Not available

32

Toro 94-5841

MUFFLER F/W 94-4194

$

$

Not available

33

Toro 94-6782

DEFLECTOR F/W 94-4194

$

$

Not available

34

Toro 94-6783

SCREW F/W 94-4194

$

$

Not available

35

Toro 94-5845

SCREW F/W 94-4194

$

$

Not available

36

Toro 94-5844

GASKET F/W 94-4194

$13.99

$

In Stock, only 2 left!

0

37

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

38

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

40

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

41

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+
