30187 - Toro ProLine Walk-Behind Mower, Hydro Drive, 15hp (SN: 260000001 - 260999999) (2006) IGNITION / ELECTRICAL ASSEMBLY KOHLER CV15S 41630 Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 15hp

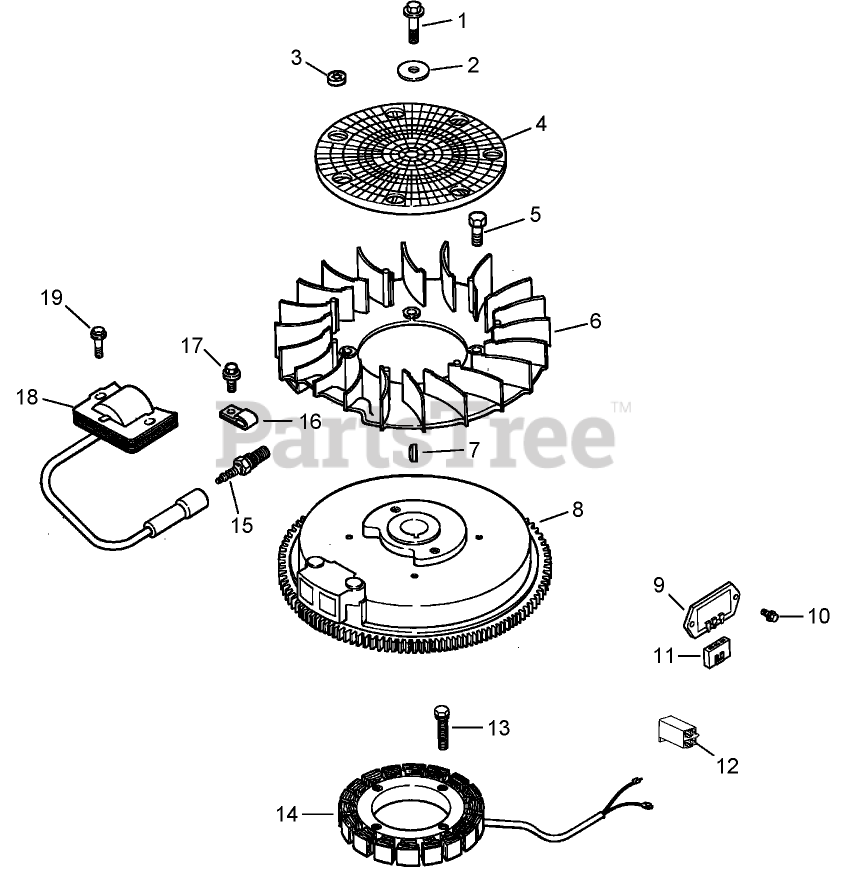

IGNITION / ELECTRICAL ASSEMBLY KOHLER CV15S 41630 Parts Diagram

  • Title

1

Kohler 12 086 14-S

SCREW-FLANGE (M10X1.5X45)
(Superseded to 25 086 361-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 12

0

2

Kohler 12 468 03-S

WASHER-FLAT (13/32)
(Superseded to 25 468 09-S)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 2 left!

0

3

Kohler 24 018 03-S

Retainer

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 4 left!

0

4

Kohler 24 162 03-S

Screen-Grass

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

5

Kohler 25 086 47-S

BOLT-SHOULDER (M6x1.0x16)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 7

0

6

Kohler 12 157 06-S

Fan

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

7

Kohler X-42-15-S

KEY (3/16 X 5/8)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 8

0

8

Kohler 12 025 33-S

Flywheel
(Superseded to 12 025 72-S)

Note: Obtain parts from www.kohlerplus.com

$393.99

$

Usually ships in 2-5 days

0

9

Kohler 41 403 09-S

Rectifier-Regulator
(Superseded to 41 403 10-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

10

Kohler M-639016-S

Screw-HF (M6x1.0x16)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 6

0

11

Kohler 236602-S

Connector (3 contact)
(Superseded to 25 155 41-S)

Note: Obtain parts from www.kohlerplus.com

$24.99

$

In Stock, only 1 left!

0

12

Kohler 41 155 03-S

Connector

Note: Obtain parts from www.kohlerplus.com

$4.99

$

Usually ships in 2-5 days

0

13

Kohler M-548025-S

SCREW-THREAD FORMING (M5X0.8X25)
(Superseded to 25 086 402-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

14

Kohler 237878-S

Stator Kit (Includes Part No. 25 452 01-S)

Note: Obtain parts from www.kohlerplus.com

$149.99

$

In Stock, Qty 15

0

15

Kohler 25 132 12-S

SPARK PLUG (PRO SERIES)

Note: Obtain parts from www.kohlerplus.com

$20.99

$

Usually ships in 2-5 days

0

16

Kohler X-728-1-S

Clip

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

17

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 2 left!

0

18

Kohler 12 584 04-S

Module-Ignition

Note: Obtain parts from www.kohlerplus.com

$33.99

$

In Stock, only 1 left!

0

19

Kohler M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)
(Superseded to 25 086 473-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 6

0

Kohler X-22-11-S

Washer-Lock, Internal Tooth (1/4)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

Kohler X-22-11-S

Washer-Lock, Internal Tooth (1/4)

Note: Not illustrated

$2.49

$

In Stock, only 3 left!

0

Kohler 12 518 01-S

Lead

Note: Not illustrated

$19.99

$

In Stock, only 1 left!

0

Kohler 12 518 01-S

Lead

Note: Obtain parts from www.kohlerplus.com

$19.99

$

In Stock, only 1 left!

0

Kohler 25 518 05-S

Lead

Note: Obtain parts from www.kohlerplus.com

$4.99

$

Usually ships in 2-5 days

0

Kohler 25 518 05-S

Lead

Note: Not illustrated

$4.99

$

Usually ships in 2-5 days

0

Kohler 24 518 12-S

Lead-Black

Note: Not illustrated

$4.99

$

Usually ships in 2-5 days

0

Kohler 24 518 12-S

Lead-Black

Note: Obtain parts from www.kohlerplus.com

$4.99

$

Usually ships in 2-5 days

0

Kohler 25 452 01-S

Terminal

Note: Obtain parts from www.kohlerplus.com

$5.49

$

In Stock, only 1 left!

0

Kohler 25 452 01-S

Terminal

Note: Not illustrated

$5.49

$

In Stock, only 1 left!

0
