30187 - Toro ProLine Walk-Behind Mower, Hydro Drive, 15hp (SN: 260000001 - 260999999) (2006) FUEL SYSTEM ASSEMBLY KOHLER CV15S 41630 Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 15hp

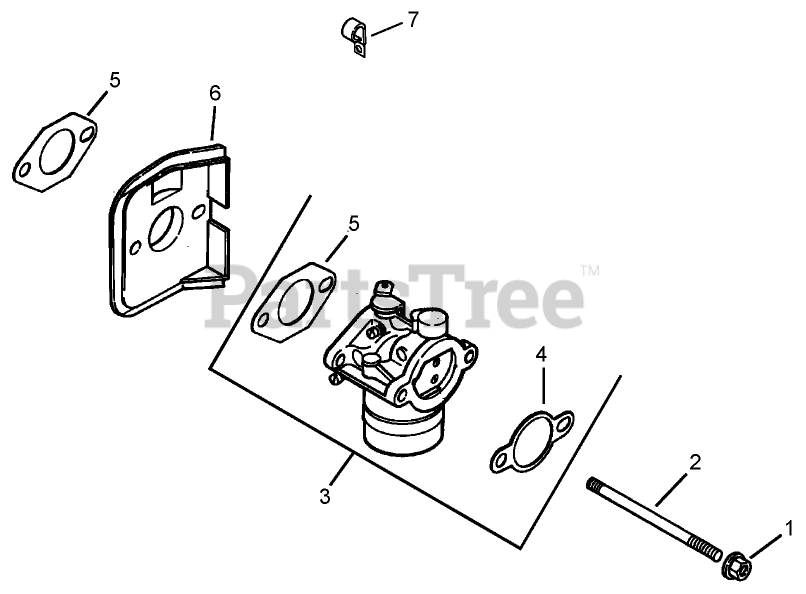

FUEL SYSTEM ASSEMBLY KOHLER CV15S 41630 Parts Diagram

  • Title

1

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 11

0

2

Kohler M-629116-S

Stud (M6x1.0x116)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, only 2 left!

0

3

Kohler 12 853 140-S

Carburetor w/Gasket Kit (Includes 4, 5)

Note: Obtain parts from www.kohlerplus.com

$263.99

$

In Stock, only 1 left!

0

4

Kohler 12 041 02-S

Gasket-Base, Air Cleaner

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 8

0

5

Kohler 12 041 01-S

Gasket-Carburetor

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 16

0

6

Kohler 12 265 04-S

Deflector-Heat
(Superseded to 12 265 08-S)

Note: Obtain parts from www.kohlerplus.com

$9.49

$

In Stock, only 2 left!

0

7

Kohler 47 154 01-S

CLIP-CABLE

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, Qty 5

0

Kohler 12 757 02-S

Float Repair Kit

Note: Obtain parts from www.kohlerplus.com

$13.99

$

In Stock, only 3 left!

0

Kohler 12 757 02-S

Float Repair Kit

Note: Not illustrated

$13.99

$

In Stock, only 3 left!

0

Kohler 12 757 03-S

Carburetor Repair Kit

Note: Not illustrated

$34.99

$

In Stock, Qty 8

0

Kohler 12 757 03-S

Carburetor Repair Kit

Note: Obtain parts from www.kohlerplus.com

$34.99

$

In Stock, Qty 8

0

Kohler 12 757 08-S

Choke Repair Kit

Note: Obtain parts from www.kohlerplus.com

$35.99

$

Usually ships in 2-5 days

0

Kohler 12 757 08-S

Choke Repair Kit

Note: Not illustrated

$35.99

$

Usually ships in 2-5 days

0

Kohler 12 757 36-S

Throttle Shaft Bearing Kit

Note: Not illustrated

$13.99

$

Usually ships in 2-5 days

0

Kohler 12 757 36-S

Throttle Shaft Bearing Kit

Note: Obtain parts from www.kohlerplus.com

$13.99

$

Usually ships in 2-5 days

0

Kohler 12 757 37-S

Bowl Replacement Repair Kit

Note: Obtain parts from www.kohlerplus.com

$15.99

$

In Stock, Qty 6

0

Kohler 12 757 37-S

Bowl Replacement Repair Kit

Note: Not illustrated

$15.99

$

In Stock, Qty 6

0

Kohler 12 755 92-S

High Altitude Kit

Note: Not illustrated

$15.99

$

Usually ships in 2-5 days

0

Kohler 12 755 92-S

High Altitude Kit

Note: Obtain parts from www.kohlerplus.com

$15.99

$

Usually ships in 2-5 days
