30187 - Toro ProLine Walk-Behind Mower, Hydro Drive, 15hp (SN: 260000001 - 260999999) (2006) EXHAUST ASSEMBLY KOHLER CV15S 41630 Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 15hp

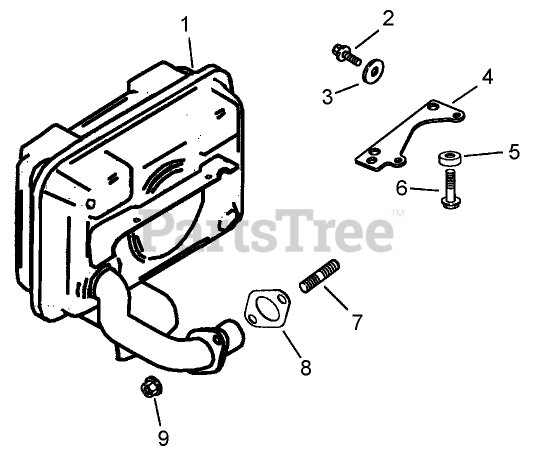

EXHAUST ASSEMBLY KOHLER CV15S 41630 Parts Diagram

  • Title

1

1206840-S

Muffler

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

2

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 15

0

3

Kohler X-25-78-S

Washer-Plain (1/4in)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, only 2 left!

0

4

Kohler 12 126 71-S

Bracket-Muffler

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

5

Kohler 12 112 20-S

Spacer

Note: Obtain parts from www.kohlerplus.com

$7.99

$

In Stock, only 1 left!

0

6

Kohler M-645025-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X25)
(Superseded to 25 086 395-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

7

Kohler 25 072 04-S

STUD (M8X1.25X33)
(Superseded to 25 072 24-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, only 3 left!

0

8

Kohler 12 041 03-S

Gasket-Manifold, Exhaust

Note: Obtain parts from www.kohlerplus.com

$7.49

$

In Stock, Qty 11

0

9

Kohler M-841080-S

NUT-FLANGE (M8X1.25)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Not illustrated

$3.99

$

Usually ships in 2-5 days

0

Kohler 12 522 18

Block-Short

Note: Not illustrated

$1932.99

$

Usually ships in 2-5 days

0

Kohler 12 522 18

Block-Short

Note: Obtain parts from www.kohlerplus.com

$1932.99

$

Usually ships in 2-5 days

0

Kohler 12 755 93-S

Gasket Set

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

Kohler 12 755 93-S

Gasket Set

Note: Not illustrated

$

$

Not available
