30187 - Toro ProLine Walk-Behind Mower, Hydro Drive, 15hp (SN: 250000001 - 250999999) (2005) CONTROL PANEL ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 15hp

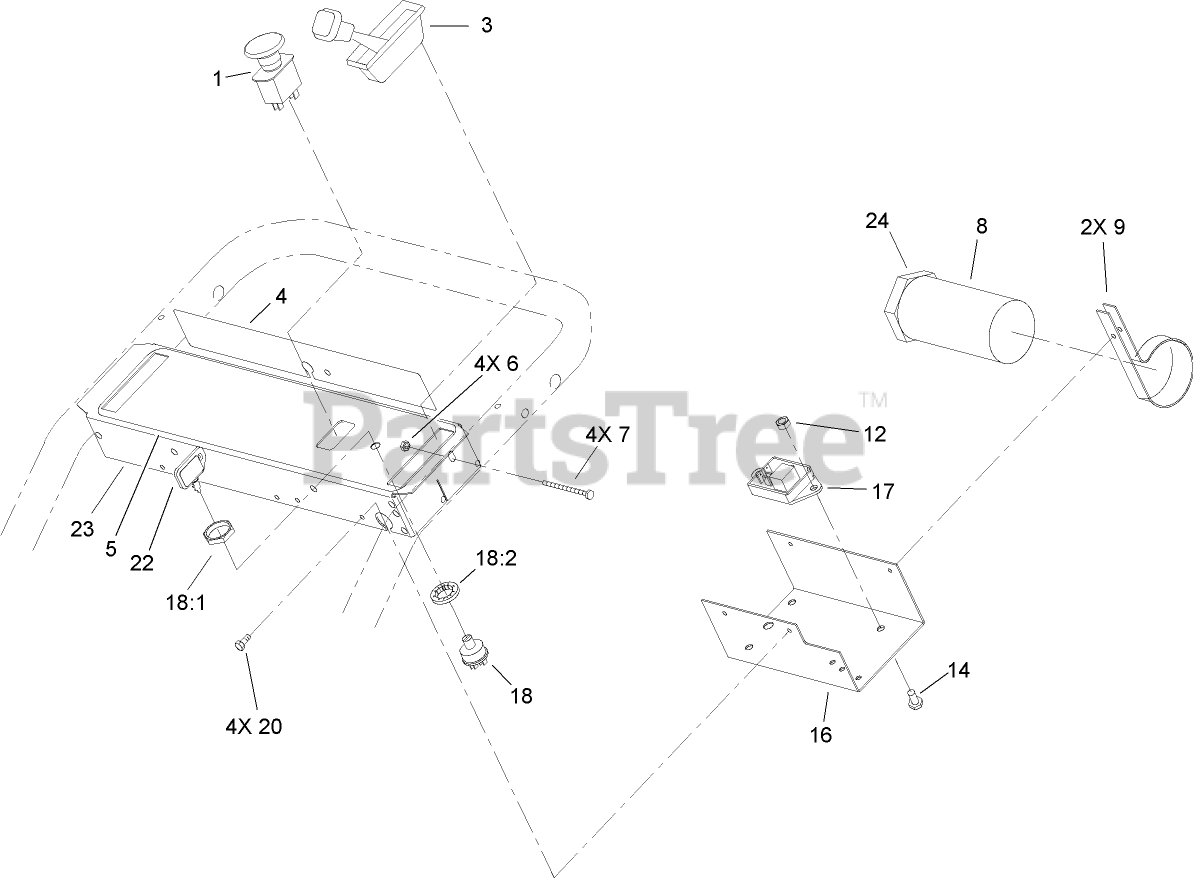

CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 104-8140

SWITCH-PTO

$77.99

$

In Stock, only 1 left!

0

3

Toro 74-0630

CONTROL-THROTTLE

$105.99

$

Usually ships in 3-6 days

0

4

Toro 95-1544

DECAL-WARNING

$

$

Not available

5

Toro 106-0687

DECAL-PANEL, CONTROL

$

$

Not available

6

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 32105-14

SCREW-SHH

$2.99

$

Usually ships in 3-6 days

0

8

Toro 104-7050

TUBE-MANUAL

$9.49

$

Usually ships in 3-6 days

0

9

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

14

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 93-1187-03

PANEL-BOTTOM

$48.99

$

Usually ships in 3-6 days

0

17

Toro 104-8141

MODULE-DELAY

$65.99

$

In Stock, Qty 8

0

18

Toro 23-0660

SWITCH-STARTER

$22.99

$

In Stock, only 1 left!

0

18:1

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

18:2

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

20

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

22

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

23

Toro 104-8177-03

PANEL-CONTROL

$

$

Not available

24

Toro 104-7048

CAP-HOUSING

$5.49

$

Usually ships in 3-6 days

0
