30187 - Toro ProLine Walk-Behind Mower, Hydro Drive, 15hp (SN: 240000001 - 240999999) (2004) STARTING SYSTEM ASSEMBLY KOHLER CV15S 41630 Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 15hp

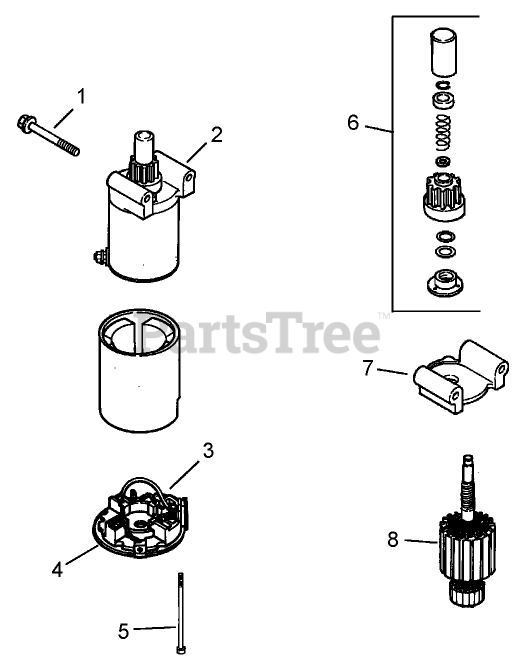

STARTING SYSTEM ASSEMBLY KOHLER CV15S 41630 Parts Diagram

  • Title

1

Kohler M-839070-S

Screw-HF (M8x1.25x70)

Note: Obtain parts from www.kohlerplus.com

$9.49

$

Usually ships in 2-5 days

0

2

Kohler 12 098 21-S

Starter ASM (Includes 3-8)

Note: Obtain parts from www.kohlerplus.com

$303.99

$

In Stock, only 1 left!

0

3

Kohler 12 221 02-S

Brush Kit

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

4

Kohler 12 227 14-S

Cap ASM

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

5

Kohler 12 211 01-S

Bolt

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

6

Kohler 12 755 53-S

Drive Kit

Note: Obtain parts from www.kohlerplus.com

$169.99

$

Usually ships in 2-5 days

0

7

Kohler 12 227 19-S

Cap-End, Drive

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

8

Kohler 12 170 05-S

Armature

Note: Obtain parts from www.kohlerplus.com

$

$

Not available
