30187 - Toro ProLine Walk-Behind Mower, Hydro Drive, 15hp (SN: 220000001 - 220999999) (2002) HYDRAULIC AND DRIVE SYSTEM ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 15hp

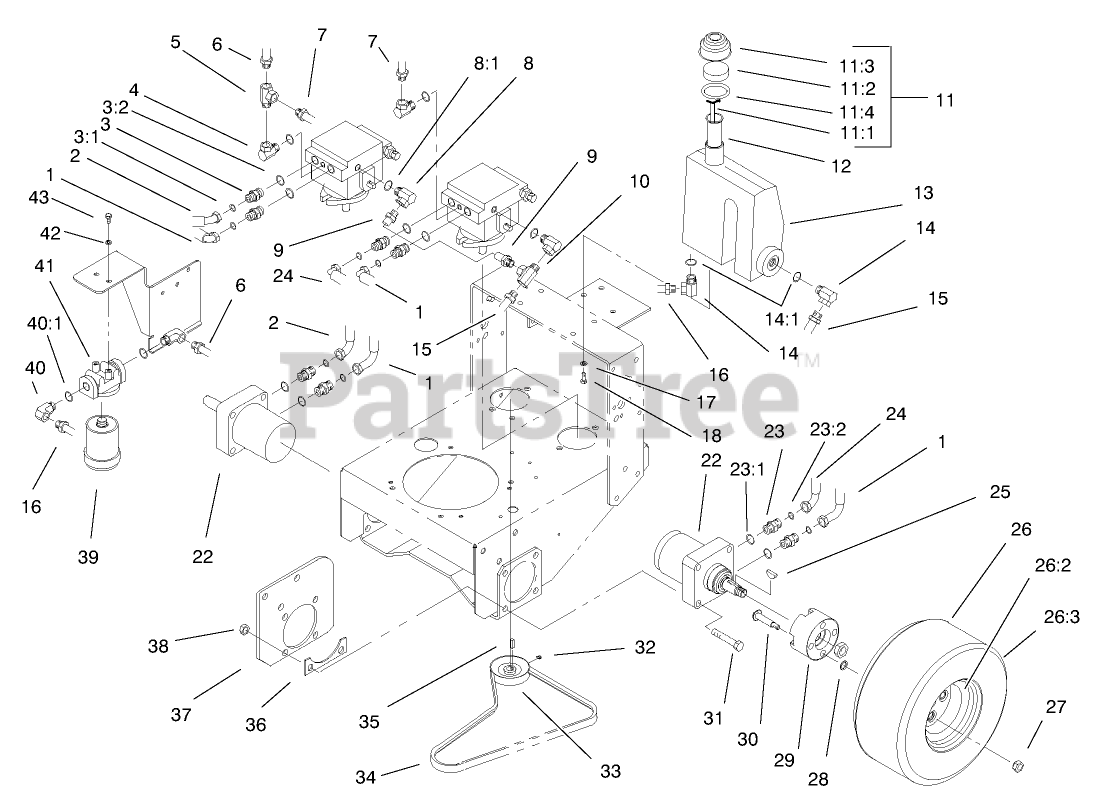

HYDRAULIC AND DRIVE SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 82-4550

HYDRAULIC HOSE ASM
(Superseded to 106-0825)

$

$

Not available

2

Toro 82-4540

HYDRAULIC HOSE ASM
(Superseded to 106-0824)

$

$

Not available

3

Toro 340-4

FITTING-STRAIGHT

$11.99

$

In Stock, only 3 left!

0

3:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

3:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

4

Toro 354-116

SWIVEL-PIPE, FEMALE

$

$

Not available

5

Toro 2815-16

FITTING-HYD, TEE

$60.99

$

Usually ships in 3-6 days

0

6

Toro 95-5880

HYD HOSE ASM

$

$

Not available

7

Toro 82-4170

HYD HOSE ASM

$

$

Not available

8

Toro 354-115

FITTING-HYD, 90 DEG
(Superseded to 92-3508)

$

$

Not available

8:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

9

Toro 82-4201

HYD HOSE ASM

$

$

Not available

10

Toro 2815-15

FITTING-HYD, TEE

$

$

Not available

11

Toro 76-0200

OIL CAP ASM

$79.99

$

In Stock, only 1 left!

0

11:1

Toro 76-0240

DIPSTICK

$39.99

$

Usually ships in 3-6 days

0

11:2

Toro 76-0220

FOAM-FILTER, OIL CAP

$9.49

$

Usually ships in 3-6 days

0

11:3

Toro 76-0190

CAP-OIL

$15.99

$

Usually ships in 3-6 days

0

11:4

Toro 237-71

O-RING

$8.99

$

Usually ships in 3-6 days

0

12

Toro 29-0590

SCREEN-FILLER

$167.99

$

Usually ships in 3-6 days

0

13

Toro 95-1532

RESERVOIR-OIL

$812.99

$

Usually ships in 3-6 days

0

14

Toro 354-118

FITTING-HYD, 90 DEG

$

$

Not available

14:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

15

Toro 82-4194

HYD HOSE ASM

$

$

Not available

16

Toro 82-4200

HYD HOSE ASM

$

$

Not available

17

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

18

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

22

Toro 82-8230

WHEEL MOTOR ASM

$

$

Not available

23

Toro 340-6

FITTING-STRAIGHT

$19.99

$

Usually ships in 3-6 days

0

23:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

23:2

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 9

0

24

Toro 82-4560

HYDRAULIC HOSE ASM
(Superseded to 106-0826)

$208.99

$

Usually ships in 3-6 days

0

25

Toro 3257-8

KEY-WOODRUFF

$5.49

$

In Stock, Qty 6

0

26

WHEEL AND TIRE ASM

Note: Not serviced separately

$

$

Not available

26:2

Toro 242-87

WHEEL

$

$

Not available

26:3

Toro 231-117

TIRE

$104.99

$

Usually ships in 3-6 days

0

26:1

Toro 232-27

STEM-VALVE
(Superseded to 5108)

Note: Not illustrated

$6.99

$

In Stock, Qty 17

0

27

Toro 242-50

NUT-LUG

$1.99

$

In Stock, Qty 20+

0

28

Toro 32112-17

PUSHNUT

$1.49

$

Usually ships in 3-6 days

0

29

Toro 82-3830

HUB-WHEEL

$507.99

$

Usually ships in 3-6 days

0

30

Toro 3213-8

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

31

Toro 325-11

SCREW-HH

$2.99

$

In Stock, Qty 7

0

32

Toro 3241-5

SCREW-SET

$2.49

$

Usually ships in 3-6 days

0

33

Toro 95-1528

PULLEY-PUMP

$107.99

$

Usually ships in 3-6 days

0

34

Toro 82-4110

BELT-V

$36.99

$

Usually ships in 3-6 days

0

35

Toro 80-6090

KEY-PUMP

$9.49

$

In Stock, only 1 left!

0

36

Toro 86-4740-01

SPACER-FRAME

$

$

Not available

37

Toro 86-4730-01

PLATE-FRAME

$

$

Not available

38

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

39

Toro 67-8110

CARTRIDGE-FILTER, OIL

$23.99

$

In Stock, only 3 left!

0

40

Toro 354-117

FITTING-HYD, 90 DEG

$

$

Not available

40:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

41

Toro 86-9080

HEAD-FILTER

$117.99

$

Usually ships in 3-6 days

0

42

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

43

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
