30187 - Toro ProLine Walk-Behind Mower, Hydro Drive, 15hp (SN: 220000001 - 220999999) (2002) FUEL TANK, HYDRO PUMP, AND PTO ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 15hp

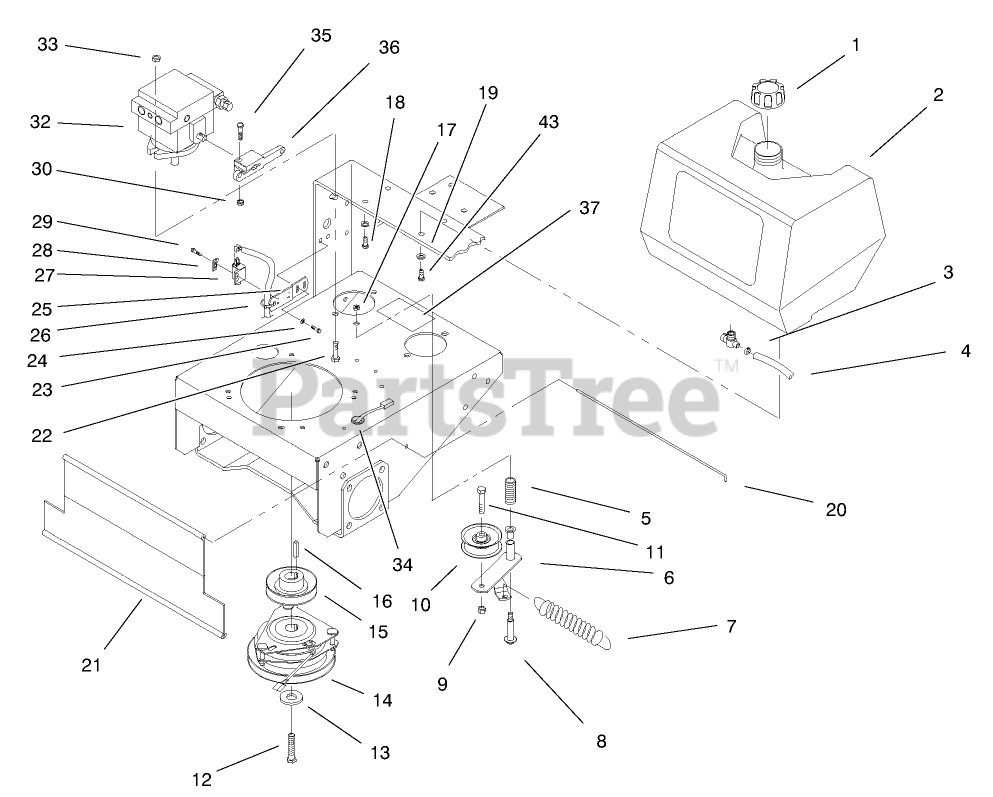

FUEL TANK, HYDRO PUMP, AND PTO ASSEMBLY Parts Diagram

  • Title
1

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 11

0

2

Toro 95-2802

TANK-FUEL

$

$

Not available

3

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

4

Toro 47-2982

HOSE-FUEL
(Superseded to 110-4894)

$9.99

$

In Stock, only 1 left!

0

5

Toro 88-1880

SPRING-COMPRESSION

$49.99

$

Usually ships in 3-6 days

0

6

Toro 86-4770

IDLER LEVER ASM

$107.99

$

Usually ships in 3-6 days

0

7

Toro 68-2190

SPRING

$74.99

$

In Stock, only 1 left!

0

8

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 62-4540

PULLEY

$92.99

$

In Stock, only 2 left!

0

11

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 3212-9

SCREW-HH

$12.99

$

In Stock, only 2 left!

0

13

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

14

Toro 54-3200

CLUTCH/BRAKE
(Superseded to 105-2635)

$576.99

$

In Stock, only 1 left!

0

15

Toro 44-5940

Pulley

$151.99

$

Usually ships in 3-6 days

0

16

Toro 608006

KEY-SQUARE

$5.49

$

In Stock, only 1 left!

0

17

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

18

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

20

Toro 95-1529

ROD-SHIELD

$5.49

$

Usually ships in 3-6 days

0

21

Toro 95-1526

SHIELD-TRAILING

$80.99

$

Usually ships in 3-6 days

0

22

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

23

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

24

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 82-4580-03

Bracket-Neutral

$

$

Not available

26

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

27

Toro 65-7410

SWITCH-POLE, SINGLE
(Superseded to 1-513051)

$19.99

$

In Stock, Qty 20+

0

28

Toro 82-4570

PLATE-SWITCH

$14.99

$

Usually ships in 3-6 days

0

29

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

30

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

32

Toro 95-1538

HYD PUMP ASM

$1513.99

$

In Stock, only 1 left!

0

33

Toro 32128-42

NUT-HF

$1.49

$

In Stock, only 3 left!

0

34

Toro 237-124

GROMMET

$2.99

$

In Stock, only 1 left!

0

35

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 82-3790

ARM-PUMP

$

$

Not available

37

Toro 95-1543

DECAL-ADJUSTMENT, VALVE

$

$

Not available

43

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
