30187 - Toro ProLine Walk-Behind Mower, Hydro Drive, 15hp (SN: 200000001 - 200999999) (2000) TRACTION DRIVE MOTOR Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 15hp

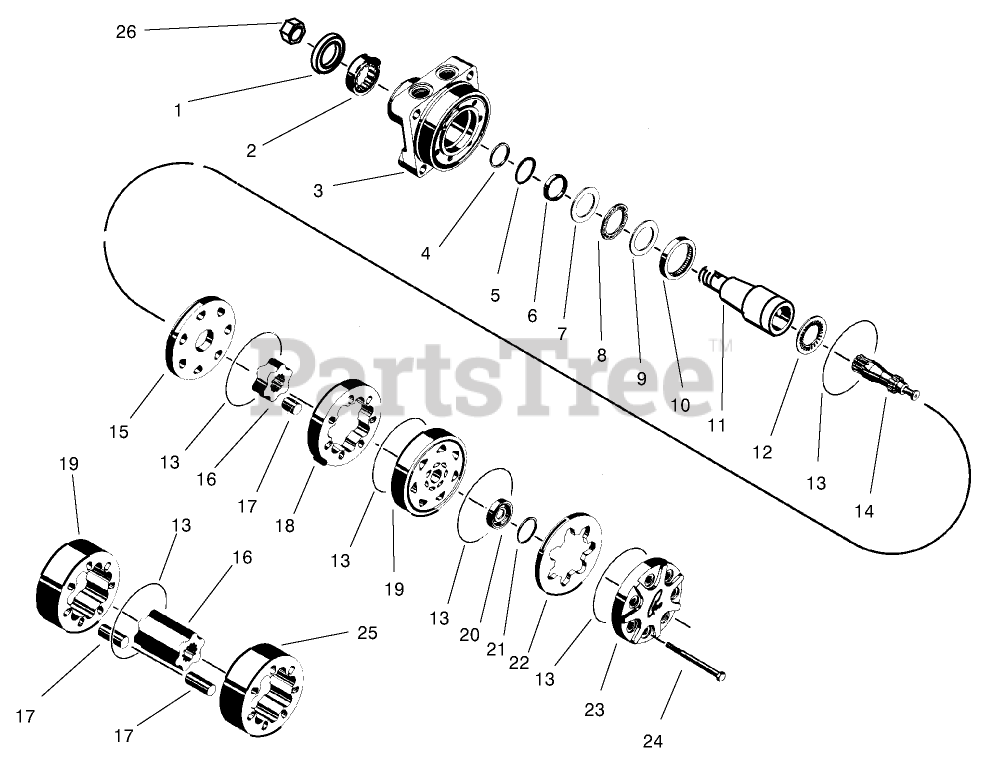

TRACTION DRIVE MOTOR Parts Diagram

  • Title

1

Seal ASM

$

$

Not available

2

Bearing

$

$

Not available

3

Housing

$

$

Not available

4

Washer-Back Up

$

$

Not available

5

Washer-Back Up

$

$

Not available

6

Seal ASM

$

$

Not available

7

Washer-Thrust

$

$

Not available

8

Bearing-Thrust

$

$

Not available

9

Washer-Thrust

$

$

Not available

10

Bearing-Inner

$

$

Not available

11

Coupling-Shaft

$

$

Not available

12

Bearing-Thrust

$

$

Not available

13

"O"Ring

$

$

Not available

14

Link-Drive

$

$

Not available

15

Plate Wear

$

$

Not available

16

Rotor

$

$

Not available

17

Vane

$

$

Not available

18

Stator

$

$

Not available

19

Manifold

$

$

Not available

20

Commutator

$

$

Not available

21

Seal-Commutator

$

$

Not available

22

Commutator-Ring

$

$

Not available

23

Cover-End

$

$

Not available

24

Bolt-Special

$

$

Not available

25

Stator Half

$

$

Not available

26

Toro 85-7310

NUT-MOTOR, WHEEL

$27.99

$

Usually ships in 3-6 days

0

Toro 85-7320

Kit-Seal (Incl. Ref. #1, 4, 6, 13 & 20)
(Superseded to 106-1989)

Note: Not illustrated

$175.99

$

Usually ships in 3-6 days

0
