30187 - Toro ProLine Walk-Behind Mower, Hydro Drive, 15hp (SN: 200000001 - 200999999) (2000) STARTER SYSTEM Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 15hp

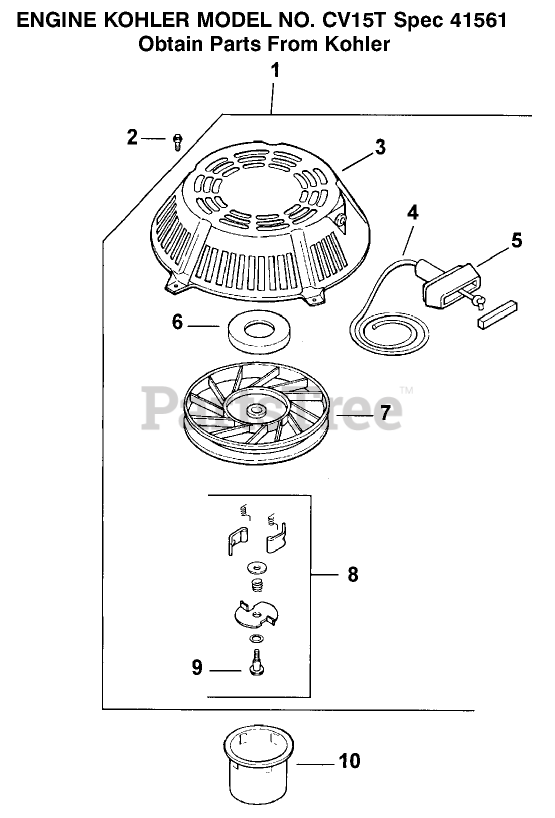

STARTER SYSTEM Parts Diagram

  • Title

1

1216501

Starter Incl 3-9

Note: ENGINE KOHLER MODEL NO. CV15T Spec 41561 Obtain Parts From Kohler.

$

$

Not available

2

Toro M-0545010

Screw

Note: ENGINE KOHLER MODEL NO. CV15T Spec 41561 Obtain Parts From Kohler.

$

$

Currently unavailable

3

1208101

Housing-Starter

Note: ENGINE KOHLER MODEL NO. CV15T Spec 41561 Obtain Parts From Kohler.

$

$

Not available

4

1216001

Rope-Starter

Note: ENGINE KOHLER MODEL NO. CV15T Spec 41561 Obtain Parts From Kohler.

$

$

Not available

5

2516601

Handle-Recoil

Note: ENGINE KOHLER MODEL NO. CV15T Spec 41561 Obtain Parts From Kohler.

$

$

Not available

6

1208906

Spring & Keeper

Note: ENGINE KOHLER MODEL NO. CV15T Spec 41561 Obtain Parts From Kohler.

$

$

Not available

7

1209301

Pulley

Note: ENGINE KOHLER MODEL NO. CV15T Spec 41561 Obtain Parts From Kohler.

$

$

Not available

8

1275706

Kit-Dog Replacement (incl. Ref.#9)

Note: ENGINE KOHLER MODEL NO. CV15T Spec 41561 Obtain Parts From Kohler.

$

$

Not available

9

4108609

Screw-Posidrive

Note: ENGINE KOHLER MODEL NO. CV15T Spec 41561 Obtain Parts From Kohler.

$

$

Not available

10

1510901

Cup-Driver

Note: ENGINE KOHLER MODEL NO. CV15T Spec 41561 Obtain Parts From Kohler.

$

$

Not available

1211307

Decal-Starting

Note: ENGINE KOHLER MODEL NO. CV15T Spec 41561 Obtain Parts From Kohler.

$

$

Not available

1211307

Decal-Starting

Note: Not illustrated

$

$

Not available
