30187 - Toro ProLine Walk-Behind Mower, Hydro Drive, 15hp (SN: 099000001 - 099999999) (1999) HANDLE ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 15hp

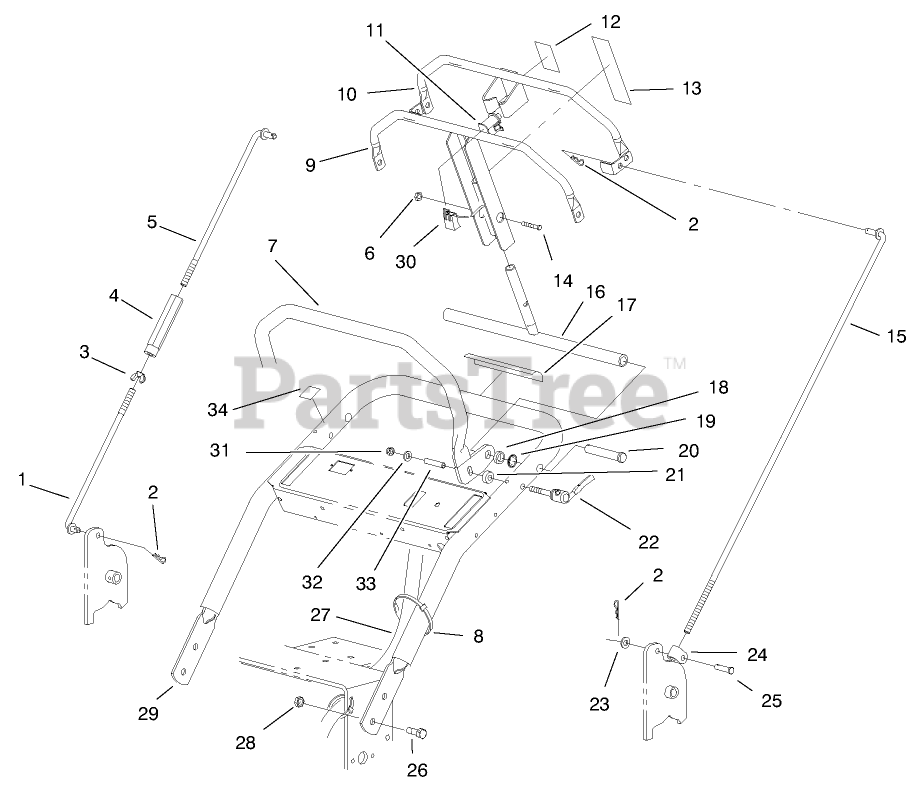

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 95-1506

ROD-CONTROL, LOWER

$69.99

$

Usually ships in 3-6 days

0

2

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

3

Toro 32103-3

NUT-WING

$1.99

$

Usually ships in 3-6 days

0

4

Toro 95-1504

TURNBUCKLE

$71.99

$

Usually ships in 3-6 days

0

5

Toro 95-1505

ROD-CONTROL, UPPER

$

$

Not available

6

Toro 32153-1

NUT-LOCK, SIDE

$3.99

$

In Stock, only 1 left!

0

7

Toro 95-1536

Handle
(Superseded to 95-1536-03)

$

$

Not available

8

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

9

Toro 95-1507-03

CONTROL BAR ASM

$

$

Not available

10

Toro 95-1510-03

BAIL ASM

$250.99

$

Usually ships in 3-6 days

0

11

Toro 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 10

0

12

Toro 95-1523

DECAL-DRIVE, TRACTION

$11.99

$

Usually ships in 3-6 days

0

13

Toro 95-1524

DECAL-T BAR

$11.99

$

Usually ships in 3-6 days

0

14

$2.99

$

In Stock, only 2 left!

0

15

Toro 94-9095

ROD-CONTROL

$

$

Not available

16

Toro 95-1513-03

PIVOT ASM

$164.99

$

Usually ships in 3-6 days

0

17

Toro 82-4590

DECAL-WARNING

$

$

Not available

18

Toro 95-5855-03

Spacer-Pivot
(Superseded to 95-5855)

$12.99

$

Usually ships in 3-6 days

0

19

Toro 32151-80

NUT-PUSH-ON, CIRCULAR

$1.49

$

In Stock, Qty 7

0

20

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

21

Toro 82-3840

SPACER

$3.99

$

In Stock, only 1 left!

0

22

Toro 95-5853

QUICK RELEASE LOCK ASM

$

$

Not available

23

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

24

Toro 74-0521

FITTING-ROD

$14.99

$

Usually ships in 3-6 days

0

25

Toro 283-6

PIN-CLEVIS

$1.99

$

In Stock, Qty 11

0

26

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

27

Toro 95-2807

HARNESS - WIRE

$

$

Not available

28

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

29

Toro 95-5856-03

HANDLE-UPPER

$

$

Not available

30

Toro 218-595

CONNECTOR-BODY

$

$

Not available

31

Toro 33023-00

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

32

Toro 3290-436

WASHER-BELLEVILLE

$3.99

$

In Stock, only 1 left!

0

33

Toro 95-5854

SLEEVE

$

$

Not available

34

Toro 95-5862

DECAL-LOCK, SPEED

$

$

Not available
