30187 - Toro ProLine Walk-Behind Mower, Hydro Drive, 15hp (SN: 089000001 - 089999999) (1998) BATTERY Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 15hp

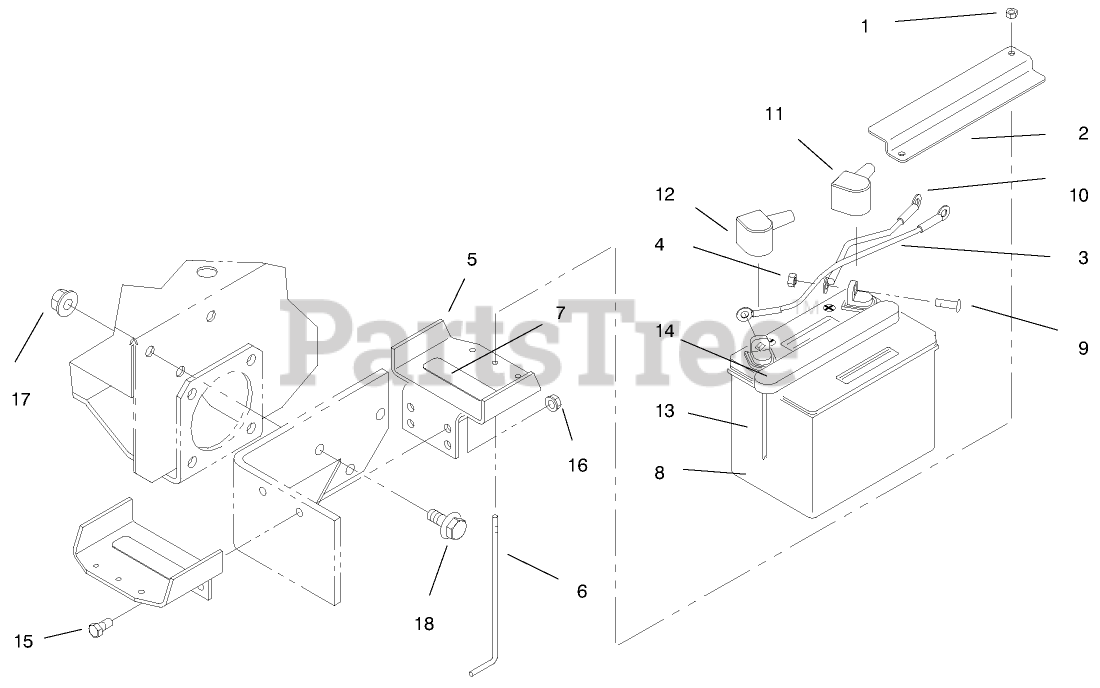

BATTERY Parts Diagram

  • Title

1

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

2

Toro 82-4620-01

STRAP - BATTERY

$

$

Not available

3

Toro 54-3094

CABLE

$43.99

$

Usually ships in 3-6 days

0

4

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

5

Toro 92-2350-01

HOLDER-BATTERY

$

$

Not available

6

Toro 12-5950

ROD-SUPPORT, BATTERY

$23.99

$

Usually ships in 3-6 days

0

7

Toro 51-4210

PAD-TANK, FUEL

$

$

Not available

8

Toro 82-4640

Battery
(Superseded to 104-8162)

$

$

Not available

9

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 93-1189

WIRE ASM

$

$

Not available

11

Toro 77-0981

BOOT-TERMINAL, RED

$17.99

$

Usually ships in 3-6 days

0

12

Toro 77-0980

BOOT-TERMINAL, BLACK

$

$

Not available

13

Toro 68-3810

TUBE-VENT

$

$

Not available

14

Toro 84-1830

CAP

$

$

Not available

15

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

18

Toro 3234-32

SCREW-HHF

$10.99

$

In Stock, only 1 left!

0
