30187 - Toro ProLine Walk-Behind Mower, Hydro Drive, 14hp (SN: 079000001 - 079500000) (1997) STARTER SYSTEM ENGINE KOHLER MODEL NO. CV14S-1429 Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 14hp

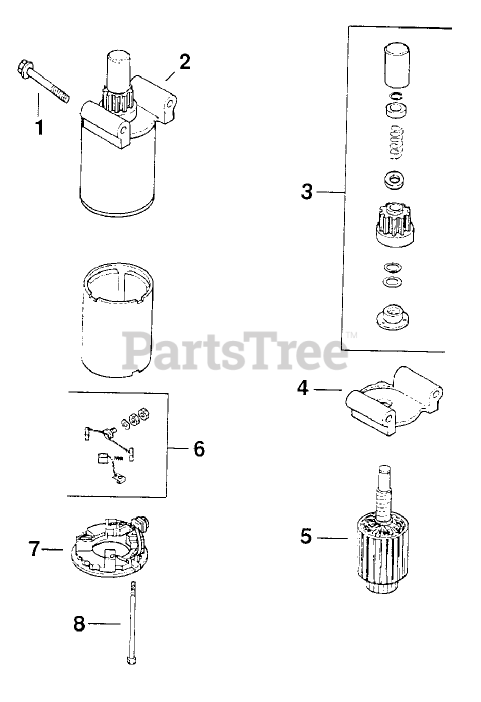

STARTER SYSTEM ENGINE KOHLER MODEL NO. CV14S-1429 Parts Diagram

1213331

Decal-H.p.

Note: Not Illustrated.

$

$

Not available

1213331

Decal-H.p.

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

1

Kohler M-0839070

SCREW-HHF

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2

1209812

Starter (Incl. Ref.#3-8)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

3

1275553

Kit-Drive

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

1227705

Cap-Drive End

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5

1217003

Armature

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

5275528

Kit-Brush

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

7

1222710

Cap-Commutator End

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

Kohler 12 086 25

Screw
(Superseded to 12 086 25-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5235701

Lubricant

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5235701

Lubricant

Note: Not Illustrated.

$

$

Not available
