30187 - Toro ProLine Walk-Behind Mower, Hydro Drive, 14hp (SN: 079000001 - 079500000) (1997) IGNITION/ELECTRICAL ENGINE KOHLER MODEL NO. CV14S-1429 Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 14hp

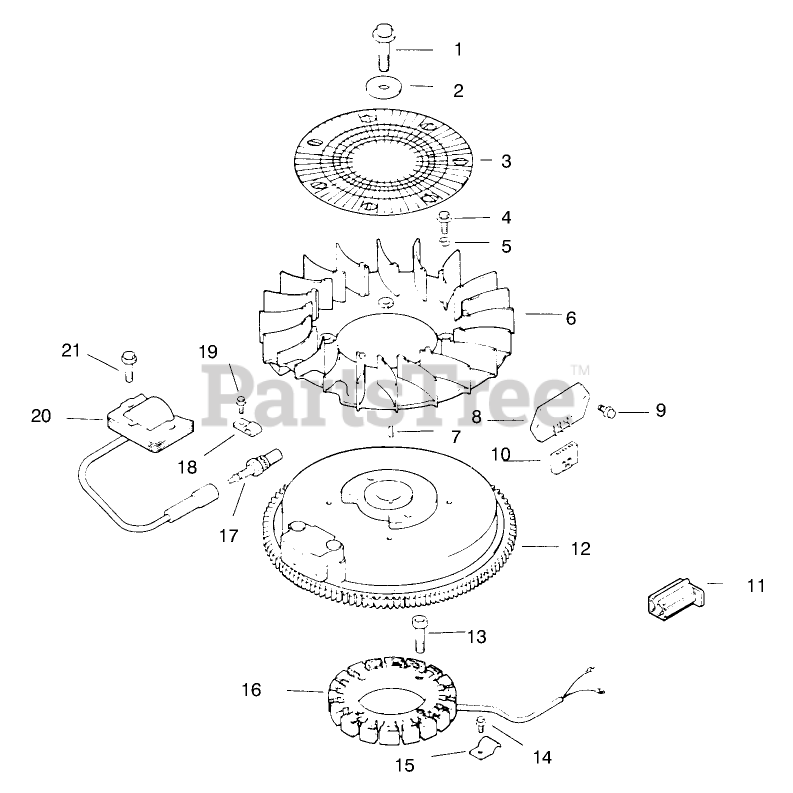

IGNITION/ELECTRICAL ENGINE KOHLER MODEL NO. CV14S-1429 Parts Diagram

  • Title

1

Kohler 12 086 14

Screw
(Superseded to 25 086 361-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 12

0

2

1248603

Washer-Flat

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

3

1216203

Screen-Grass

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

Kohler M-0639016

Screw
(Superseded to M-639016)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 7

0

5

1211201

Spacer

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

1215701

Fan

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

7

Kohler X-42-15

Key
(Superseded to X-42-15-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 8

0

8

1240301

Rectifier-Unregulated

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

9

Kohler M-0639016

Screw
(Superseded to M-639016)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 7

0

10

Kohler 236602

Connector
(Superseded to 236602-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$24.99

$

In Stock, only 1 left!

0

11

4115503

Connector

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

12

1202516

Flywheel ASM

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

13

Kohler M-0548025

Screw
(Superseded to M-548025)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

14

Kohler M-0545010

Screw
(Superseded to M-545010)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, only 2 left!

0

15

1215402

Clip-Stator Harness

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

16

2408501

Stator-15 Amp

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

17

Kohler 12 132 02

Plug-Spark
(Superseded to 12 132 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, Qty 20+

0

18

Kohler X-728-1

Clip
(Superseded to X-728-1-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

19

Kohler M-0545010

Screw
(Superseded to M-545010)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, only 2 left!

0

20

1258402

Module-Ignition

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

21

Kohler SM-0545020

Screw
(Superseded to 25 086 473-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 6

0

Kohler 2551805

Lead-Black

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

Connector(5"-14 Gauge

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

Connector(5"-14 Gauge

Note: Not illustrated

$

$

Not available

1251801

Lead-White

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

Ground to Kill (9.5"-18 Gauge)

Note: Not illustrated

$

$

Not available

Ground to Kill (9.5"-18 Gauge)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available
