30187 - Toro ProLine Walk-Behind Mower, Hydro Drive, 14hp (SN: 079000001 - 079500000) (1997) CRANKCASE ENGINE KOHLER MODEL NO. CV14S-1429 Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 14hp

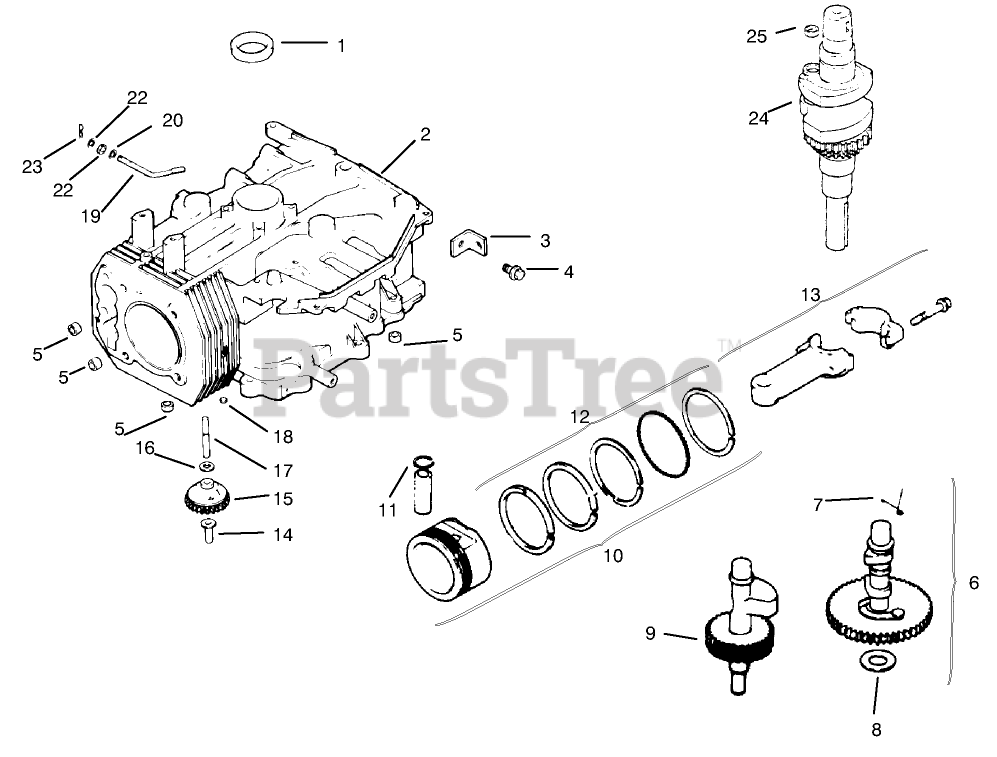

CRANKCASE ENGINE KOHLER MODEL NO. CV14S-1429 Parts Diagram

  • Title

1

1203203

Seal-Crankshaft

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2

1252221

Short Block

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

3

1244502

Strap-Lifting

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

Kohler M-0839025

Screw
(Superseded to M-839025)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

5

1238003

Pin-Dowel

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

1275549

Camshaft Assembly

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

7

1208918

Spring-Actuating

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

Kohler 12 422 08

Shim-Camshaft
(Superseded to 12 422 08-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

Kohler 12 422 09

Shim-Camshaft
(Superseded to 12 422 09-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

Kohler 12 422 09

Shim-Camshaft
(Superseded to 12 422 09-S)

Note: Not illustrated

$2.49

$

In Stock, only 1 left!

0

Kohler 12 422 10

Shim-Camshaft
(Superseded to 12 422 10-S)

Note: Not illustrated

$2.49

$

In Stock, only 1 left!

0

Kohler 12 422 10

Shim-Camshaft
(Superseded to 12 422 10-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

Kohler 12 422 11

Shim-Camshaft
(Superseded to 12 422 11-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

Kohler 12 422 11

Shim-Camshaft
(Superseded to 12 422 11-S)

Note: Not illustrated

$2.49

$

Usually ships in 2-5 days

0

Kohler 12 422 12

Shim-Camshaft
(Superseded to 12 422 12-S)

Note: Not illustrated

$2.99

$

Usually ships in 2-5 days

0

Kohler 12 422 12

Shim-Camshaft
(Superseded to 12 422 12-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

Usually ships in 2-5 days

0

Kohler 12 422 13

Shim-Camshaft
(Superseded to 12 422 13-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

Usually ships in 2-5 days

0

Kohler 12 422 13

Shim-Camshaft
(Superseded to 12 422 13-S)

Note: Not illustrated

$2.99

$

Usually ships in 2-5 days

0

Kohler 12 422 07

Shim-Camshaft
(Superseded to 12 422 07-S)

Note: Not illustrated

$4.49

$

Usually ships in 2-5 days

0

Kohler 12 422 07

Shim-Camshaft
(Superseded to 12 422 07-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

Usually ships in 2-5 days

0

9

1214419

Shaft Balance

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

10

1284701

Set Piston w/Ring STD

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

1284702

Set-Piston w/Ring .25

Note: Not illustrated

$

$

Not available

1284702

Set-Piston w/Ring .25

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

1284703

Set-Piston w/Ring .50

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

1284703

Set-Piston w/Ring .50

Note: Not illustrated

$

$

Not available

11

1201802

Retainer-Piston Pin

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

12

1210801

Ring Set STD

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

1210802

Ring Set .25

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

1210802

Ring Set .25

Note: Not illustrated

$

$

Not available

1210803

Ring Set .50

Note: Not illustrated

$

$

Not available

1210803

Ring Set .50

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

13

1206705

Rod Connecting STD

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

1206706

Rod Connecting .25

Note: Not illustrated

$

$

Not available

1206706

Rod Connecting .25

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

14

Kohler 12 380 01

Pin-Governor
(Superseded to 12 380 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, Qty 8

0

15

1204305

Gear, governor

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

16

Kohler M-0631005

Washer
(Superseded to M-631005)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

17

Kohler 12 144 02

Shaft-Gear, Governor
(Superseded to 12 144 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 8

0

18

Kohler 52 139 09

Plug
(Superseded to 52 139 09-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, only 2 left!

0

19

1214401

Shaft-Governor Cross

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

20

Kohler X-25-102

Washer
(Superseded to X-25-102-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 5

0

21

1203201

Seal-Cross Shaft

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

22

Kohler SM-0631015

Washer

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

23

1238004

Pin-Hitch

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

24

1201429

Crankshaft ASM

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

25

1213901

Plug-Cup

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available
