30186 - Toro ProLine Walk-Behind Mower, Hydro Drive, 14hp (SN: 069000407 - 699999999) (1996) STARTING SYSTEM Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 14hp

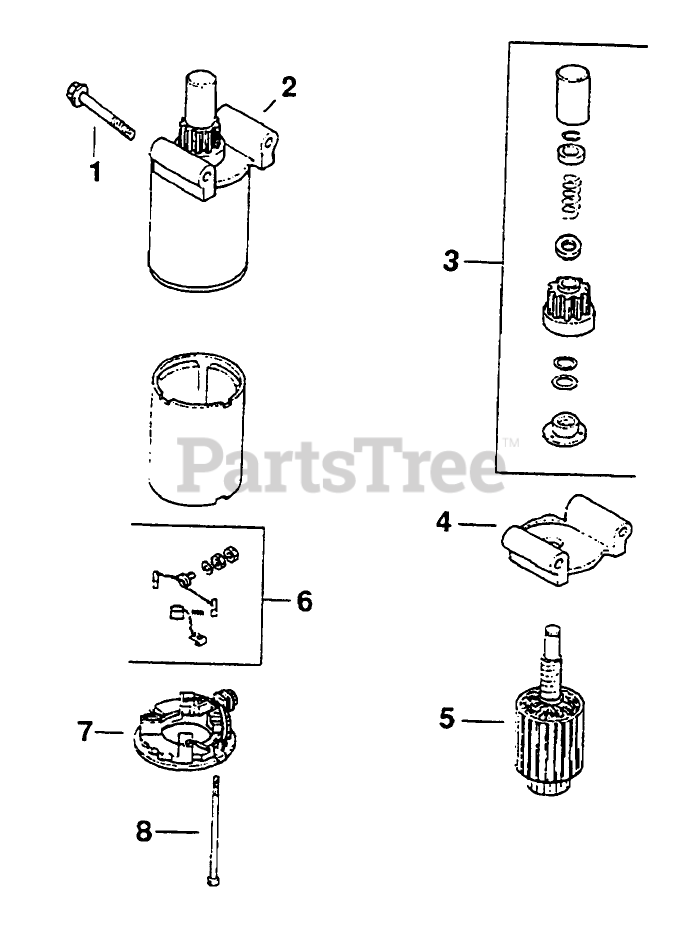

STARTING SYSTEM Parts Diagram

  • Title

1213331

Decal-H.p.

Note: Not Illustrated.

$

$

Not available

1

Kohler M-0839070

SCREW-HHF

$

$

Not available

2

1209812

Starter (Incl. Ref.#3-8)

$

$

Not available

3

1275553

Kit-Drive

$

$

Not available

4

1227705

Cap-Drive End

$

$

Not available

5

1217003

Armature

$

$

Not available

6

5275528

Kit-Brush

$

$

Not available

7

1222710

Cap-Commutator End

$

$

Not available

8

Kohler 12 086 25

Screw
(Superseded to 12 086 25-S)

$

$

Not available

5235701

Lubricant

Note: Not Illustrated.

$

$

Not available
