30186 - Toro ProLine Walk-Behind Mower, Hydro Drive, 14hp (SN: 069000407 - 699999999) (1996) OIL PAN/LUBRICATION Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 14hp

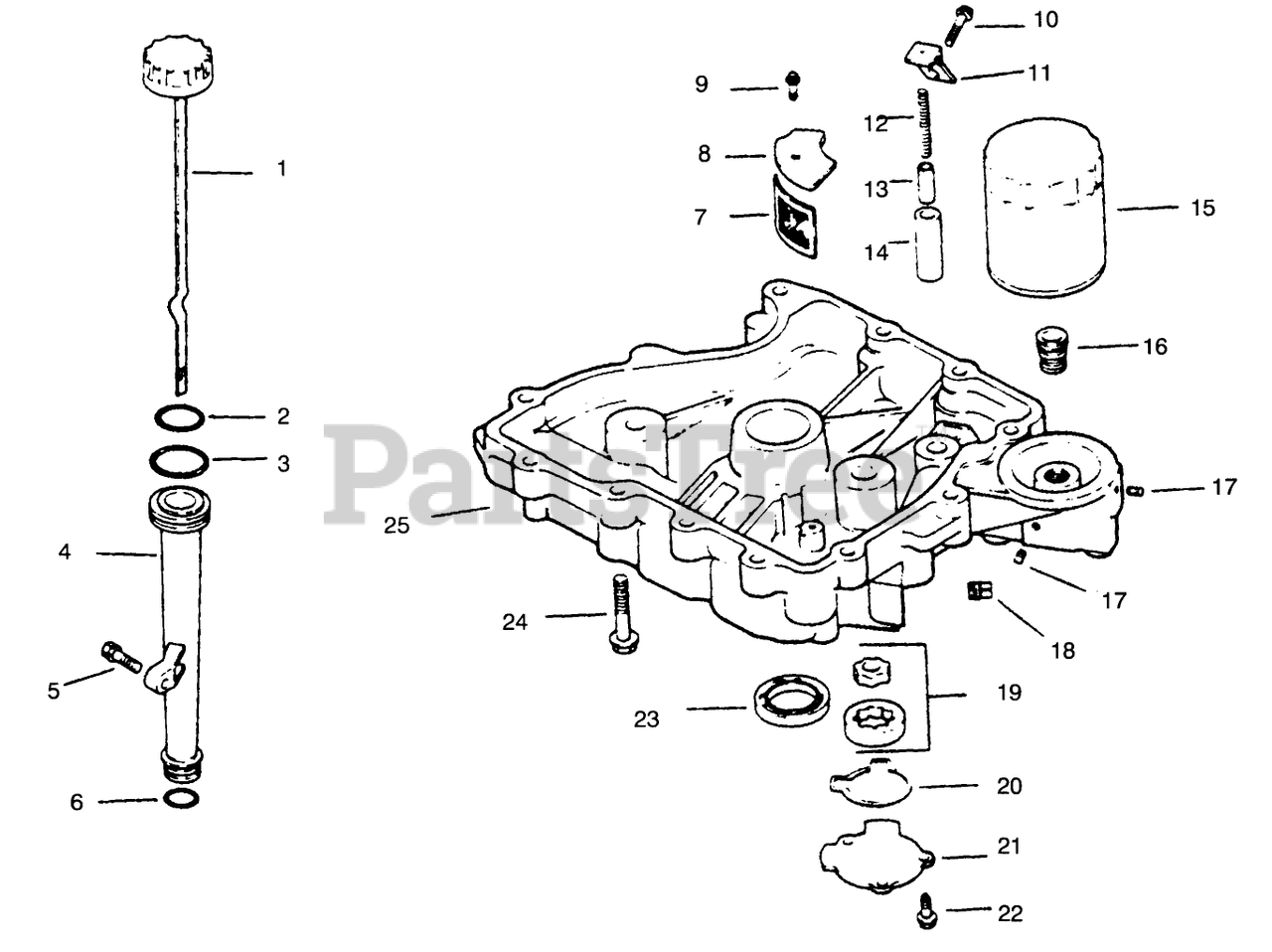

OIL PAN/LUBRICATION Parts Diagram

  • Title

1

1203801

Dipstick INC 2-3

$

$

Not available

2

1215303

"O"Ring

$

$

Not available

3

1215302

"O"Ring

$

$

Not available

4

1212304

Tube-Oil Fill

$

$

Not available

5

Kohler SM-0545020

Screw
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

6

1215301

"O"Ring

$

$

Not available

7

2516207

Screen-Oil

$

$

Not available

8

1209603

Cover-Oil Screen

$

$

Not available

9

Kohler SM-0545016

Screw
(Superseded to SM-545016)

$2.49

$

In Stock, Qty 15

0

10

Kohler M-1039025

Screw
(Superseded to M-1039025-S)

$2.49

$

Usually ships in 2-5 days

0

11

1212602

Bracket-Oil Pump Relief

$

$

Not available

12

1208903

Spring-Oil Relief Valve

$

$

Not available

13

1246201

Piston-Oil Relief Valve

$

$

Not available

14

1220801

Body-Oil Relief Valve

$

$

Not available

15

5205002

Filter-Oil

$

$

Not available

16

1213601

Adapter-Oil Filter

$

$

Not available

17

Kohler X-75-1

Plug-SH 1/8
(Superseded to X-75-1-S)

$3.49

$

In Stock, only 1 left!

0

18

Kohler X-75-10

Plug
(Superseded to 25 139 57-S)

$2.49

$

In Stock, only 3 left!

0

19

1239301

Pump-Oil

$

$

Not available

20

1203204

"O"Ring-Pump Cover

$

$

Not available

21

1209602

Cover-Oil Pump

$

$

Not available

22

Kohler SM-0545016

Screw
(Superseded to SM-545016)

$2.49

$

In Stock, Qty 15

0

23

1203203

Seal-Crankshaft

$

$

Not available

24

Kohler SM-0839045

Screw

$

$

Not available

25

1219921

Pan-Oil

$

$

Not available

2575513

Kit-Oil Fill Cap

Note: Not illustrated

$

$

Not available
