30186 - Toro ProLine Walk-Behind Mower, Hydro Drive, 14hp (SN: 069000407 - 699999999) (1996) CARBURETOR Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 14hp

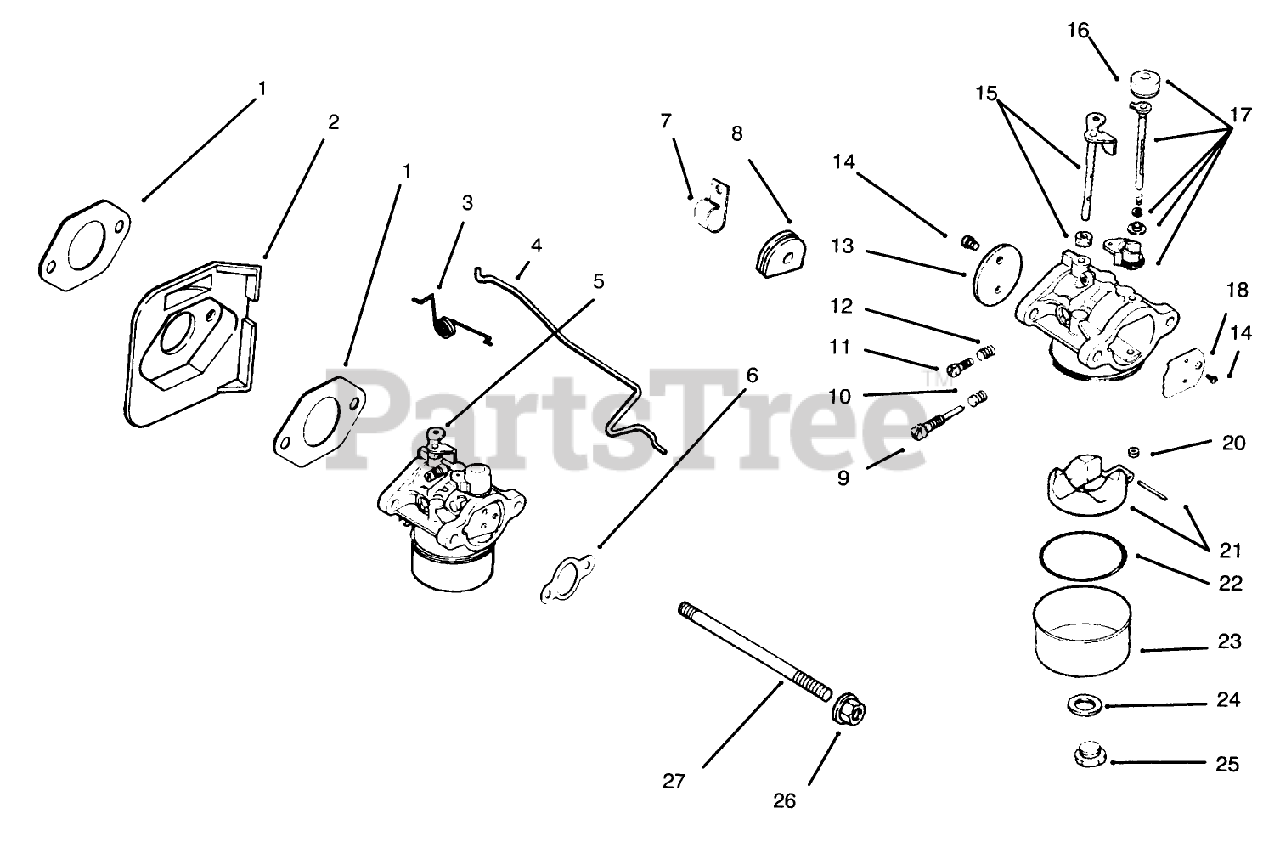

CARBURETOR Parts Diagram

  • Title

1

1204101

Gasket-Carburetor

$

$

Not available

2

1226501

Deflector-Heat

$

$

Not available

3

1208923

Spring Choke

$

$

Not available

4

1207907

Linkage Choke

$

$

Not available

5

1205347

Carburetor Assembly (Incl Ref. #9-25)

$

$

Not available

6

1204102

Gasket-Air Cleaner

$

$

Not available

7

Kohler 47 154 01

Clamp
(Superseded to 47 154 01-S)

$5.49

$

In Stock, only 4 left!

0

8

1231301

Grommet

$

$

Not available

9

1236805

Needle-Idle

$

$

Not available

10

1208909

Spring-Idle

$

$

Not available

11

1208604

Screw-Idle

$

$

Not available

12

1208909

Spring-Idle

$

$

Not available

13

1214603

Plate-Choke

$

$

Not available

14

2508627

Screw

$

$

Not available

15

1214409

Shaft-w/Lever & Seal

$

$

Not available

16

1217306

Cap-Choke Lever

$

$

Not available

17

1275708

Kit-Choke Repair (Incl. Ref.#16)

$

$

Not available

18

1214612

Plate-Choke

$

$

Not available

20

1233703

Jet-Main

$

$

Not available

21

1275702

Kit-Float

$

$

Not available

22

1204105

Gasket-Bowl

$

$

Not available

23

1210401

Bowl-Fuel

$

$

Not available

24

1204106

Gasket-Bowl

$

$

Not available

25

1208605

Screw-Bowl

$

$

Not available

26

Kohler M-0641060

Nut
(Superseded to M-641060)

$4.49

$

In Stock, Qty 6

0

27

Kohler M-0629122

Stud
(Superseded to M-629122)

$5.99

$

Usually ships in 2-5 days

0

1275703

Kit-Carburetor Repair

$

$

Not available

1285347

Kit-Carburetor (Incl Ref. #2-6)

$

$

Not available
