30186 - Toro ProLine Walk-Behind Mower, Hydro Drive, 14hp (SN: 059000001 - 059999999) (1995) STARTING SYSTEM-ENGINE KOHLER MODEL NO. CV14 S-1429 Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 14hp

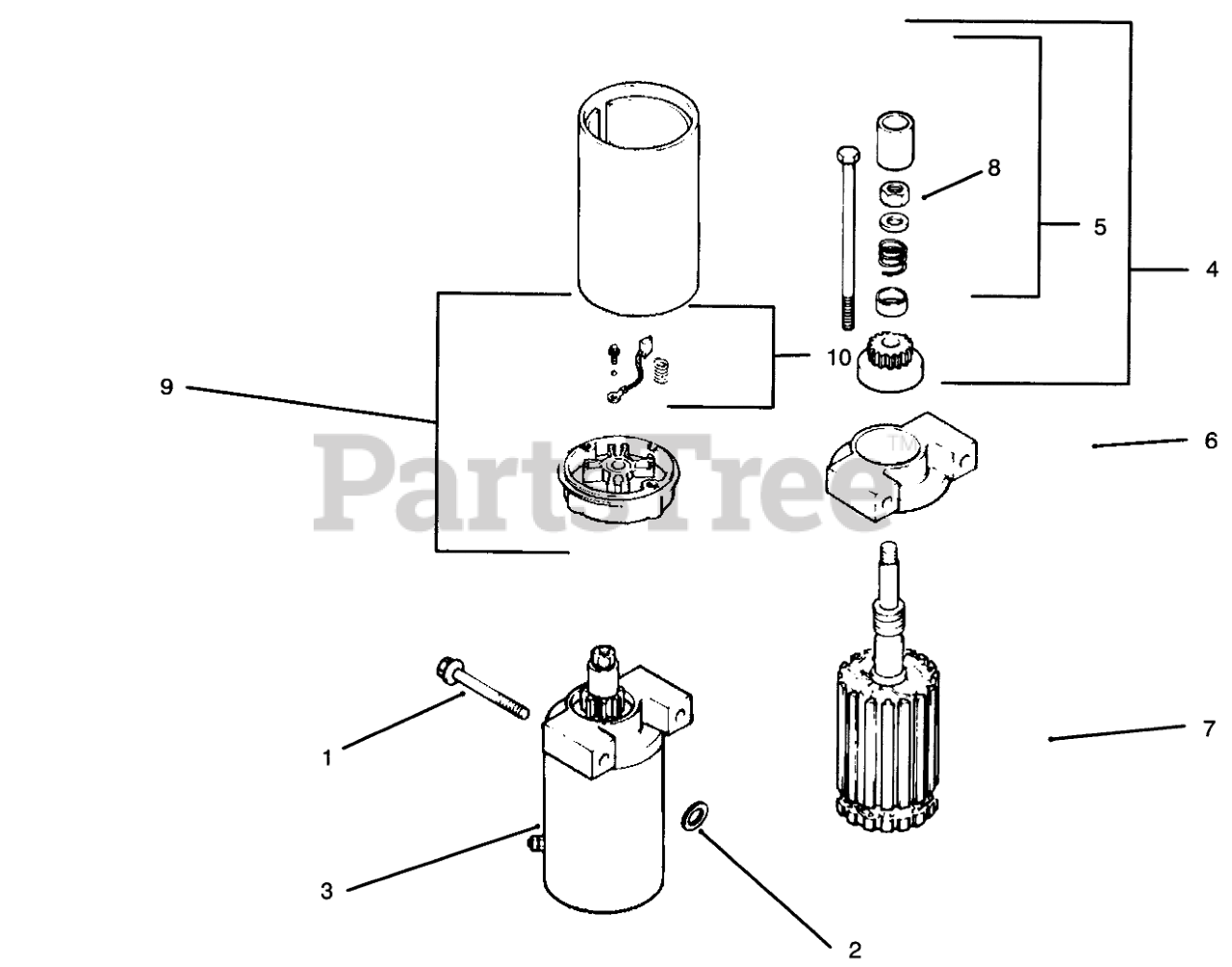

STARTING SYSTEM-ENGINE KOHLER MODEL NO. CV14 S-1429 Parts Diagram

  • Title
1

$

$

Currently unavailable

2

12_468_01

Washer

$

$

Not available

3

12_098_06

Starter (Incl. Ref. #4-10)

$

$

Not available

4

12_755_12

Kit-Drive (Incl. Ref. #5)

$

$

Not available

5

12_755_06

Kit

$

$

Not available

6

Toro 12_277_01

Cap-Drive End

$

$

Currently unavailable

7

12_170_02

Armature

$

$

Not available

8

12_086_02

Screw-Flange

$

$

Not available

9

Toro 12_243_03

Cap-Commutator End

$

$

Currently unavailable

10

52_755_15

Kit-Brush

$

$

Not available

52_357_01

Lubricant

Note: Not Illustrated.

$

$

Not available
