30186 - Toro ProLine Walk-Behind Mower, Hydro Drive, 14hp (SN: 059000001 - 059999999) (1995) FRAME, ENGINE, FUEL TANK, CLUTCH & COOLER ASS-Y Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 14hp

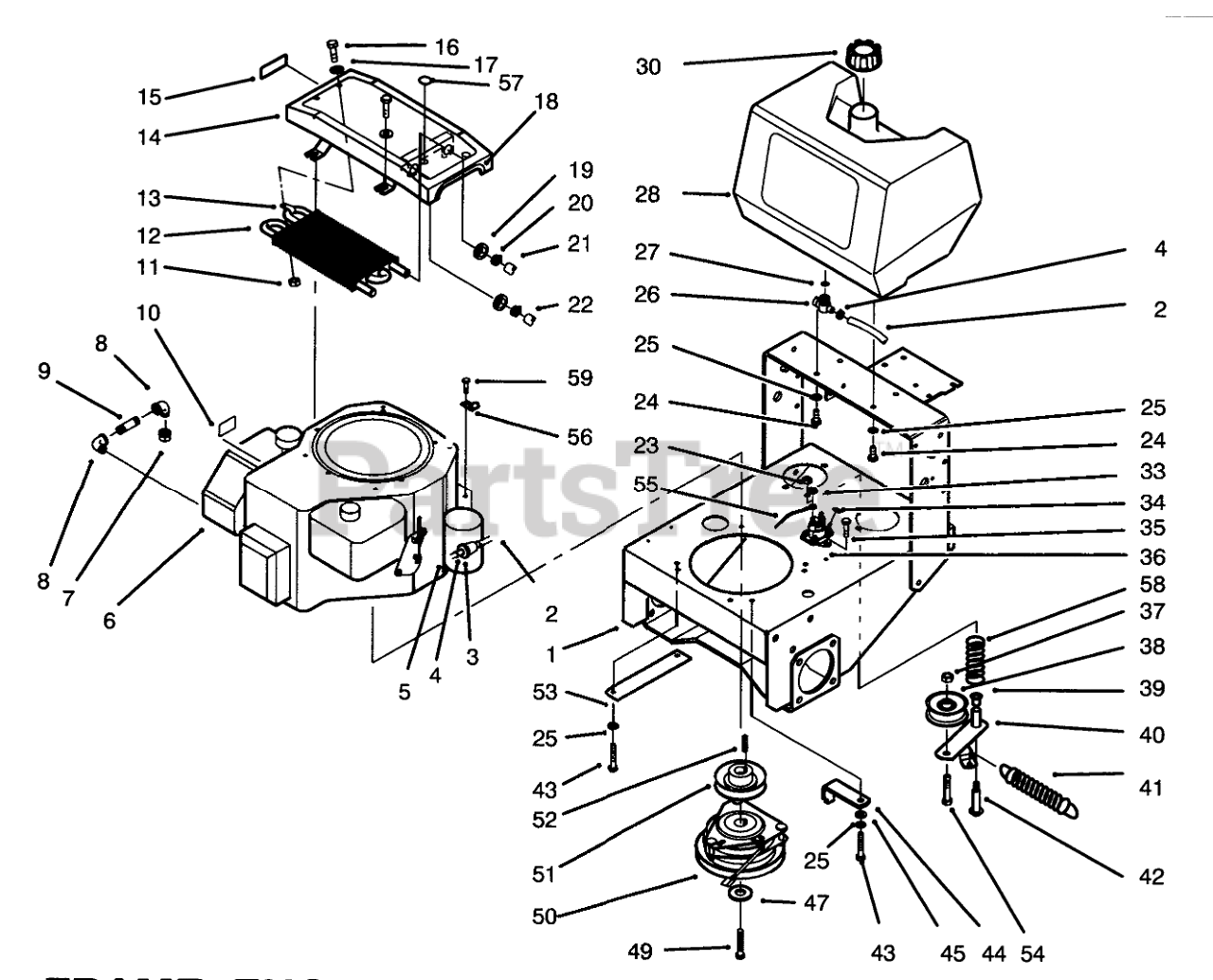

FRAME, ENGINE, FUEL TANK, CLUTCH & COOLER ASS-Y Parts Diagram

  • Title

1

Toro 82-3900

Frame
(Superseded to 94-9096-01)

$

$

Not available

2

Toro 47-2982

HOSE-FUEL
(Superseded to 110-4894)

$9.99

$

In Stock, only 1 left!

0

3

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, only 4 left!

0

4

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

5

Toro 47-2964

HOSE-FUEL
(Superseded to 110-4895)

$19.99

$

Usually ships in 3-6 days

0

6

Engine-14 H.P. Kohler

$

$

Not available

7

Toro 288-4

CAP-PIPE

$23.99

$

In Stock, only 1 left!

0

8

Toro 74-0950

ELBOW-STREET, 90 DEG

$

$

Not available

9

Toro 289-51

NIPPLE

$

$

Not available

10

Toro 63-8440

DECAL-SURFACE, HOT

$

$

Not available

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

12

Toro 82-4220

Cooler-Oil
(Superseded to 105-4609)

$

$

Not available

13

Toro 2412-134

CLAMP-R

$6.49

$

Usually ships in 3-6 days

0

14

Toro 82-4500

Mount-Cooler
(Superseded to 82-4500-03)

$417.99

$

Usually ships in 3-6 days

0

15

Toro 74-0490

DECAL-FUEL SHUT OFF

$

$

Not available

16

Toro 321-39

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

17

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 29-0642

TRIM-MOUNT, COOLER

$

$

Not available

19

Toro 240-9

GROMMET

$4.49

$

In Stock, only 1 left!

0

20

Toro 2412-136

CLAMP-HOSE

$

$

Not available

21

Toro 82-4193

HYDRAULIC HOSE ASM

$

$

Not available

22

Toro 82-4192

HYDRAULIC HOSE ASM

$179.99

$

Usually ships in 3-6 days

0

23

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

24

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

25

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

26

Toro 74-0510

VALVE-FUEL

$37.99

$

In Stock, only 1 left!

0

27

Toro 237-7

O-RING

$9.49

$

Usually ships in 3-6 days

0

28

Toro 82-8440

FUEL TANK

$527.99

$

Usually ships in 3-6 days

0

30

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 12

0

33

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

34

Toro 32149-8

NUT-KEPS

$1.49

$

Usually ships in 3-6 days

0

35

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

36

Toro 92-9845

Solenoid
(Superseded to 740207)

$34.99

$

In Stock, only 4 left!

0

37

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

38

Toro 62-4540

PULLEY

$92.99

$

In Stock, only 1 left!

0

39

Toro 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

40

Toro 86-4770

Idler Assembly (Incl. Ref. #39)

$107.99

$

Usually ships in 3-6 days

0

41

Toro 68-2190

SPRING

$74.99

$

In Stock, only 1 left!

0

42

Toro 27-6230

BOLT-WHEEL

$8.49

$

Usually ships in 3-6 days

0

43

Toro 57-6380

SCREW-HH
(Superseded to 33114-025)

$1.99

$

In Stock, Qty 20+

0

44

Toro 51-4540

Retainer-Clutch
(Superseded to 51-4540-03)

$21.99

$

In Stock, only 1 left!

0

47

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

49

Toro 57-6360

SCREW-CLUTCH

$4.99

$

Usually ships in 3-6 days

0

50

Toro 54-3200

CLUTCH/BRAKE
(Superseded to 105-2635)

$576.99

$

In Stock, only 1 left!

0

51

Toro 44-5940

Pulley

$151.99

$

Usually ships in 3-6 days

0

52

Toro 608006

KEY-SQUARE

$5.49

$

Usually ships in 3-6 days

0

53

Toro 74-0930

Guard-Pulley
(Superseded to 74-0930-01)

$

$

Not available

54

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

55

Toro 28-3891

WIRE-SOLENOID/STARTER

$28.99

$

Usually ships in 3-6 days

0

56

Toro 2412-106

CLAMP-R

$2.99

$

Usually ships in 3-6 days

0

57

Toro 2410-71

PLUG-PLASTIC

$

$

Not available

58

Toro 88-1880

SPRING-COMPRESSION

$49.99

$

Usually ships in 3-6 days

0

59

Toro 32144-19

SCREW-SHWH

$1.49

$

Usually ships in 3-6 days

0
