30186 - Toro ProLine Walk-Behind Mower, Hydro Drive, 14hp (SN: 059000001 - 059999999) (1995) ELECTRIC SCHEMATIC Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 14hp

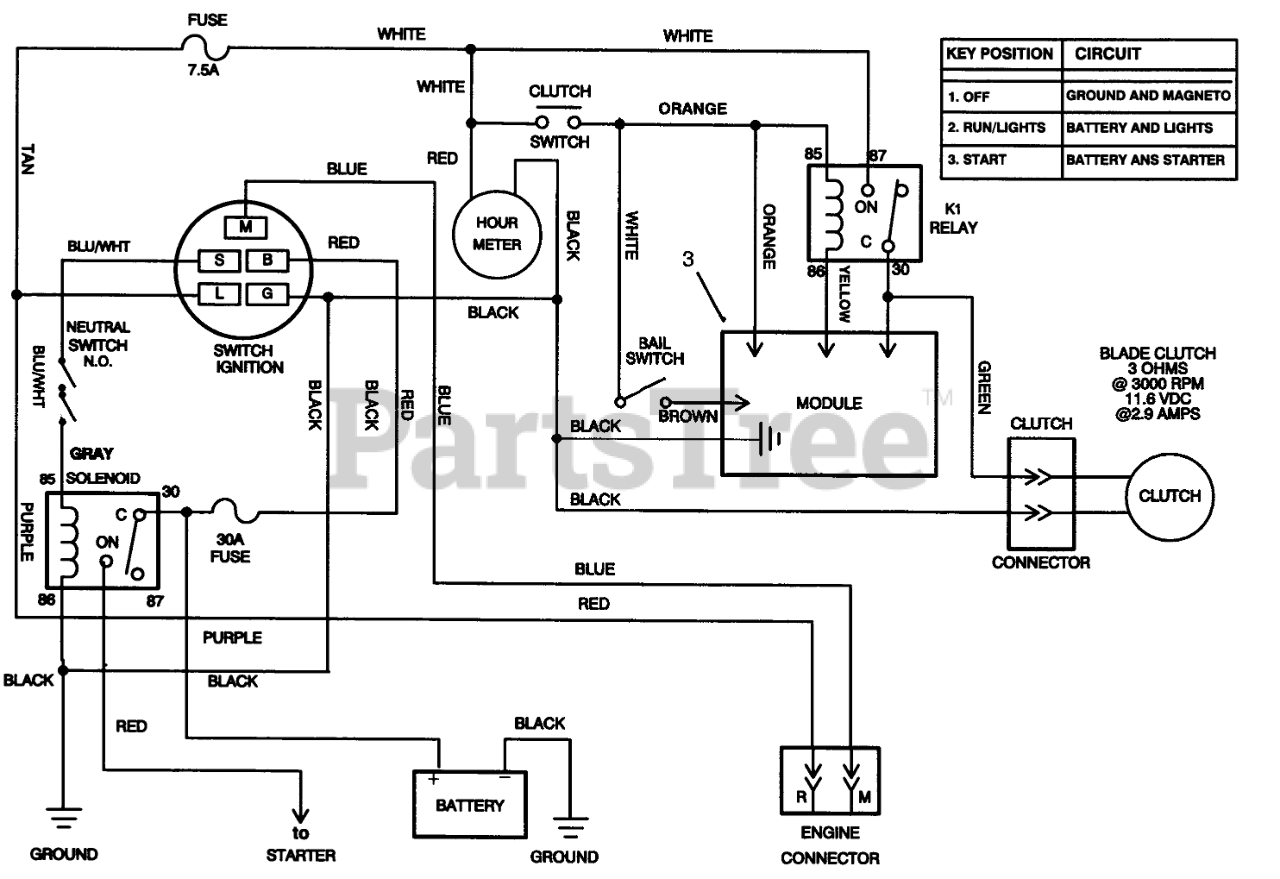

ELECTRIC SCHEMATIC Parts Diagram

  • Title
1

Toro 93-1188

WIRE HARNESS-14HP HYDRO

$

$

Not available

2

Toro 63-7590

RELAY

$83.99

$

Usually ships in 3-6 days

0

3

Toro 86-7910

Module
(Superseded to 94-5818)

$

$

Not available
