30185 - Toro ProLine Walk-Behind Mower, Hydro Drive, 14hp (SN: 039000001 - 039999999) (1993) ELECTRIC SCHEMATIC Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 14hp

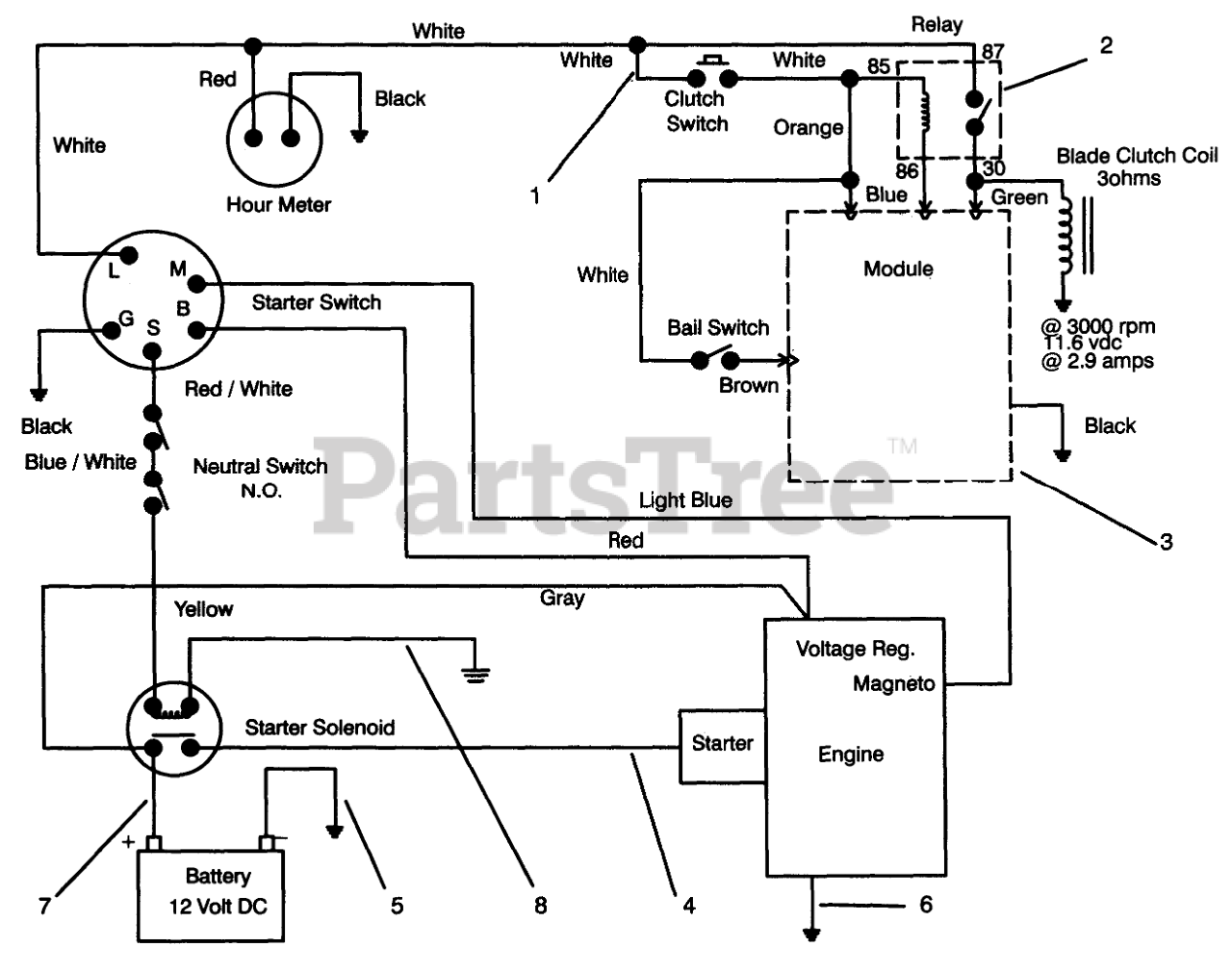

ELECTRIC SCHEMATIC Parts Diagram

  • Title
1

Toro 82-4511

WIRE HARNESS

$

$

Not available

2

Toro 63-7590

RELAY

$83.99

$

Usually ships in 3-6 days

0

3

Toro 86-7910

Module
(Superseded to 94-5818)

$

$

Not available

4

Toro 28-3891

WIRE-SOLENOID/STARTER

$28.99

$

Usually ships in 3-6 days

0

5

Toro 54-3093

CABLE-BATTERY, NEGATIVE

$36.99

$

Usually ships in 3-6 days

0

6

Toro 54-3091

WIRE ASM

$

$

Not available

7

Toro 28-3893

WIRE ASM

$

$

Not available

8

Toro 92-2361

WIRE ASSEMBLY

$9.49

$

Usually ships in 3-6 days

0
