30185 - Toro ProLine Walk-Behind Mower, Hydro Drive, 14hp (SN: 020000001 - 029999999) (1992) WHEEL ASSEMBLY & HYDRAULIC COMPONENTS Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 14hp

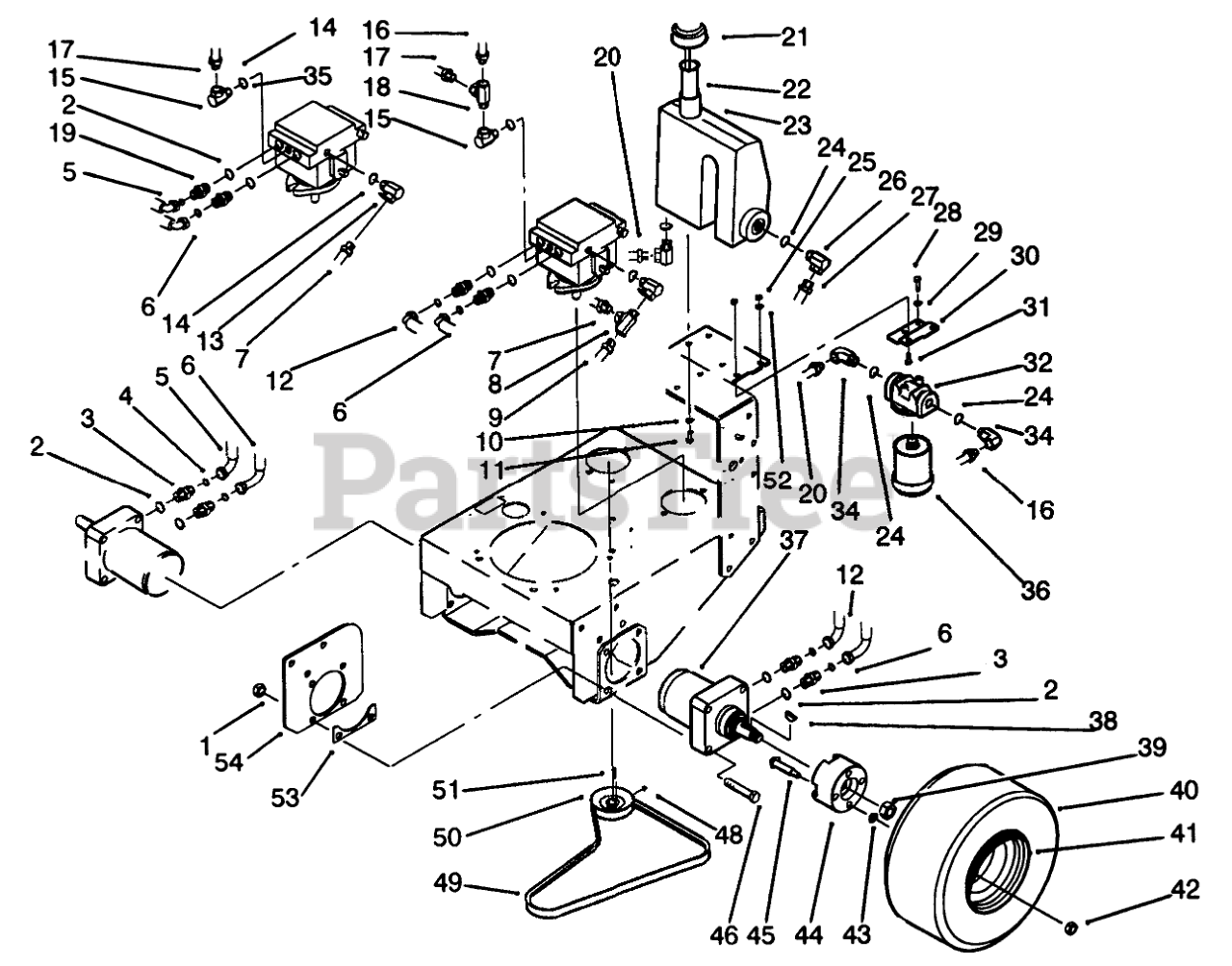

WHEEL ASSEMBLY & HYDRAULIC COMPONENTS Parts Diagram

  • Title
1

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

2

Toro 340-80

FITTING-STR

$77.99

$

Usually ships in 3-6 days

0

3

Toro 340-6

FITTING-STRAIGHT

$20.99

$

In Stock, only 2 left!

0

4

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

5

Toro 82-4540

HYDRAULIC HOSE ASM
(Superseded to 106-0824)

$

$

Not available

6

Toro 82-4550

HYDRAULIC HOSE ASM
(Superseded to 106-0825)

$

$

Not available

7

Toro 82-4201

HYD HOSE ASM

$

$

Not available

8

Toro 2815-15

FITTING-HYD, TEE

$

$

Not available

9

Toro 82-4192

HYDRAULIC HOSE ASM

$179.99

$

Usually ships in 3-6 days

0

10

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

11

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

12

Toro 82-4560

HYDRAULIC HOSE ASM
(Superseded to 106-0826)

$

$

Not available

13

Toro 354-115

FITTING-HYD, 90 DEG
(Superseded to 92-3508)

$

$

Not available

14

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

15

Toro 354-116

SWIVEL-PIPE, FEMALE

$

$

Not available

16

Toro 82-4180

HYDRAULIC HOSE ASM

$

$

Not available

17

Toro 82-4170

HYD HOSE ASM

$

$

Not available

18

Toro 2815-16

FITTING-HYD, TEE

$61.99

$

Usually ships in 3-6 days

0

19

Toro 340-4

FITTING-STRAIGHT

$12.99

$

In Stock, only 3 left!

0

20

Toro 82-4200

HYD HOSE ASM

$

$

Not available

21

Toro 76-0200

OIL CAP ASM

$83.99

$

In Stock, only 1 left!

0

22

Toro 29-0590

SCREEN-FILLER

$195.99

$

Usually ships in 3-6 days

0

23

Toro 82-3910

Reservoir-Oil
(Superseded to 95-1532)

$

$

Not available

24

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 8

0

25

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

26

Toro 354-118

FITTING-HYD, 90 DEG

$

$

Not available

27

Toro 82-4193

HYDRAULIC HOSE ASM

$

$

Not available

28

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

30

Toro 82-4140

FILTER MOUNTING BRKTR

$

$

Not available

31

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

32

Toro 54-0100

FILTER HD ASM

$311.99

$

Usually ships in 3-6 days

0

34

Toro 354-117

FITTING-HYD, 90 DEG

$

$

Not available

35

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

36

Toro 67-8110

CARTRIDGE-FILTER, OIL

$22.99

$

In Stock, only 3 left!

0

37

Toro 82-8230

WHEEL MOTOR ASM

$

$

Not available

38

Toro 3257-8

KEY-WOODRUFF

$5.49

$

In Stock, Qty 5

0

39

Toro 85-7310

Nut (Incl. w/Motor)

$27.99

$

Usually ships in 3-6 days

0

40

$104.99

$

Usually ships in 3-6 days

0

41

Toro 242-87

WHEEL

$

$

Not available

42

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

43

Toro 32112-17

PUSHNUT

$1.99

$

Usually ships in 3-6 days

0

44

Toro 82-3830

HUB-WHEEL

$508.99

$

Usually ships in 3-6 days

0

45

Toro 3213-8

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

46

Toro 325-11

SCREW-HH

$2.99

$

In Stock, Qty 7

0

48

Toro 3245-3

SCREW-SET, HS

$3.49

$

In Stock, only 4 left!

0

49

Toro 82-4110

BELT-V

$41.99

$

Usually ships in 3-6 days

0

50

Toro 82-4380

PUMP PULLEY

$

$

Not available

51

Toro 80-6090

KEY-PUMP

$9.99

$

Usually ships in 3-6 days

0

52

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

Toro 232-37

TUBE

Note: Not Illustrated.

$33.99

$

In Stock, only 1 left!

0

53

Toro 86-4740

Spacer
(Superseded to 86-4740-01)

$

$

Not available

54

Toro 86-4730

Plate-Frame
(Superseded to 86-4730-01)

$

$

Not available
