30185 - Toro ProLine Walk-Behind Mower, Hydro Drive, 14hp (SN: 020000001 - 029999999) (1992) OIL PAN/LUBRICATION-ENGINE KOHLER MODEL NO. CV14 S-1429 Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 14hp

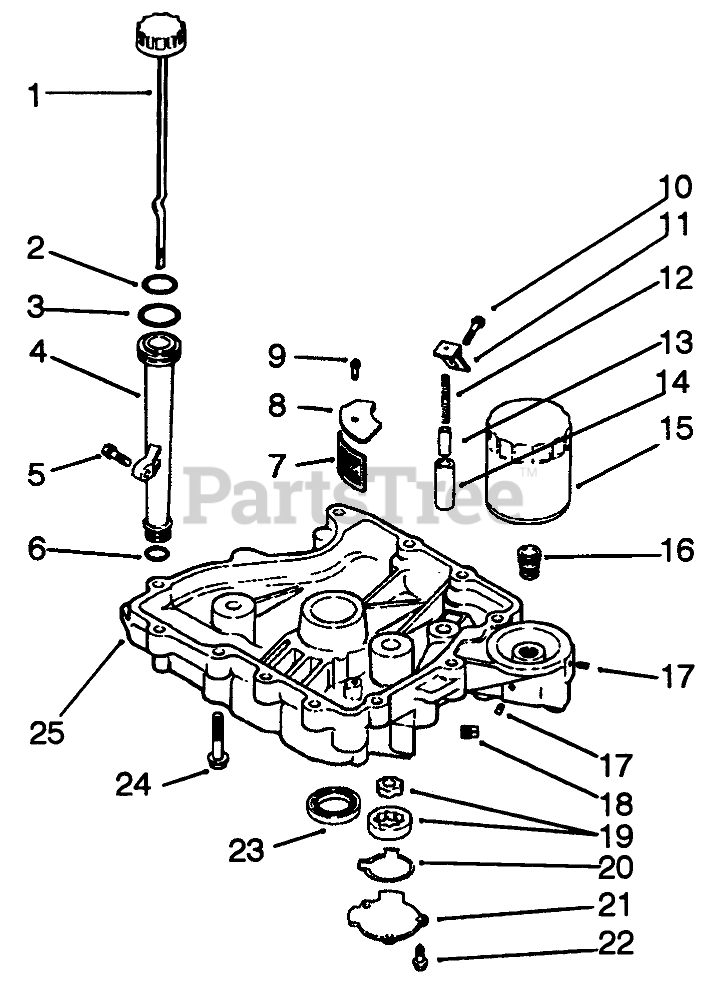

OIL PAN/LUBRICATION-ENGINE KOHLER MODEL NO. CV14 S-1429 Parts Diagram

  • Title

1

12_038_01

Dipstick INC 2-3

$

$

Not available

2

12_153_01

"O"Ring

$

$

Not available

3

12_153_02

"O"Ring-Upper Tube

$

$

Not available

4

12_123_04

Tube-Oil Fill

$

$

Not available

5

Kohler SM-0545020

Screw
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

6

12_153_01

"O"Ring

$

$

Not available

7

12_162_02

Screen-Oil Pickup

$

$

Not available

8

12_096_03

Cover-Oil Screen

$

$

Not available

9

Kohler SM-0545016

Screw
(Superseded to SM-545016)

$2.49

$

In Stock, Qty 15

0

10

Kohler SM-1039025

Screw
(Superseded to M-1051025)

$2.49

$

Usually ships in 2-5 days

0

11

12_126_02

Bracket-Relief Valve

$

$

Not available

12

12_089_03

Spring-Relief Valve

$

$

Not available

13

12_462_01

Piston-Relief Valve

$

$

Not available

14

12_208_01

Body-Relief Valve

$

$

Not available

15

52_050_02

Filler-Oil

$

$

Not available

16

12_136_01

Adapter-Oil Filler

$

$

Not available

17

Kohler X-75-1

Plug-SH 1/8
(Superseded to X-75-1-S)

$3.49

$

In Stock, only 1 left!

0

18

Kohler X-75-10

Plug
(Superseded to 25 139 57-S)

$2.49

$

In Stock, only 3 left!

0

19

12_393_01

Pump-Oil

$

$

Not available

20

12_032_04

"O" Ring-Oil Pump

$

$

Not available

21

12_096_02

Cover-Oil Pump

$

$

Not available

22

Kohler SM-0545016

Screw
(Superseded to SM-545016)

$2.49

$

In Stock, Qty 15

0

23

12_032_03

Seal-Oil

$

$

Not available

24

Kohler SM-0839045

Screw

$

$

Not available

25

Toro 12_199_09

Pan-Oil

$

$

Currently unavailable
