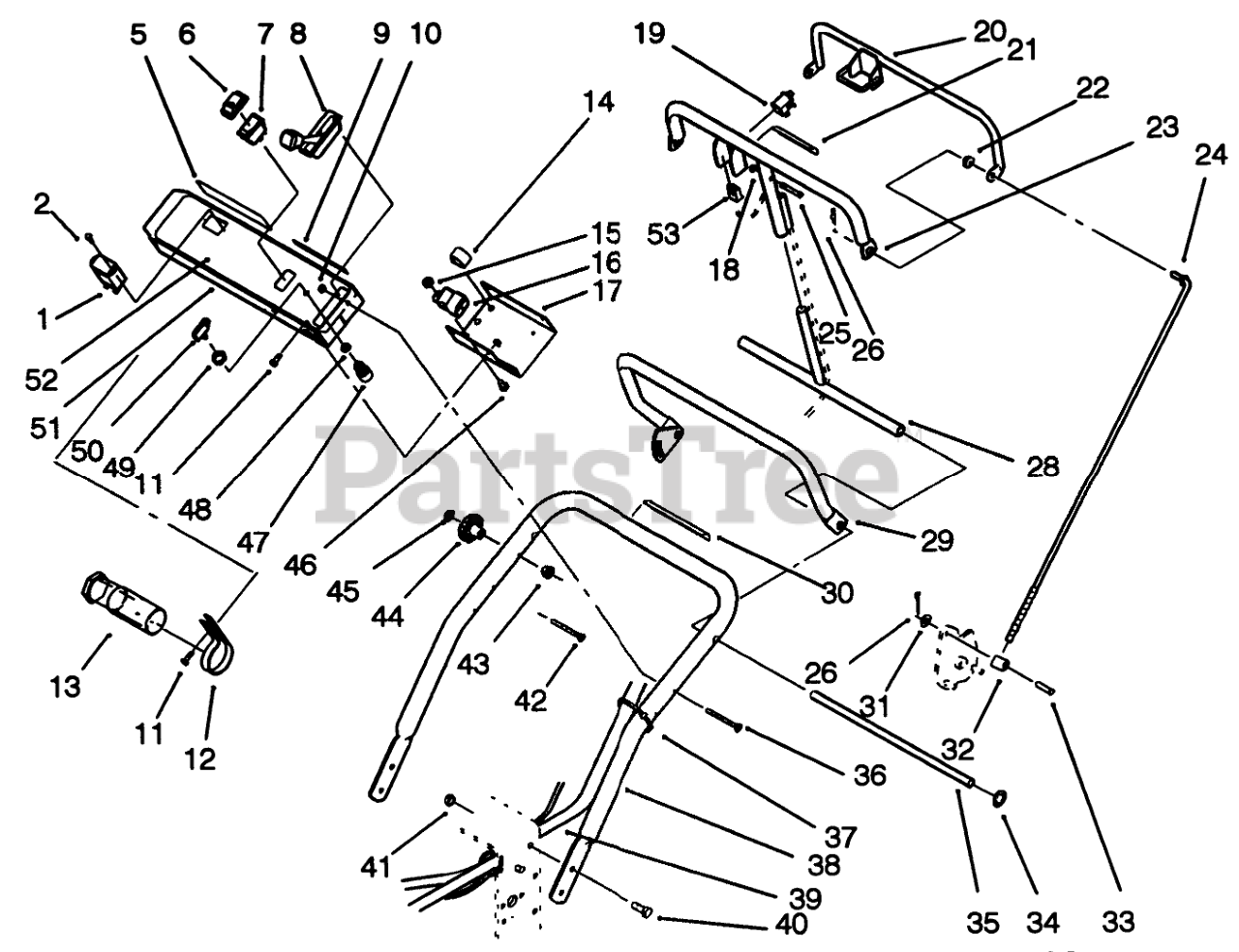

30185 - Toro ProLine Walk-Behind Mower, Hydro Drive, 14hp (SN: 020000001 - 029999999) (1992) HANDLE/CONTROL PANEL ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 14hp

HANDLE/CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 75-6820

HOURMETER
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

2

Toro 32144-18

SCREW-HWH

$2.49

$

Usually ships in 3-6 days

0

5

Toro 71-1280

DECAL-INSTRUCTION, SAFETY

$31.99

$

In Stock, Qty 13

0

6

Toro 82-3820

BOOT-SWITCH

$

$

Not available

7

Toro 82-2300

SWITCH
(Superseded to 121-8032)

$55.99

$

In Stock, only 3 left!

0

8

Toro 74-0630

CONTROL-THROTTLE

$126.99

$

Usually ships in 3-6 days

0

9

Toro 65-3090

DECAL-INSTRUCTION

$

$

Not available

10

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

12

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

13

Toro 74-0720

TUBE-MANUAL

$23.99

$

Usually ships in 3-6 days

0

14

Toro 86-7910

Module
(Superseded to 94-5818)

$

$

Not available

15

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

16

Toro 63-7590

RELAY

$83.99

$

Usually ships in 3-6 days

0

17

Toro 57-5811

Panel-Bottom
(Superseded to 93-1187-03)

$49.99

$

Usually ships in 3-6 days

0

18

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

19

Toro 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 10

0

20

Toro 82-7680

Bail
(Superseded to 82-7680-03)

$152.99

$

Usually ships in 3-6 days

0

21

Toro 82-2610

DECAL - CONTROL BAR

$

$

Not available

22

Toro 237-141

GROMMET-RUBBER

$2.99

$

In Stock, Qty 14

0

23

Toro 82-7690

Bar
(Superseded to 82-7690-03)

$281.99

$

Usually ships in 3-6 days

0

24

Toro 82-7631

ROD-CONTROL

$72.99

$

Usually ships in 3-6 days

0

25

Toro 32105-1

SCREW-SHH

$3.49

$

In Stock, Qty 7

0

26

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

28

Toro 82-3940

Pivot Control Assembly
(Superseded to 82-3940-03)

$

$

Not available

29

Toro 82-4300

REFERENCE HANDLE WA B

$165.99

$

Usually ships in 3-6 days

0

30

Toro 82-4590

DECAL-WARNING

$

$

Not available

31

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

32

Toro 74-0521

FITTING-ROD

$14.99

$

Usually ships in 3-6 days

0

33

Toro 283-6

PIN-CLEVIS

$1.99

$

In Stock, Qty 11

0

34

Toro 32151-80

NUT-PUSH-ON, CIRCULAR

$1.49

$

In Stock, Qty 7

0

35

Toro 74-0470

PIVOT ROD

$53.99

$

Usually ships in 3-6 days

0

36

Toro 32105-14

SCREW-SHH

$3.49

$

Usually ships in 3-6 days

0

37

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

38

Toro 67-6451

UPPER HANDLE R

$270.99

$

Usually ships in 3-6 days

0

39

Toro 82-4511

WIRE HARNESS

$

$

Not available

40

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

41

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

42

Toro 3230-26

SCREW-CARR

$4.49

$

Usually ships in 3-6 days

0

43

Toro 82-3840

SPACER

$3.99

$

In Stock, only 1 left!

0

44

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

45

Toro 32112-18

BOLT RETAINER

$

$

Not available

46

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

47

Toro 23-0660

SWITCH-STARTER

$23.99

$

In Stock, only 1 left!

0

48

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

49

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

50

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

51

Toro 82-2181

Panel-Control
(Superseded to 82-2181-03)

$

$

Not available

52

Toro 82-7721

DECAL - CONTROL PANEL

$

$

Not available

53

Toro 218-595

CONNECTOR-BODY

$

$

Not available
